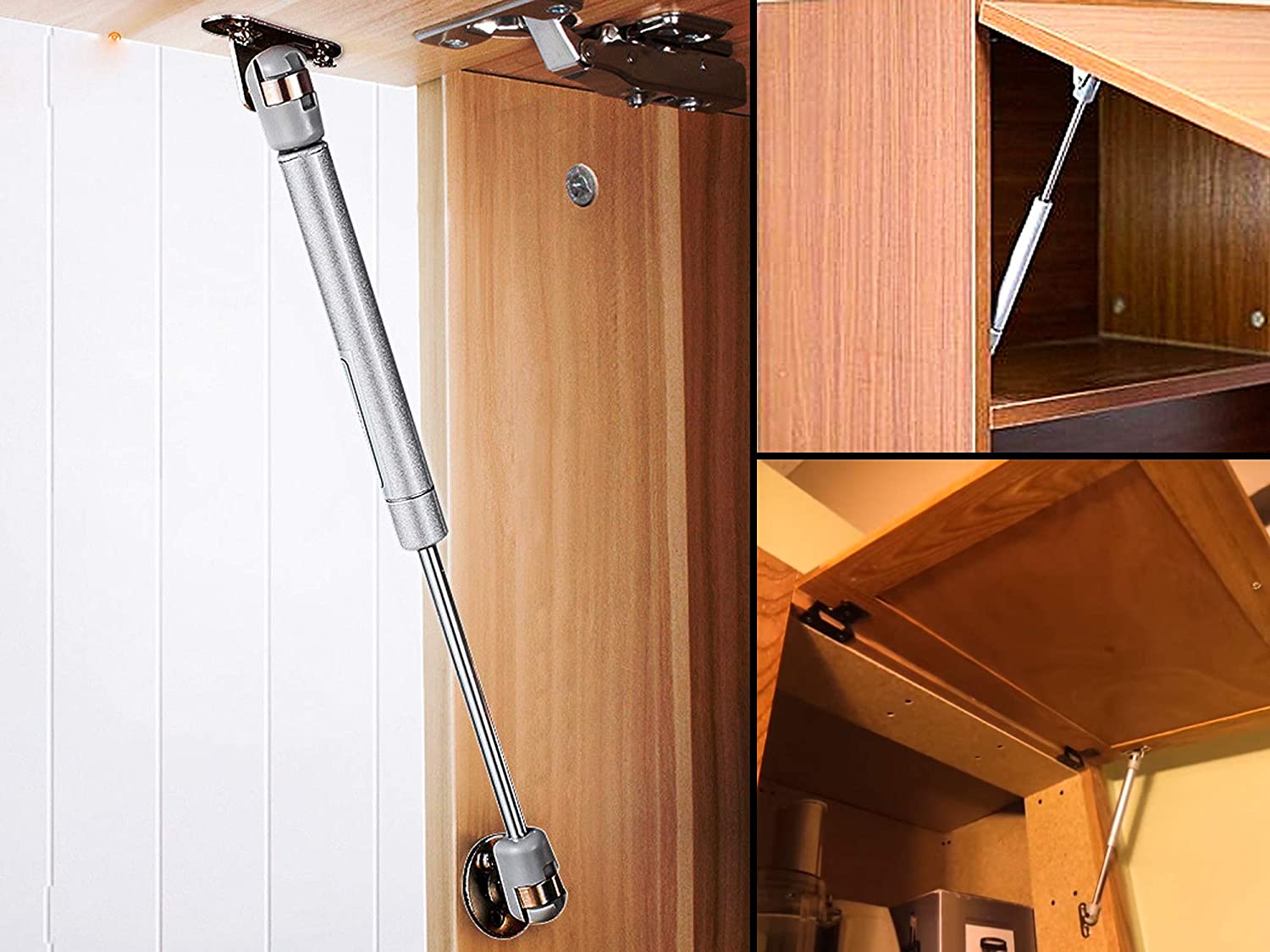

It silently supports the lifting system of cabinet doors,car trunk and office desks,but plays a crucial role in overland corners.The kitchen cabinet door slowly opens and silently stops are any position you want.The trunk of the car automatically rises with a gentle push,no longer requiring strenuous support;The office lift desk effortlessly adjusts up and down,providing a comfortable working experience.Behind all these smooth experiences,there is an inconspicuous but crucial component-free stop gas spring.

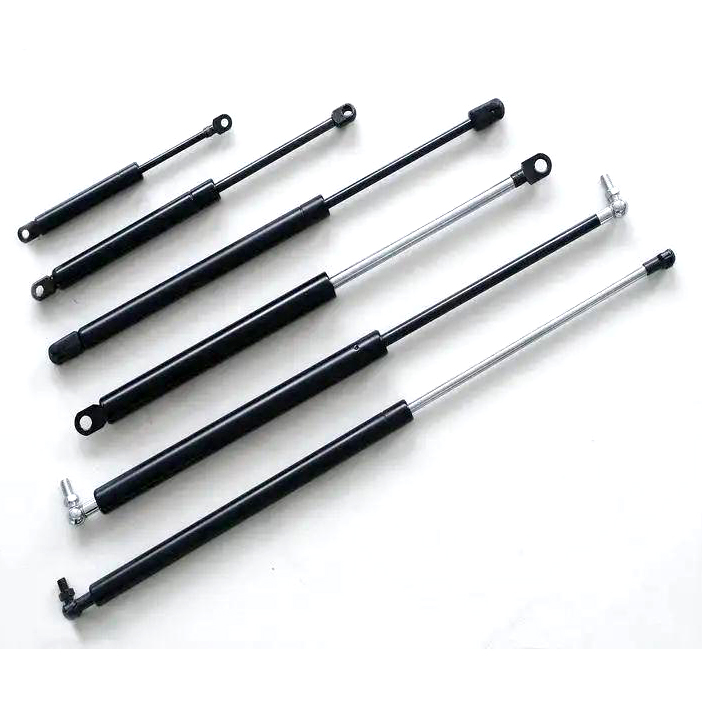

01 What is any stop gas spring?
Unlike traditional mechanical springs,it can stay at any position of its travel,which is the origin of the name"free stop".This characteristic
Unlike traditional mechanical springs, it can stay at any position of its travel, which is the origin of the name "stop at will". This characteristic makes it an ideal choice for various furniture, automobiles, and industrial equipment.
When we enjoy the quiet and smooth opening experience of cabinet doors, we rarely think of this small cylinder working behind us. It is like an tireless assistant, providing just the right amount of support every time it is needed.
02 Precise installation: find the correct posture, perfect support
Installing a random gas stop spring is not an arbitrary task, it requires precision and attention to detail. Incorrect installation not only affects performance, but may also lead to safety hazards.
The installation direction is crucial. Most random gas stop springs are labeled with the correct installation direction (usually with one end of the piston rod facing downwards). This design is not a suggestion, but a rule that must be followed. Reverse installation can cause premature wear of seals, greatly reducing their service life.
The installation angle is equally important.
The installation angle of the gas spring directly affects its supporting force. Generally speaking, the optimal installation angle is between 15-30 degrees, which can provide the most effective support and reduce end wear.
03 Careful Care: The Secret to Extending Service Life
Even if installed correctly, the gas stop spring needs regular maintenance to ensure long-term performance. Lack of maintenance can lead to weakened support, uneven movement, or even complete failure.
Regular cleaning of the piston rod is the primary maintenance task. The tiny pollutants on the surface of the piston rod will be carried into the cylinder body as it moves, accelerating the wear of the seals. It is recommended to gently wipe the surface of the piston rod with a soft cloth and mild cleaner every three months.
Avoid extreme temperature environments. The gas stop spring is very sensitive to temperature, and temperatures that are too high or too low can affect the internal pressure, thereby changing its performance characteristics.
Try to avoid installation near heat sources or in extreme outdoor environments. Pay attention to the frequency and load of use. Each gas spring has a designed service life (usually 10000-20000 cycles), beyond which performance will naturally deteriorate. At the same time, do not let it support a weight exceeding its rated load, otherwise it may cause permanent damage.
According to statistics, a randomly installed and maintained gas stop spring can have a service life of up to 5-8 years, which is nearly twice the lifespan of products that neglect maintenance. Every time it silently supports the cabinet door and smoothly adjusts the desktop height, it is the joint result of precision engineering and reasonable maintenance.
Guangzhou Tieying Spring Technology Co.,Ltd set up in 2002,focusing on gas spring production for more than 20 years,with 20W durability test,salt spray test,CE,ROHS, IATF 16949.Tieying products includes Compression Gas Spring, Damper, Locking Gas Spring, Free Stop Gas Spring and Tension Gas Spring. Stainless steel 3 0 4 and 3 1 6 can be made. Our gas spring use top seamless steel and Germany Anti-wear hydraulic oil, up to 9 6 hours salt spray testing, - 4 0℃~80 ℃ Operating temperature, S G S verify 1 5 0,0 0 0 cycles use life Durability test.
