Stabilus Lift Support Strut

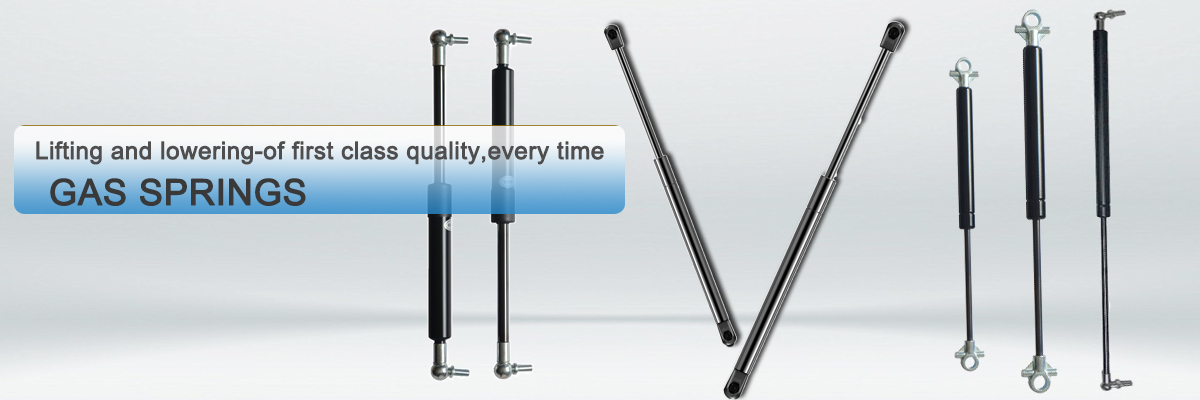

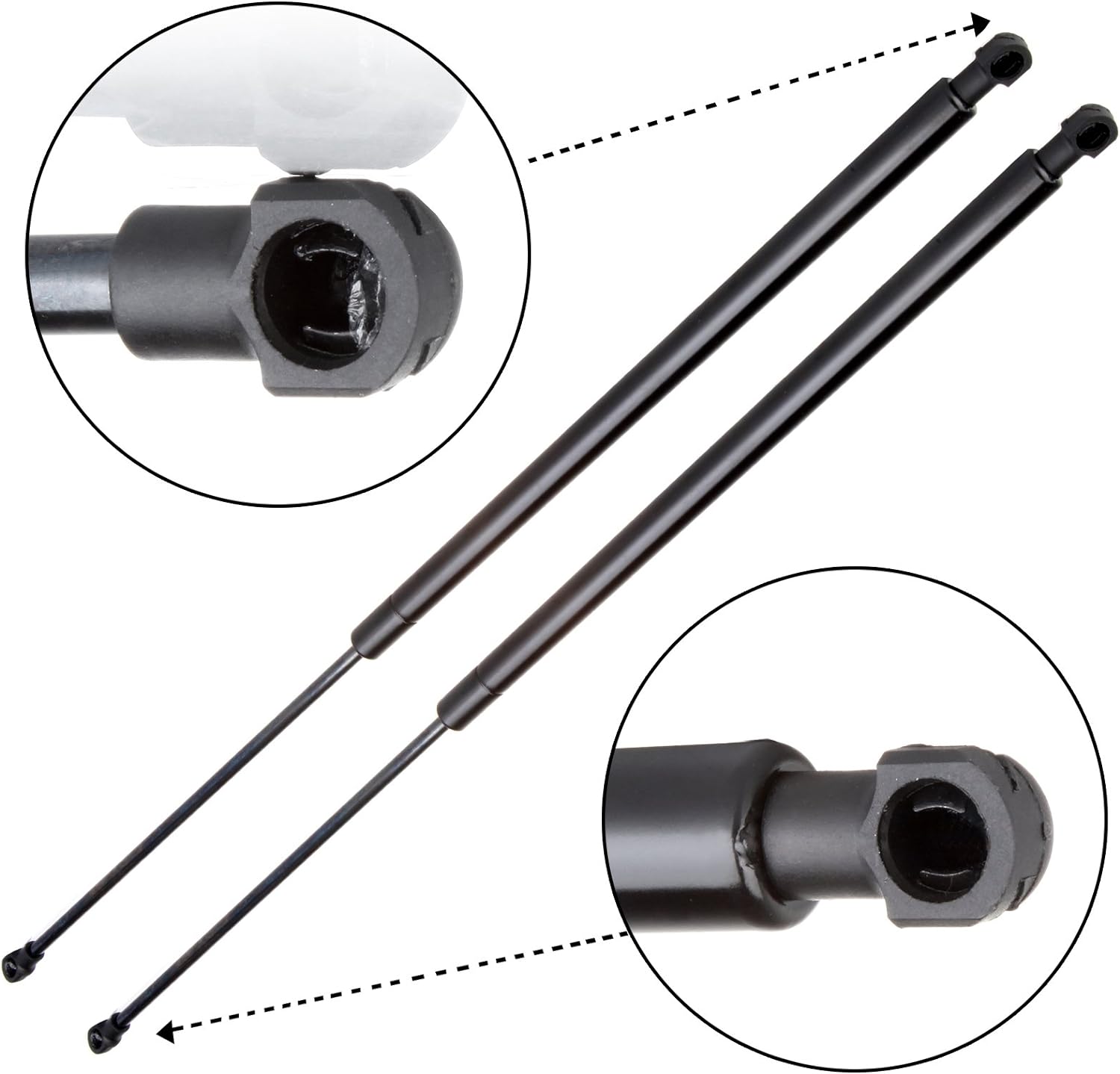

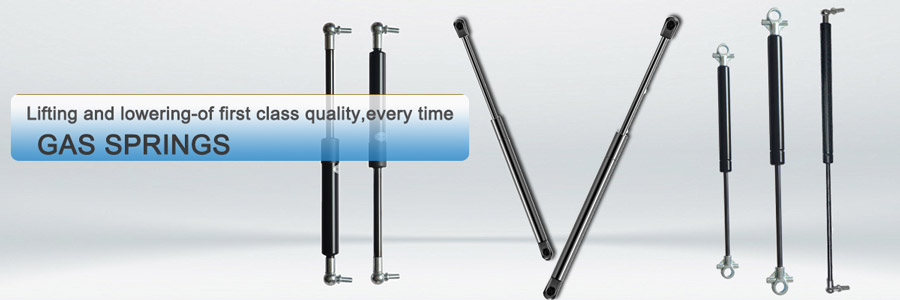

Do you have an application that requires the controlled lifting or lowering of loads? If so, then LIFT-O-MAT series Stabilus gas springs, which show their strength in countless products every single day, are just the solution you need.
LIFT-O-MAT gas springs provide force assistance to ensure optimal counterbalancing. They make light work out of opening and closing panels and hoods. Their exceptional damping characteristics guarantee particularly safe and user-friendly component travel.
Gas springs from the product line – or from our creative minds
Are you also looking for a convenient gas spring solution for your application? We give you two ways to find it: quick, convenient selection from our portfolio via our configurator, or a custom solution. Our experience is your benefit in either case. After all, we’ve been a renowned development partner of the automotive industry for decades. Plus, we adapt this knowledge to suit a variety of other industrial applications.
In practice: forces and strengths
The LIFT-O-MAT gas spring is a hydropneumatic adjusting element consisting of a pressure tube, a piston rod with piston, and the corresponding end fitting. Nitrogen gas inside the spring keeps constant pressure against the piston surfaces of different sizes. This creates a force in the extension direction. Filling pressure is customized so that the force is perfect for your application’s needs.
These gas springs present advantages you don’t get with mechanical springs. Specifically, gas springs have a defined speed profile and outstanding damping capacities that enable even heavy panels and doors to be operated with ease. Simple installation, compact dimensions, a flat spring characteristic curve, and a huge range of possible strengths and end fittings round off the package of benefits that comes with a gas spring.
*broad selection of sizes, strengths, and end fittings
*compact design, small space requirement
*simple and quick installation
*flat spring characteristic curve (i.e., low increase in force even with strong forces or long strokes)
*linear, progressive, or digressive spring characteristic curve
*locking in any position (depending on product)
*end-position locking (extended and compressed)
*ability to integrate additional functions such as electrical switch, stop function, etc.

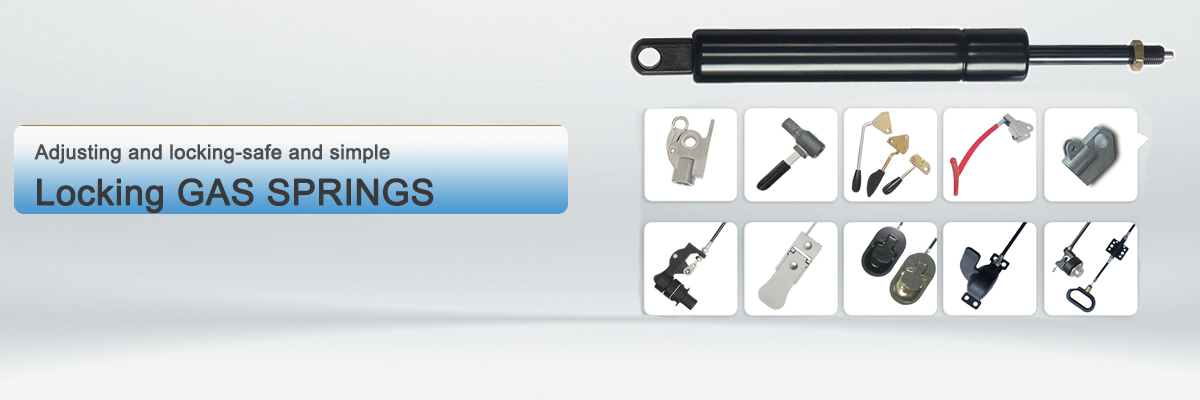

Need to provide easy operation of heavy panels and covers? Or perhaps ergonomic adjustment of chairs and tables to suit different users’ statures? Stabilus locking gas springs ensure optimal counterbalancing at all times in applications like these. Smooth travel during opening, closing, and positioning are right there in the operator’s hands.

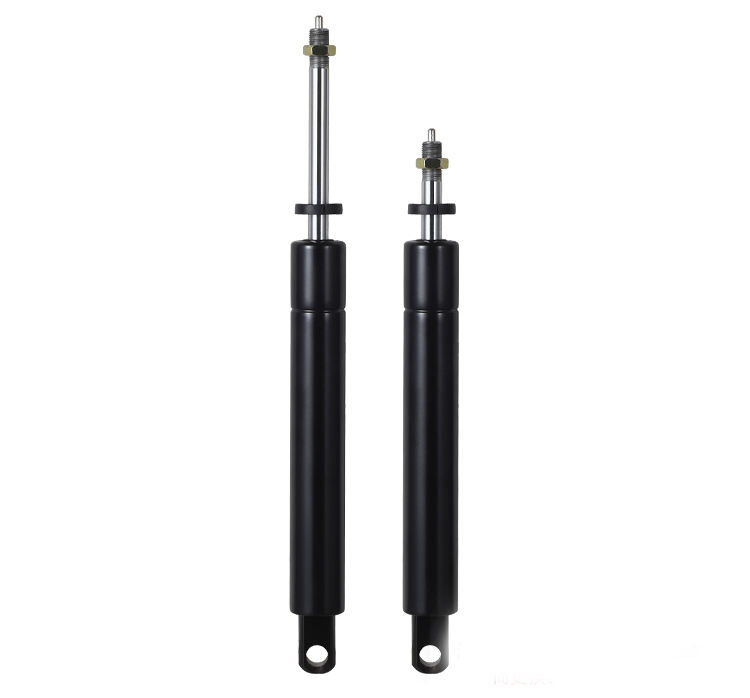

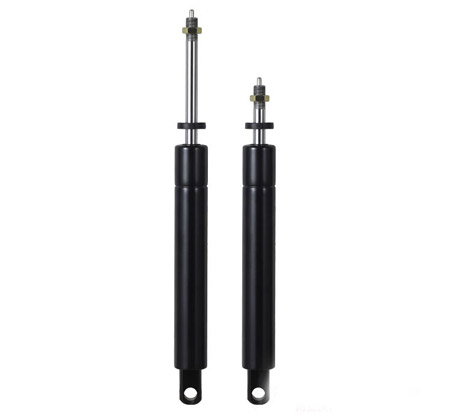

Our BLOC-O-LIFT series locking gas springs can also easily be locked in any position. This functionality can be designed as rigid or elastic and to be effective in the push or pull direction.
For any set of installation conditions – and every single need
Our standard product line contains a broad selection of locking gas springs. That means it’s sure to have the right product for any set of installation conditions.
However, if you need a custom product, our years of experience as a pioneer in gas spring production make us the perfect partner in development. We work together with you to find the right solution for your individual specifications.
In practice: no feats of strength – because the power is already there
BLOC-O-LIFT locking gas springs have a special piston valve system that separates the two piston chambers in the spring. This enables locking in any position without excessive physical effort. The gas spring locks when the valve tappet is released from the outside and the connection between the two pressure chambers is interrupted.
This is how locking gas springs from Stabilus hold even heavy loads in the desired position reliably. When the valve is open, the linear spring characteristics of the BLOC-O-LIFT ensure a uniform increase in force through the entire range of movement.
The Advantages:
*variable positioning with elastic or rigid locking
*optimal counterbalancing during lifting, lowering, opening, and closing
*locking functionality in compressed or extended position
*orientation-specific or orientation-independent installation depending on type
*flat spring characteristic curve for low increase in force even with strong forces and long strokes
*linear, progressive, or digressive spring characteristic curve
*mechanical release systems, including with particularly short release path for extra-easy operation
*broad selection of sizes, strengths, and end fittings
*compact design, small space requirement
*maintenance free, even with demanding load conditions and long service life
*high-quality products that meet the stipulations of ISO 9001 and IATF 16949 standard

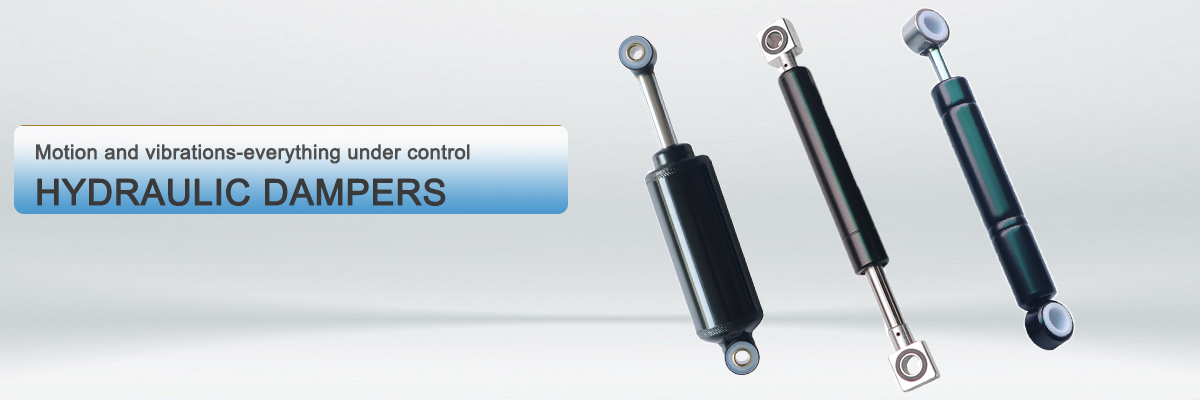

Vehicle manufacturing, systems engineering, industrial applications, the furniture industry: TIEYING GAS SPRING DAMPERS are everywhere motion and vibrations need to be kept under control. These needs are guaranteed to be met through our years of experience in hydraulic dampers, which have a sophisticated design and uncompromising quality.
From simple to sophisticated – and we’re happy to make it custom
Our hydraulic dampers cover a broad spectrum of applications thanks to the diversity of their product portfolios. For instance, simple motion dampers are there to provide comfortable and cushioned opening and closing of panels. Vibration dampers, on the other hand, are a key component in preventing damage to machinery and maintaining the steady workflow that protects equipment in the applications they’re part of.
And what if your application needs a special solution? Just contact us – we’ll work together to find the perfect solution, no matter how complex or new and nuanced the application.
Feature:
-Extensive portfolio of hydraulic dampers with broad selection of dimensions and end fittings.
-Compact design, small space requirement.
-Maintenance free, even with demanding load conditions and long service life.
-High-quality products with certificates of ISO 9001 and IATF /TS 16949 standard.
