TSC Gas Lift Supports
The standard Gas Springs are often referred to as Gas Shocks, Gas Pistons, or Gas Struts.
Our gas springs are the perfect product to help control the motion of your lid, door or cover.
The standard gas spring sits as standard in every tailgate of a car. Each gas spring is pressurized with nitrogen gas and contains a small amount of lubricating oil within the cylinder.
Gas springs are used when masses or weights are to be raised, lowered or held without much effort. Unloaded, this spring is always extended. When a force greater than the compressed nitrogen fill pressure is applied, the gas spring pushes together.
Custom Gas Springs, Pistons, Struts are available.Please contact us if your requirements are for extended lengths and stroke sizes not listed here.
•Force (F1)10 – 400 N
•Progression 27%
•Piston rod diameter 6 mm
•Cylinder tube diameter 15 mm
•Piston rod connection M6- M5
•Cylinder connection M6 – M5
•Material :Steel/Stainless steel 304/Stainless steel 316
•Operating temperature :
•Low temperature – When used for long periods at temperatures of -20 °C or colder
•Standard -20 – +80 ºC
•High temperature seal – For prolonged use at temperatures above 80C
•Force (F1)10 – 400 N
•Progression 27%
•Piston rod diameter 6 mm
•Cylinder tube diameter 15 mm
•Piston rod connection M6- M5
•Cylinder connection M6 – M5
•Material :Steel/Stainless steel 304/Stainless steel 316
•Operating temperature :
•Low temperature – When used for long periods at temperatures of -20 °C or colder
•Standard -20 – +80 ºC
•High temperature seal – For prolonged use at temperatures above 80C
•Force (F1)10 – 400 N
•Progression 11%
•Diameter piston rod 6 mm
•Diameter Cylinder 22 mm
•Piston rod connection M6- M5
•Cylinder connection M8 – M6
•Material :Steel/Stainless steel 304/Stainless steel 316
•Operating temperature :
•Low temperature – When used for long periods at temperatures of -20 °C or colder
•Standard -20 – +80 ºC
•High temperature seal – For prolonged use at temperatures above 80C
•Force (F1)30 – 700 N
•Progression 33%
•Diameter Piston Rod 8 mm
•Diameter Cylinder 19 mm
•Piston Rod connection M8- M6
•Cylinder connection M8 – M6
•Material :Steel/Stainless steel 304/Stainless steel 316
•Operating temperature :
•Low temperature – When used for long periods at temperatures of -20 °C or colder
•Standard -20 – +80 ºC
•High temperature seal – For prolonged use at temperatures above 80C
•Force (F1)30 – 700 N
•Progression 33%
•Diameter Piston Rod 8 mm
•Diameter Cylinder 19 mm
•Piston Rod connection M8- M6
•Cylinder connection M8 – M6
•Material :Steel/Stainless steel 304/Stainless steel 316
•Operating temperature :
•Low temperature – When used for long periods at temperatures of -20 °C or colder
•Standard -20 – +80 ºC
•High temperature seal – For prolonged use at temperatures above 80C
•Force (F1)30 – 700 N
•Progression 13%
•Diameter Piston Rod 8 mm
•Diameter Cylinder 28 mm
•Piston Rod connection M8- M6
•Cylinder connection M10 – M8
•Material :Steel/Stainless steel 304/Stainless steel 316
•Operating temperature :
•Low temperature – When used for long periods at temperatures of -20 °C or colder
•Standard -20 – +80 ºC
•High temperature seal – For prolonged use at temperatures above 80C
•Force (F1) 50 – 1200 N
•Progression 39%
•Diameter Piston Rod 10 mm
•Diameter Cylinder 22 mm
•Piston Rod connection M8- M6
•Cylinder connection M8 – M6
•Material :Steel/Stainless steel 304/Stainless steel 316
•Operating temperature :
•Low temperature – When used for long periods at temperatures of -20 °C or colder
•Standard -20 – +80 ºC
•High temperature seal – For prolonged use at temperatures above 80C
•Force (F1) 50 – 2600 N
•Progression 21%
•Diameter Piston Rod 10 mm
•Diameter Cylinder 28 mm
•Piston Rod connection M10- M8
•Cylinder connection M10 – M8
•Material :Steel/Stainless steel 304/Stainless steel 316
•Operating temperature :
•Low temperature – When used for long periods at temperatures of -20 °C or colder
•Standard -20 – +80 ºC
•High temperature seal – For prolonged use at temperatures above 80C
•Force (F1) 200 – 5000 N
•Progression 8%
•Diameter Piston Rod 10 mm
•Diameter Cylinder 40 mm
•Piston Rod connection M10- M8
•Cylinder connection M14 – M1,5
•Material :Steel/Stainless steel 304/Stainless steel 316
•Operating temperature :
•Low temperature – When used for long periods at temperatures of -20 °C or colder
•Standard -20 – +80 ºC
•High temperature seal – For prolonged use at temperatures above 80C
•Force (F1) 100 – 2600 N
•Progression 333%
•Diameter Piston Rod 12 mm
•Diameter Cylinder 28 mm
•Piston Rod connection M10- M8
•Cylinder connection M10 – M8
•Material :Steel/Stainless steel 304/Stainless steel 316
•Operating system :
•Low temperature – When used for long periods at temperatures of -20 °C or colder
•Standard -20 – +80 ºC
•High temperature seal – For prolonged use at temperatures above 80C
•Force (F1) 200 – 5000 N
•Progression 13%
•Diameter Piston Rod 12 mm
•Diameter Cylinder 40 mm
•Piston Rod connection M10- M8
•Cylinder connection M14 – M1,5
•Material :Steel/Stainless steel 304/Stainless steel 316
•Operating temperature :
•Low temperature – When used for long periods at temperatures of -20 °C or colder
•Standard -20 – +80 ºC
•High temperature seal – For prolonged use at temperatures above 80C
•Force (F1) 150 – 2600 N
•Progression 52%
•Diameter Piston Rod 14 mm
•Diameter Cylinder 28 mm
•Piston Rod connection M10- M8
•Cylinder connection M10 – M8
•Material :Steel/Stainless steel 304/Stainless steel 316
•Operating temperature :
•Low temperature – When used for long periods at temperatures of -20 °C or colder
•Standard -20 – +80 ºC
•High temperature seal – For prolonged use at temperatures above 80C
•Force (F1) 200 – 5000 N
•Progression 18%
•Diameter Piston Rod 14 mm
•Diameter Cylinder 40 mm
•Piston Rod connection M10- M8
•Cylinder connection M14 – M1,5
•Material :Steel/Stainless steel 304/Stainless steel 316
•Operating temperature :
•Low temperature – When used for long periods at temperatures of -20 °C or colder
•Standard -20 – +80 ºC
•High temperature seal – For prolonged use at temperatures above 80C
•Force (F1) 200 – 5000 NProgression 45%
•Diameter Piston Rod 20 mm
•Diameter Cylinder 40 mm
•Piston Rod connection M14- M1,5
•Cylinder connection M14 – M1,5
•Material :Steel/Stainless steel 304/Stainless steel 316
•Operating temperature :
•Low temperature – When used for long periods at temperatures of -20 °C or colder
•Standard -20 – +80 ºC
•High temperature seal – For prolonged use at temperatures above 80C

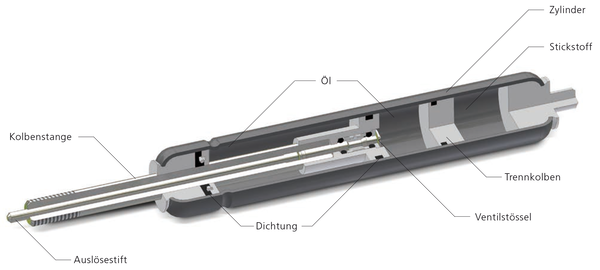

This spring basically works in the same way as a gas spring, but can be blocked continuously in any position.Forces: from 150 Newton (= 15 Kg) to 1200 Newton (= 120 Kg) Stroke length: from 20 mm to 500 mm.

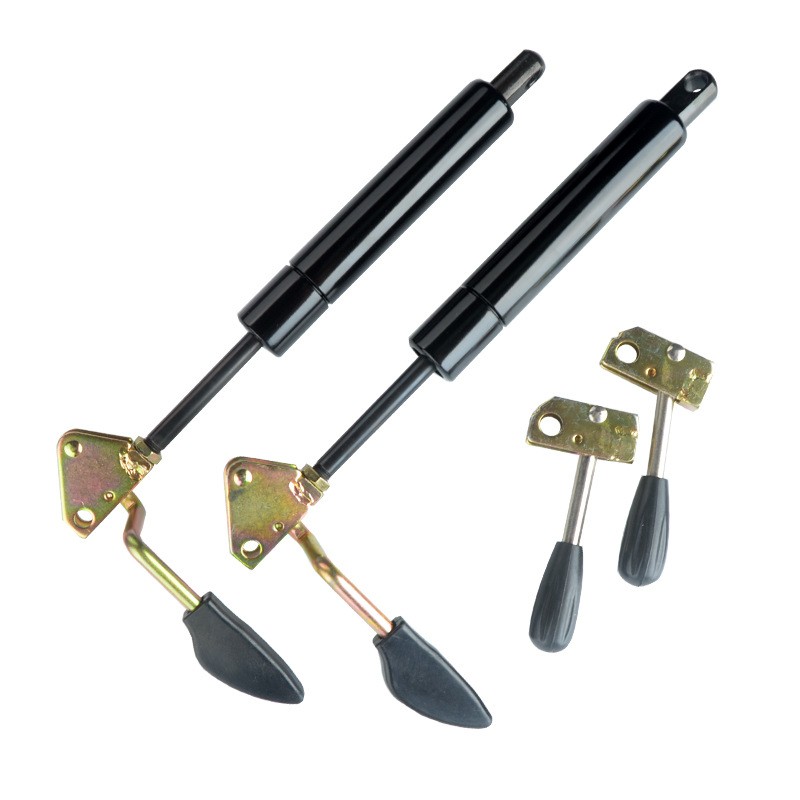

Lockable Gas Spring / Blocking can be delivered in the following variants:

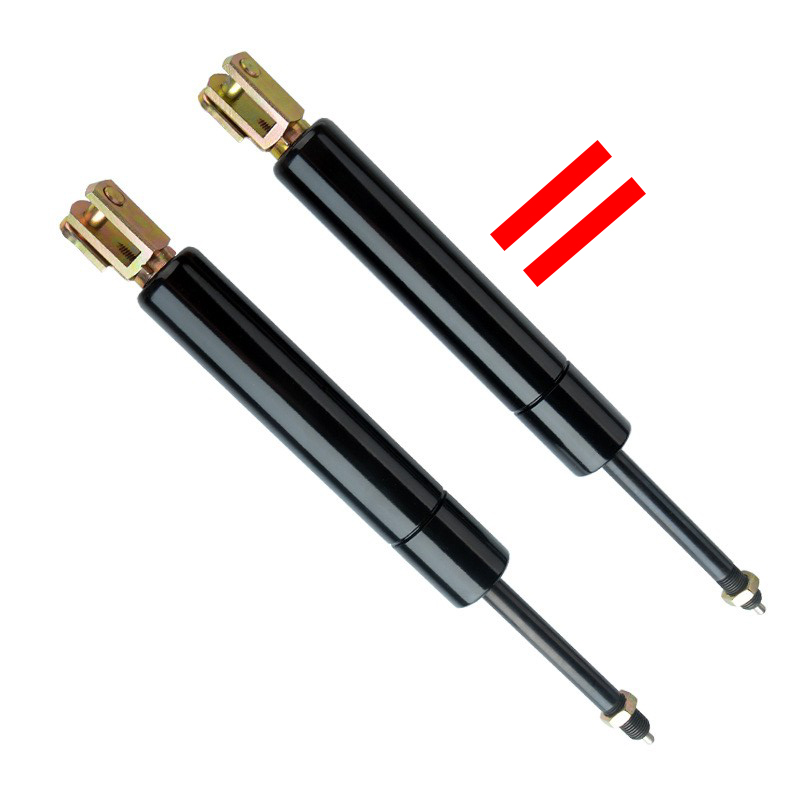

•Rigid blocking in the pulling direction
•Rigid blocking in pushing direction
•Flexible lockable gas spring
•Absolutely rigid Blockable
These springs can be mounted in any position, but it is recommended to mount this spring with the release pin down to prevent dirt from entering.

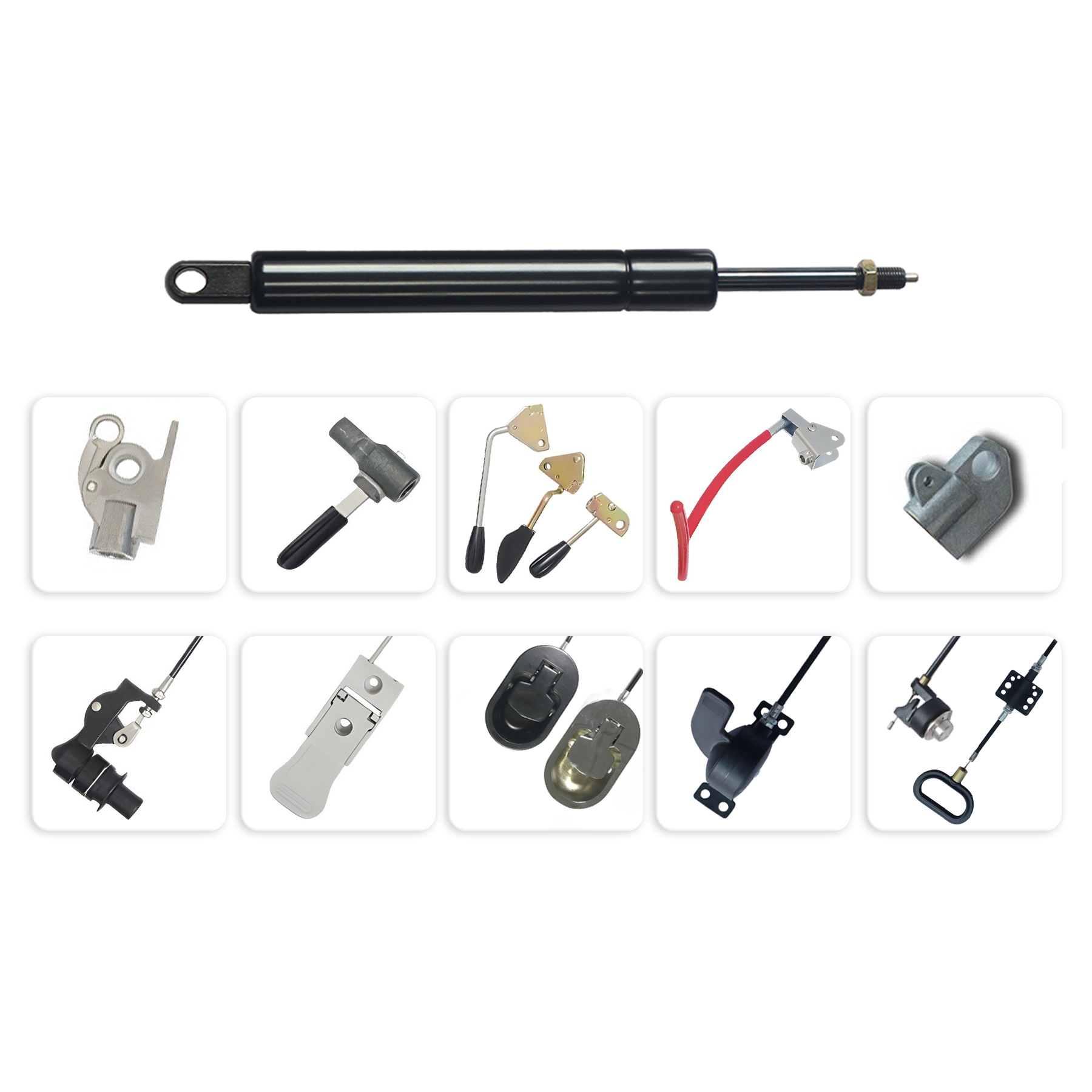

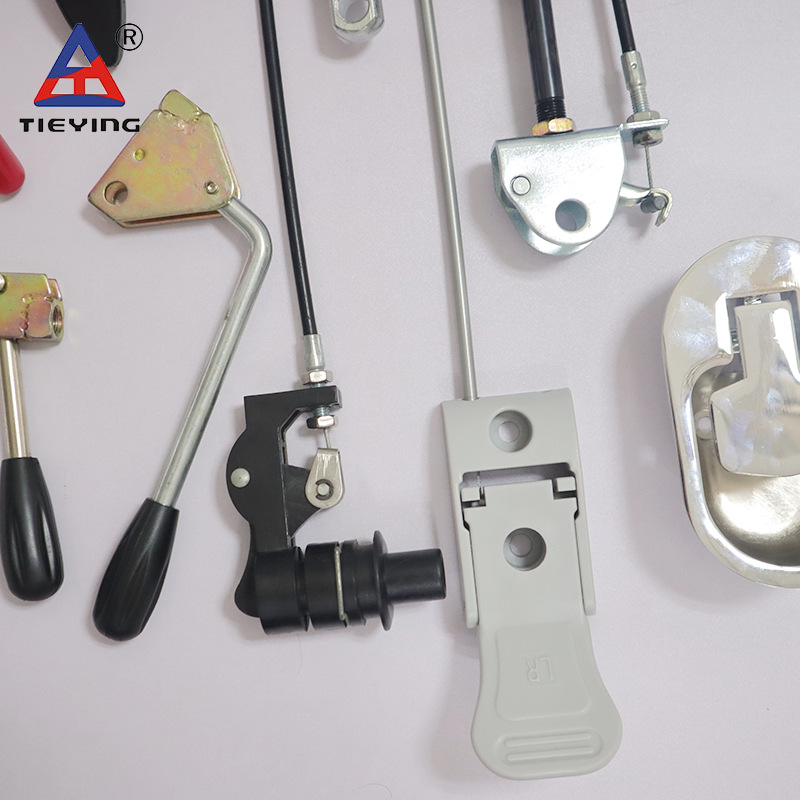

We also offer the cables and direct control systems:

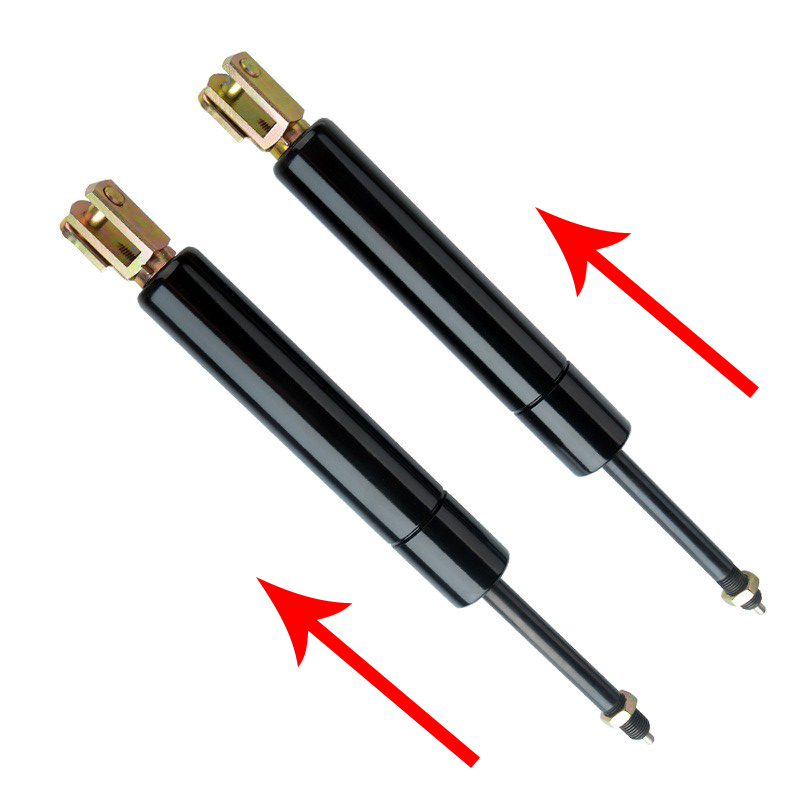

Rigid locking in pull direction spring
A rigid lock in the direction of pull is used when a rebound on the train is not desired. This rigidly lockable spring fixes moving parts in an exact position and gives the possibility to adjust them again.
We offer various options, so adjustments are an option:
Lockable Gas Springs pull :
Force (F1) 60 – 400 N
Force push 3 x F1
Force pull 3 x F1
Progression 35%
Diameter Piston Rod 6 mm
Diameter Cylinder 19 mm
Piston Rod connection M6x0.75
Cylinder connection M8
Material
Steel
Stainless steel 304
Ventil Inline
*Force (F1) 60 – 700 N
*Force push 1000 Newton
*Force pull 5000 Newton
*Progression 50%
*Diameter Piston Rod 10 mm
*Diameter Cylinder 23 mm
*Piston Rod connection M10x1
*Cylinder Diameter M8
*Material
*Steel
*Stainless steel 304
*Force (F1) 150 – 1200 N
*Force push 4 x F1
*Force pull 3000
*Progression 50%
*Diameter Piston Rod 10 mm
*Diameter Cylinder 23 mm
*Piston Rod connection M10x1
*Cylinder Diameter M8
*Material
*Steel
*Stainless steel 304
*Force (F1) 180 – 1200 N
*Force push 5,5 x F1
*Force pull 3000
*Progression 45%
*Diameter Piston Rod 10 mm
*Diameter Cylinder 28 mm
*Piston Rod connection M10x1
*Cylinder connection M8
*Material
*Steel
*Stainless steel 304
*Force (F1) 250 – 1200 N
*Force push 12 x F1
*Force pull 3000
*Progression 33%
*Diameter Piston Rod 10 mm
*Diameter Cylinder 40 mm
*Piston Rod connection M10x1
*Cylinder connection M10 M8
*Material
*Steel
*Stainless steel 304
*Force (F1) 300 – 2600 N
*Force push 6,5 x F1
*Force pull 3000N
*Progression 20%
*Diameter Piston Rod 14 mm
*Diameter Cylinder 40 mm
*Piston Rod connection M10x1
*Cylinder connection M14x1.5
*Material
*Steel

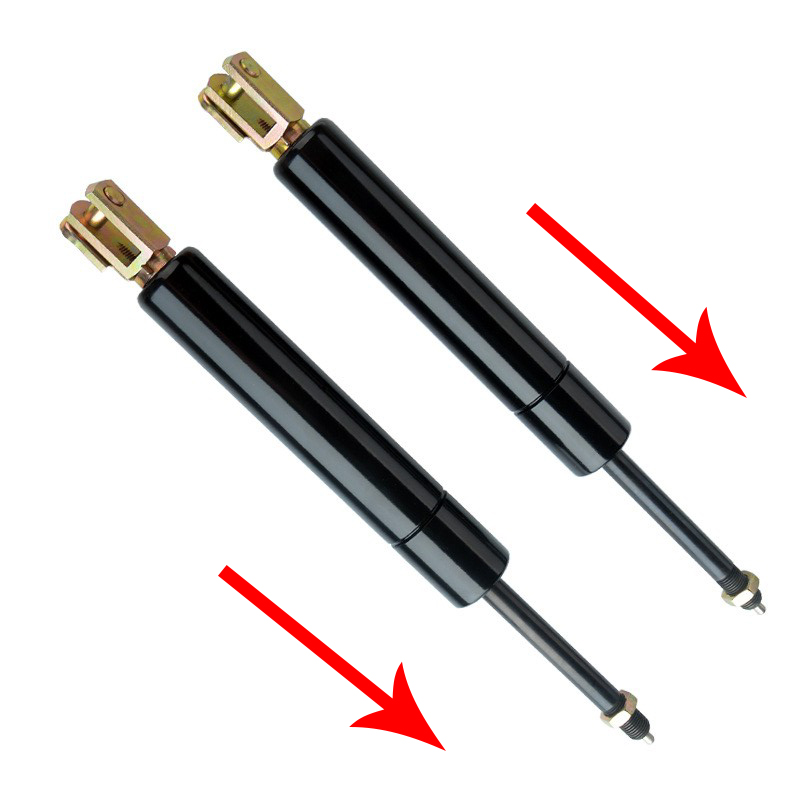

Rigid Locking push springs
A rigid blocking in the direction of pressure is used when a rebound on pressure is not desired. This rigidly lockable spring fixes moving parts in a precise position and enables them to be adjusted again.
We offer various options, so adjustments are an option:
Lockable Gas Springs push :
-Force (F1) 50 – 700 N
-Force push 5 x F1
-Force pull 2 x F1
-Progression 50%
-Diameter Piston Rod 8 mm
-Diameter Cylinder 22 mm
-Piston Rod connection M10x1
-Cylinder connection M8
-Material
-Steel
-Stainless steel 304
-Force (F1) 50 – 1200 N
-Force push 5 x F1
-Force pull 2 x F1
-Progression 50%
-Diameter Piston Rod 10 mm
-Diameter Cylinder 23 mm
-Piston Rod connection M10x1
-Cylinder connection M8
-Material
-Steel
-Stainless steel 304
-Force (F1) 250 – 1200 N
-Force push 10000
-Force pull 4,8 x F1
-Progression 45%
-Diameter Piston Rod 10 mm
-Diameter Cylinder 28 mm
-Piston Rod connection M10x1
-Cylinder connection M8
-Material
-Steel
-Stainless steel 304
-Force (F1) 150 – 1200 N
-Force push 10.000
-Force pull 12 x F1
-Progression 50%
-Diameter Piston Rod 10 mm
-Diameter Cylinder 40 mm
-Piston Rod connection M10x1
-Diameter Cylinder M14x1.5 M10
-Material
-Steel
-Stainless steel 304
-Force (F1) 60 – 2600 N
-Force push 10.000
-Force pull 5,6 x F1
-Progression 50%
-Diameter Piston Rod 14 mm
-Diameter Cylinder 40 mm
-Piston Rod connection M14x1.5 M10x1
-Cylinder connection M14x1.5 M10
-Material
-Steel

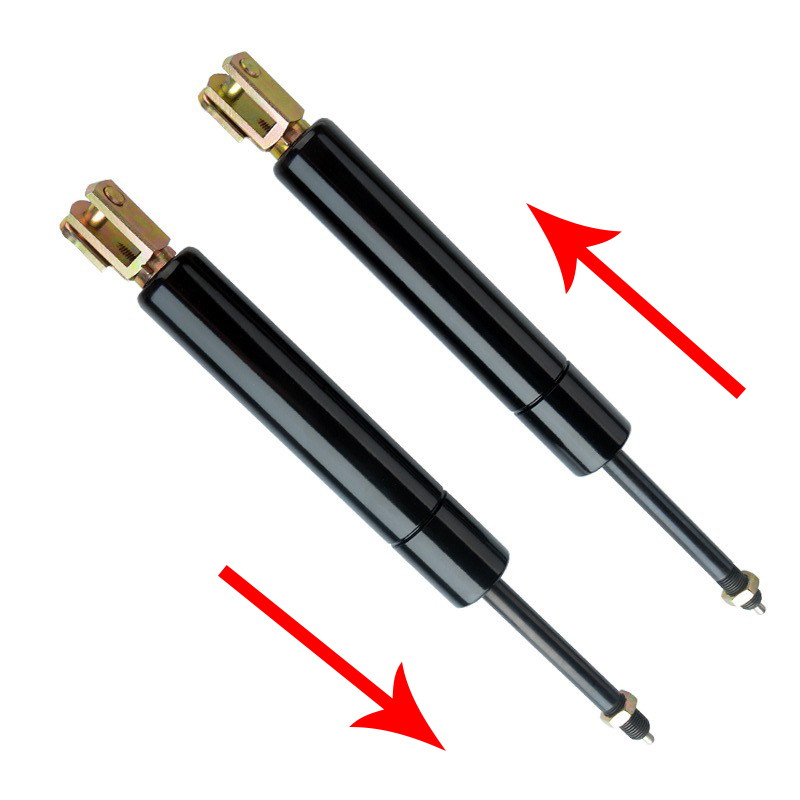

Flexible blockable
This lockable gas pressure spring can be locked in any position along the stroke length. The blocking remains elastic in both directions. When loaded, the spring springs a little but returns to the locked position. This type of blocking can be compared to the effect of the spring in the pillar of an office chair.
We offer various options, so adjustments are an option:
Flexible blockable Gas Springs:
-Force (F1) 60 – 400 N
-Progression 20%
-Diameter Piston Rod 6 mm
-Diameter Cylinder 19 mm
-Piston Rod connection M6x0.75
-Cylinder connection M8
-Force (F1) 150 – 1200 N
-Progression 35%
-Diameter Piston Rod 10 mm
-Diameter Cylinder 23 mm
-Piston Rod connection M10x1
-Cylinder connection M8
-Force (F1) 150 – 1200 N
-Progression 25%
-Diameter Piston Rod 10 mm
-Diameter Cylinder 28 mm
-Piston Rod connection M10x1
-Cylinder connection M8
-Force (F1) 200 – 1200 N
-Progression 15%
-Diameter Piston Rod 10 mm
-Diameter Cylinder 40 mm
-Piston Rod connection M10x1
-Cylinder connection M14x1.5 M10
-Force (F1) 250 – 2500 N
-Progression 33%
-Diameter Piston Rod 14 mm
-Diameter Cylinder 40 mm
-Piston Rod connection M10x1
-Cylinder connection M14x1.5 M10

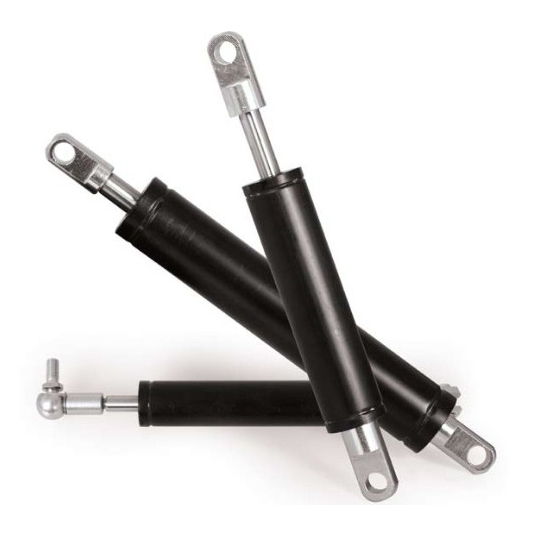

This spring works in the opposite way to a gas pressure spring. In the unloaded state, the piston rod of this type is always retracted in the cylinder. These springs are built on a two-cylinder principle. The gas is only on one side of the piston. The gas is compressible. When enough external force is applied, the piston rod is pulled out of the cylinder and the gas spring compresses the gas in the outer cylinder.
Absolut Lockable Gas Spring
This type of spring combines the properties of rigid locking both on compression and on tension. This absolutely rigidly lockable spring fixes moving parts in an exact position and allows them to be adjusted again.
We offer various options, so adjustments are an option:
-Force (F1) 0 – 1200 N
-Force push 7.000
-Force pull 7.000
-Progression 50%
-Diameter Piston Rod 10 mm
-Diameter Cylinder 22 mm
-Piston Rod connection M10x1
-Cylinder connection M8
-Material
-Steel
-Stainless steel 304
-Force (F1) 0 – 1200 N
-Force push 10.000
-Force pull 10000
-Progression 29%
-Diameter Piston Rod 10 mm
-Diameter Cylinder 28 mm
-Piston Rod connection M10x1
-Cylinder connection M10 M8
-Material
-Steel
-Stainless steel 304
-Force (F1) 0 – 2600 N
-Force push 12.000
-Force pull 12000
-Progression 35%
-Diameter Piston Rod 14 mm
-Diameter Cylinder 40 mm
-Piston Rod connection M10x1
-Cylinder connection M14x1.5 M10
-Material
-Steel
Overview Operating Systems :
For all lockable gas springs we can offer you various compatible release systems. These are suitable for every different gas spring application you can desire. If you have a specific question or need you can always contact us for advice.
Overview Operating Systems :
The Operating Systems program is divided into 3 categories:
Direct operation on / at the gas spring
Bowden cable operation
Hydraulic operation system
Direct Operating Systems

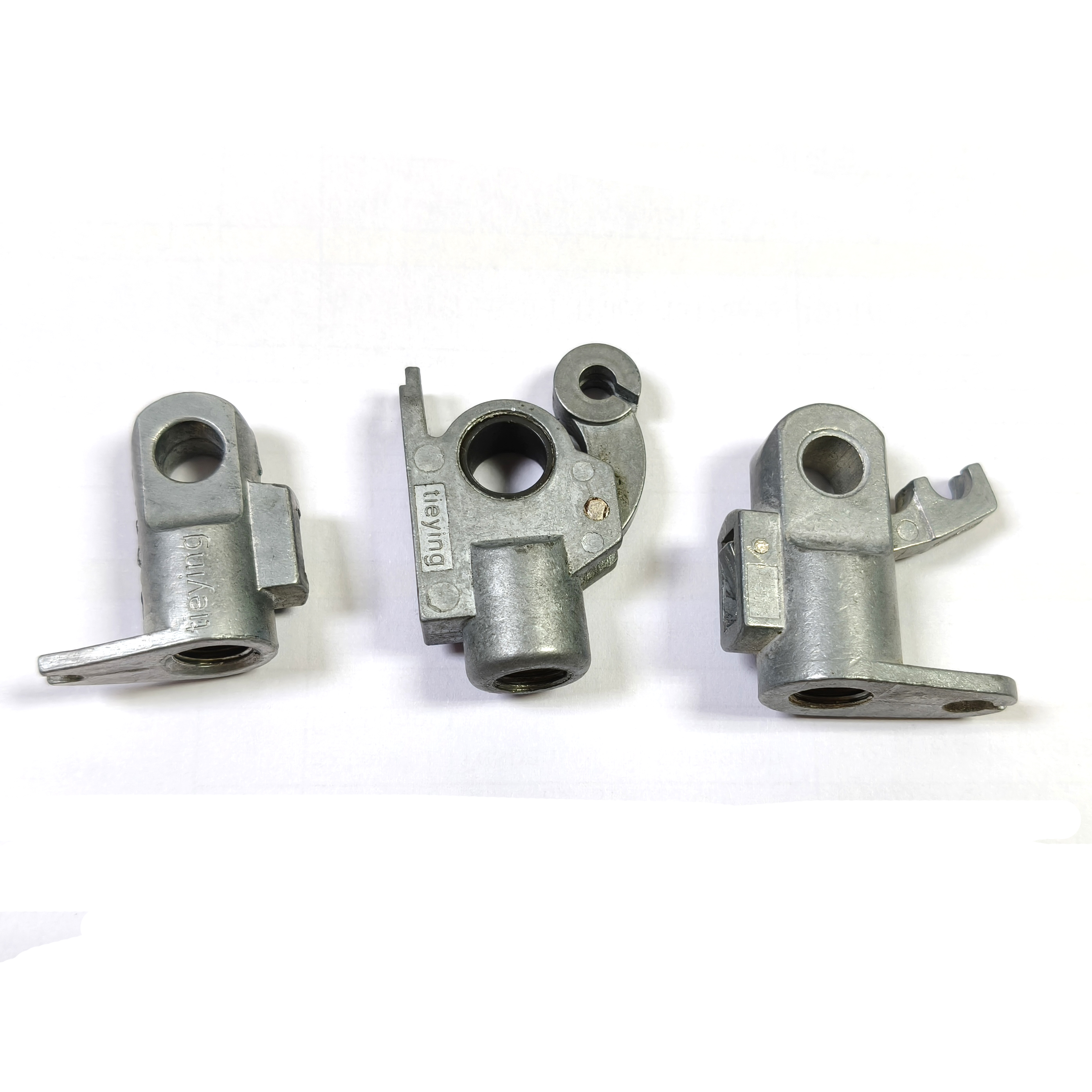

There are different trigger heads with operating levers in different positions and lengths for applications with direct triggering on the gas spring.
We offer various options, so adjustments are an option.
Direct operating 7000N
-Force (F1) – N
-Diameter hole 8.1 mm
-Piston Rod connection M8.1
-Length 30 mm
-Material
*Aluminium
-Force (F1) – N
-Diameter Hole 10.1 mm
-Piston Rod connection M10x1
-Length 30 mm
-Material
*Aluminium
Directe operating 12000 N
-Force (F1) – N
-Diameter Hole 10.1 mm
-Piston Rod connection M10x1
-Length 40 mm
-Material
*Aluminium
-Force (F1) – N
-Diameter Hole 12.1
-Piston Rod connection M10x1
-Length 40 mm
-Material
*Aluminium
-Force (F1) – N
-Diameter Hole 12.1
-Piston Rod connection M14x1.5
-Length 40 mm
-Material
*Aluminium
-Force (F1) – N
-Diameter Hole 14.1
-Piston Rod connection M14x1.5
-Length 40 mm
-Material
*Aluminium
Bowdenzug Cable Operation System
The Bowden cable release is used for applications in which the actuation cannot be carried out directly on the gas spring. This system consists of a release head on the gas spring, different lengths of Bowden cable, and a selection of different actuation units for the various applications
We offer various options, so adjustments are an option.
Bowdenzug 7000N
-Force (F1) – N
-Diameter hole 8.1 mm
-Connection piston rod M8.1
-Assembly length 30 mm
-Material
*Aluminum
-Force (F1) – N
-Diameter hole 10.1 mm
-Connection piston rod M10.1
-Assembly length 30 mm
-Material Force (F1) – N
-Diameter hole 10.1 mm
-Connection piston rod M10.1
-Assembly length 30 mm
-Material
*Aluminum
Aluminum
Bowdenzug 12000 N
-Force (F1) – N
-Diameter hole 10.1 mm
-Connection piston rod M10x1
-Assembly length 40 mm
-Material
*Aluminum
-Force (F1) – N
-Diameter hole 12.1 mm
-Connection piston rod M10x1
-Assembly length 40 mm
-Material
*Aluminum
-Force (F1) – N
-Diameter hole 12.1 mm
-Connection piston rod M14x1.5
-Assembly length 40 mm
-Material
*Aluminum
-Force (F1) – N
-Diameter hole 14.1 mm
-Connection piston rod M14x1.5
-Assembly length 40 mm
-Material
*Aluminum
Hydraulic operating systems
The most elegant and comfortable form of condition for the lockable gas pressure spring is the hydraulic release. It allows trigger points to be positioned perfectly. The hydraulic lines are easy to integrate around different corners and edges in your application.
We offer various options, so adjustments are an option.
-Force (F1) – N
-Diameter Hole 8.1
-Piston Rod connection M8.1
-Assembly length 30 mm
-Material
*Aluminium
-Force (F1) – N
-Diameter Hole 8.1
-Piston Rod connection M10x1
-Assembly length 30 mm
-Material
*Aluminium
-Force (F1) – N
-Diameter Hole 8.1
-Piston Rod connection M14x1.5
-Assembly length 30 mm
-Material
*Aluminium
The throttle cable is always retracted by default. This type works in reverse to standard gas springs. When a force greater than the compressed nitrogen filling pressure is applied, the tension spring pushes out to the maximum extended length.
This type of spring is usually used when space reasons, the application of a compression spring is not possible. The throttle cable spring is available in two versions: with end damping and without end damping.
We offer standard 3 types of gas tension springs:

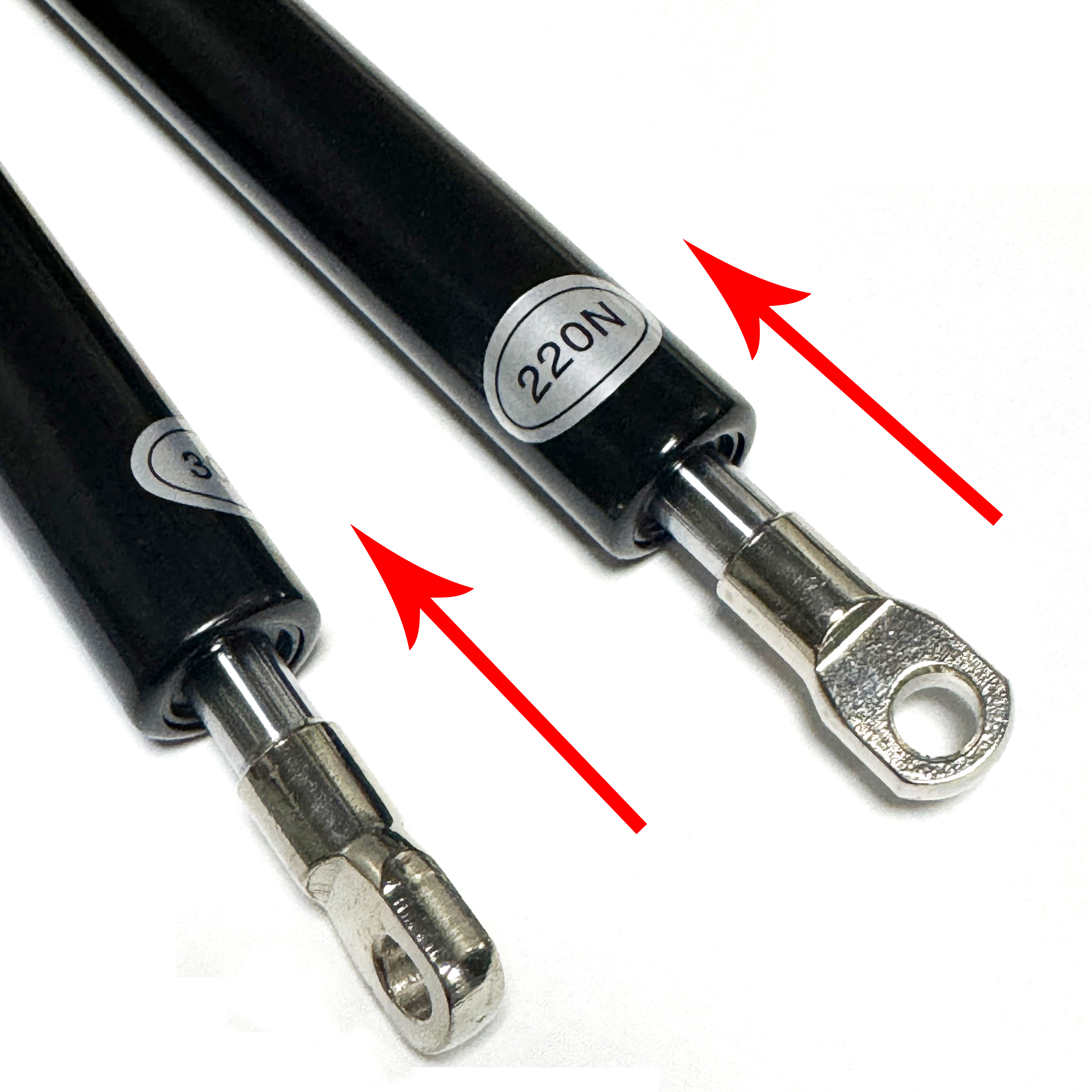

Gas tension spring without damping
Gas tension spring with damping
Lockable Gas tension spring
Gas Tension Spring without damping
This spring is mostly used to balance a weight. In the normal position, the piston rod of the gas pressure spring is always extended. The gas pressure on both sides of the piston in the gas pressure spring is the same. The gas is compressible. When an external force is applied to the piston rod towards the cylinder, the piston compresses the gas. Due to the penetration of the piston into the cylinder, the gas pressure increases. When the external force decreases, the piston returns to its original position.
We offer various options, so adjustments are also possible :
-Force (F1) 60 – 400 N
-Progression 20%
-Diameter Piston Rod 6 mm
-Diameter Cylinder 19 mm
-Piston Rod connection M6
-Cylinder connection M8
-Material
-Steel
-Stainless steel 304
-Force (F1) 40 – 700 N
-Progression 23%
-Diameter Piston Rod 8 mm
-Diameter Cylinder 22 mm
-Piston Rod connection M8
-Cylinder connection M10 M8
-Material
-Steel
-Stainless steel 316
-Force (F1) 150 – 1500 N
-Progression 25%
-Diameter Piston Rod 10 mm
-Diameter Cylinder 28 mm
-Piston Rod connection M8
-Cylinder connection M10 M8
-Material
-Steel
-Stainless steel 304
-Force (F1) 200 – 2000 N
-Progression 15%
-Diameter Piston Rod 10 mm
-Diameter Cylinder 40 mm
-Piston Rod Connection M10
-Cylinder connection M14x1.5 M10
-Material
-Steel
-Stainless steel 304
-Force (F1) 250 – 4000 N
-Progression 33%
-Diameter Piston Rod 14 mm
-Diameter Cylinder 40 mm
-Piston Rod connection M10
-Cylinder connection M14x1.5
-Material
- Steel
-Ventil Queer
-Scraper Optional
-Vetkamer Optional

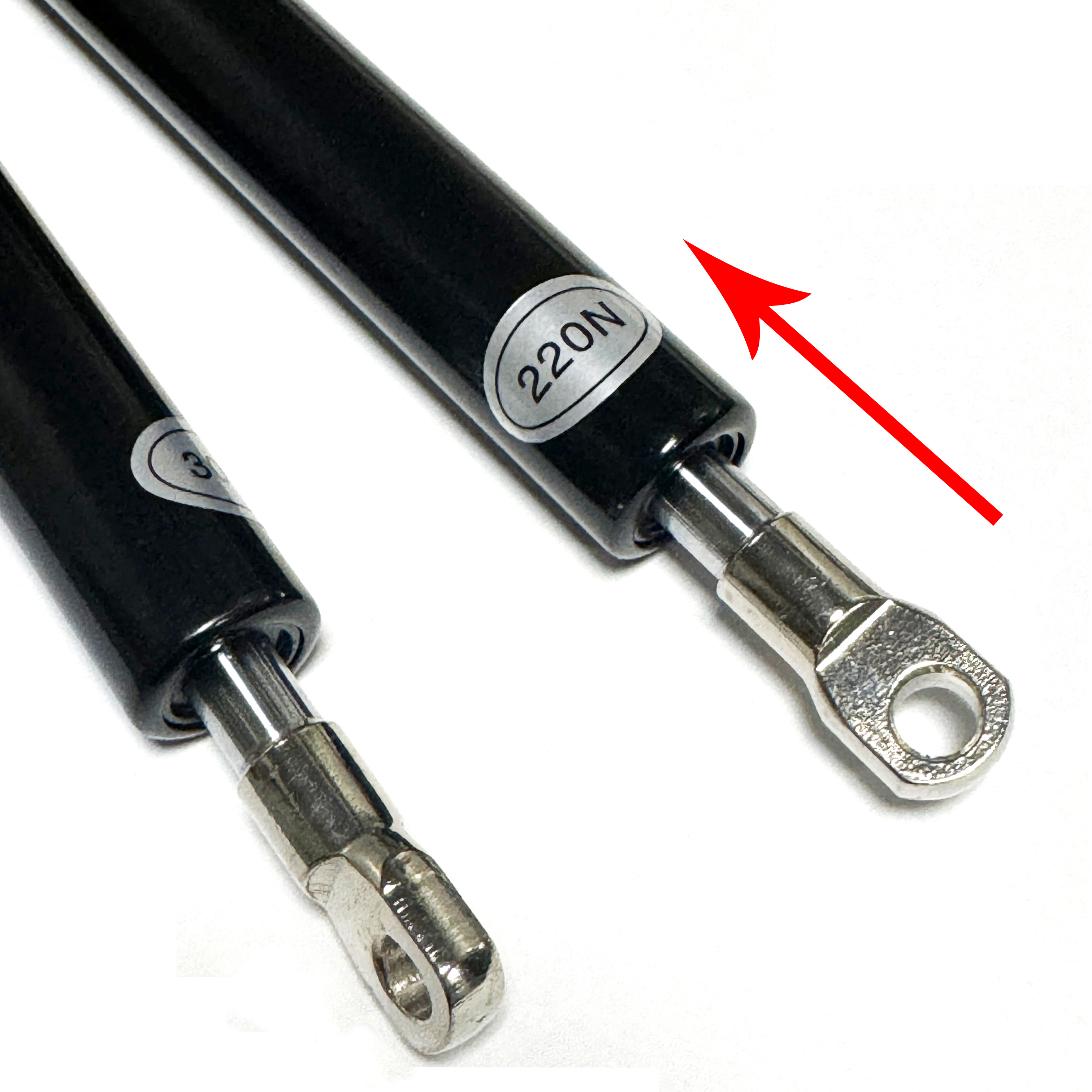

Gas tension spring with damping
This spring is mostly used to balance a weight. In the normal position, the piston rod of the gas pressure spring is always extended. The gas pressure on both sides of the piston in the gas pressure spring is the same. The gas is compressible. When an external force is applied to the piston rod towards the cylinder, the piston compresses the gas. Due to the penetration of the piston into the cylinder, the gas pressure increases. When the external force decreases, the piston returns to its original position.
We offer various options, so adjustments are possible :
-Force (F1) 50 – 300 N
-Progression 25%
-Diameter Piston Rod 6 mm
-Diameter Cylinder 19 mm
-Piston Rod connection M5
-Cylinder connection M8
-Material
-Steel
-Force (F1) 50 – 400 N
-Progression 40%
-Diameter Piston Rod 8 mm
-Diameter Cylinder 22 mm
-Piston Rod connection M6
-Cylinder connection M8
-Material
-Steel
-Force (F1) 100 – 1200 N
-Progression 40%
-Diameter Piston Rod 10 mm
-Diameter Cylinder 28 mm
-Piston Rod connection M8
-Cylinder connection M8
-Material
-Steel
-Stainless steel 304
-Force (F1) 200 – 2500 N
-Progression 40%
-Diameter Piston Rod 14 mm
-Diameter Cylinder 40 mm
-Piston Rod connection M10
-Cylinder connection M10
-Material
-Steel
Lockable Gas tension spring
This spring is mostly used to balance a weight. In the normal position, the piston rod of the gas pressure spring is always extended. The gas pressure on both sides of the piston in the gas pressure spring is the same. The gas is compressible. When an external force is applied to the piston rod towards the cylinder, the piston compresses the gas. Due to the penetration of the piston into the cylinder, the gas pressure increases. When the external force decreases, the piston returns to its original position.
We offer various options, so adjustments are possible :
-Force (F1) 30 – 330 N
-Progression 10%
-Diameter Piston Rod 10 mm
-Diameter Cylinder 28 mm
-Piston Rod connection M10x1
-Cylinder connection M10 M8
-Material
-Steel
-Force (F1) 100 – 2000 N
-Force push 10.000
-Force pull 10.000
-Progression 60%
-Diameter Piston Rod 10 mm
-Diameter Cylinder 28 mm
-Piston Rod connection M10x1
-Cylinder connection M10 M8
-Material
-Steel
-Force (F1) 200 – 4000N
-Force push 10.000N
-Force pull 10.000N
-Progression 60%
-Diameter Piston Rod 14 mm
-Diameter Cylinder 40 mm
-Piston Rod connection M10x1
-Cylinder connection M14x1.5
-Material
-Steel
These types of springs are a combination of a lockable, completely rigid, and a standard gas tension spring, and are infinitely lockable over the entire stroke.
You can also get throttle springs with all their features tailored to your application. We can meet almost all production requests at short notice. To complete the range of tensions springs we also offer the corresponding operating systems.
-Force (F1) 50 – 1500 N
-Force push 10000 N
-Force pull 10000 N
-Diameter Piston Rod 10 mm
-Diameter Cylinder 28 mm
-Piston Rod connection M10x1
-Cylinder connection M10 M8
-Material
-Steel
-Stainless steel 304
-Stainless steel 316
-Force (F1) 200 – 4000 N
-Force push 10000 N
-Force pull 10000 N
-Diameter Piston Rod 14 mm
-Diameter Cylinder 40 mm
-Piston Rod connection M10x1
-Cylinder connection M14x1.5
-Material
-Steel
-Stainless steel 304
-Stainless steel 316
