Hydraulic Dampers – High-Performance Motion Control Solutions

Hydraulic dampers, also known as shocks, struts, lifts, or pistons, are essential for applications requiring precise motion control. Unlike Gas Springs, which provide lifting force at reduced speeds, Hydraulic Dampers function by reducing speed without adding force. These dampers provide effective motion and speed control through hydraulic oil damping and can operate in either the extension, compression, or both directions—with or without the support of nitrogen gas pressure.

The key feature of hydraulic dampers is their ability to adjust force based on the travel speed. This characteristic ensures smooth, controlled movement while absorbing energy and mitigating shock in various systems.

Cavitating vs Non-Cavitating Dampers

Hydraulic dampers are primarily classified into two categories:

• Cavitating Dampers: These dampers utilize a specific design to manage the movement of oil under varying pressures and are often used in systems requiring lower damping forces.

• Non-Cavitating Dampers: Designed to handle higher pressures and more demanding applications, non-cavitating dampers maintain reliable performance even in high-load conditions.

Another important design requirement for dampers is compensating for shaft volume displacement as it moves inside the tube. Unlike gas springs, which compress gas to store energy, dampers use non-compressible oil, which necessitates careful engineering to ensure reliable and consistent operation.

Main Features & Benefits of Our Hydraulic Dampers

• Durability: 150,000 to 200,000 life cycle rating, ensuring long-lasting performance in a wide range of applications.

• Force Range: 10N to 2,400N, providing versatile options for different applications.

• Stroke Range: 25mm to 500mm, adaptable to various project needs.

• Size Options: Rod and tube diameters available in 4/12, 6/15, 8/18, 10/22, 12/28, and 14/28, catering to diverse design requirements.

• Corrosion Resistance: Up to 144 hours of salt spray testing, offering exceptional resistance to environmental wear and tear.

• Temperature Tolerance: Usable within a wide temperature range of -30°C to 80°C, making them suitable for both hot and cold environments.

• Material Options: Steel or 304/316 stainless steel construction for maximum durability and corrosion resistance.

• Speed Control: Available in slow, regular, or fast extension speeds, offering flexibility based on motion control needs.

• Damping Options: Choose from light, regular, or heavy damping to customize the damper’s behavior to your requirements.

• Sustainability: Use of eco-friendly materials for a sustainable, low-impact manufacturing process.

• Customization: Fully custom-designed and sized for each application to ensure optimal performance.

• Compact Design: Hydraulic dampers are designed for installation in even the smallest of spaces, making them ideal for tight, confined areas.

• Maintenance-Free: Reliable performance with no regular maintenance required, even under high loads, ensuring long-term efficiency.

Applications of Hydraulic Dampers

Our hydraulic dampers are designed for a wide range of applications, including:

• Lids, Doors, and Covers: For smooth opening and closing with controlled speed.

• Furniture: Ideal for adjustable furniture and hospital bed side rails.

• Electronic Gaming Machines: Providing motion control for covers and panels.

• ATM Maintenance Covers: Ensuring reliable, smooth opening and closing of ATM compartments.

• Automotive Applications: Used for shock absorption in car hoods, trunks, and tailgates.

• Recreational Equipment: Used in recreational vehicles and specialty vehicles for motion control.

• Industrial Equipment: Providing efficient movement control in machinery, conveyors, and factory equipment.

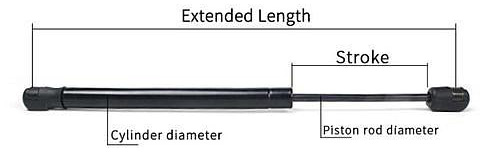

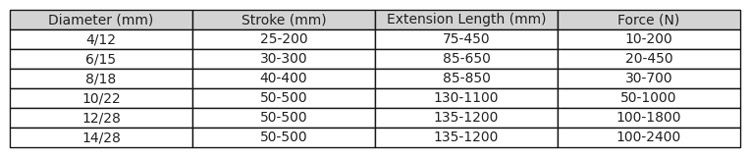

Specification

Custom Hydraulic Dampers for Unique Applications

At TieYing Spring, we understand that every project and application is unique. That’s why we offer bespoke hydraulic dampers tailored to your specific needs. Our team of experienced engineers works closely with you to understand your application requirements and provide a custom solution that fits perfectly.

Whether you need specific lengths, force settings, or damping characteristics, our custom-designed dampers offer the flexibility and precision needed for demanding applications. We pride ourselves on providing high-quality products manufactured to meet international standards and designed to last in the toughest conditions.

Customer Support & Engineering Services

We are committed to providing exceptional service and support to our customers. If you’re unsure about which damper is right for your application, our customer support team is available to assist you every step of the way. Simply reach out to us via email, and our engineering team will work with you to find the perfect hydraulic damper solution.

Why Choose TieYing Spring Hydraulic Dampers?

At TieYing Spring, we bring decades of experience in providing hydraulic damper solutions that meet the highest standards. Our dedicated engineering team works closely with you to design dampers that fit your specific requirements, from custom sizing to force settings. We also offer competitive pricing directly from our factory, ensuring the best value for our high-quality products.

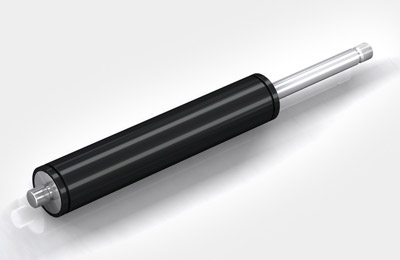

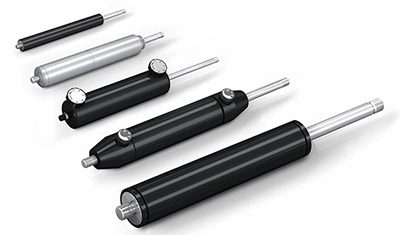

Hydraulic Damper Overview

The sleek, compact design of our hydraulic dampers allows for easy installation in even the tightest spaces. Ideal for automotive, furniture, and industrial applications, these dampers provide precise motion control.

Testing Durability

Our hydraulic dampers undergo extensive testing to ensure they meet durability standards, including salt spray resistance for corrosion-free performance in harsh environments.

Industrial Application

Used in industrial settings, hydraulic dampers provide smooth motion control for machinery, preventing shocks and reducing wear over time. Perfect for high-load operations.

Corrosion-Resistant Construction

Constructed from 304/316 stainless steel, our dampers offer high resistance to corrosion, making them suitable for outdoor, automotive, and marine environments.

Custom Damper Solutions

We work directly with customers to create bespoke dampers for unique applications. Whether you need a specific size, damping force, or stroke, our team delivers the perfect solution.

Precise Motion Control

From slow extension speeds to heavy damping, our dampers offer adjustable performance, providing the right solution for furniture, automotive, and medical equipment.

Types of Dampers

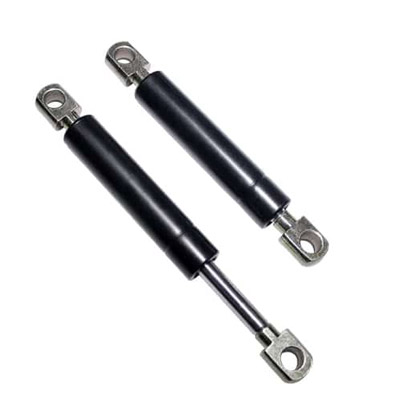

1. Compression Damper
   Function: Compression dampers are designed to regulate the speed when the rod is being compressed back into the tube. The force of compression is controlled, allowing for smooth deceleration as the rod retracts.
   Common Uses: These dampers are typically used in lids, doors, covers, and any application requiring speed control when moving in the compression direction. For example, automotive hoods, cabinet doors, or storage covers rely on compression dampers for smooth and controlled closure.
   Benefit: Compression dampers prevent slamming or sudden stops, ensuring smooth, controlled movements in both light and heavy-duty applications.

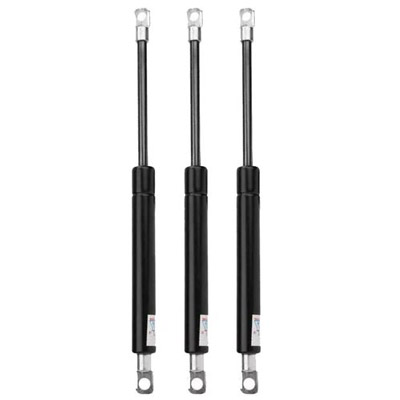

2. Extension Damper
   Function: Extension dampers provide controlled speed when the rod is extended out of the tube. The dampers slow down the extension movement, providing precise control over how quickly the rod emerges.
   Common Uses: These dampers are used in doors, lids, covers, or applications where speed control is necessary during extension (when the rod moves out). For example, tailgate supports or furniture lifting systems often use extension dampers to control the speed at which they open or close.
   Benefit: Extension dampers prevent abrupt or jerky motions during the extension phase, ensuring safe and predictable operation.

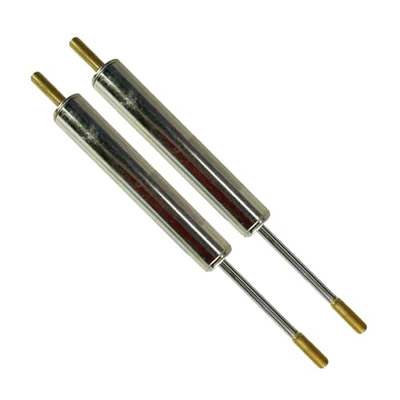

3. Cavitating Damper
   Function: Cavitating dampers are filled with a mixture of oil and air. When the shaft compresses, the air is compressed, absorbing some of the movement. In vertical or near-vertical applications, the oil and air remain separated due to gravity, providing effective damping. However, when used horizontally, the oil and air mix, causing cavitation, which leads to irregular damping forces. This results in jerky movements as the shaft moves in and out.
   Common Uses: Cavitating dampers are best suited for vertical or near-vertical applications where gravity ensures oil and air separation, such as furniture or machinery.
   Benefit: These dampers are cost-effective for specific applications but are limited in horizontal configurations where smooth, consistent damping is required.

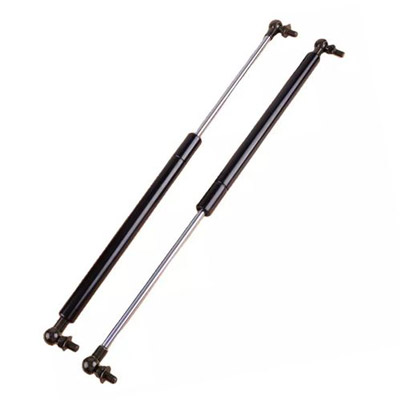

4. Non-Cavitating Damper
   Function: Non-cavitating dampers prevent the mixing of oil and air through floating pistons, air bags, or foam, ensuring a smooth, consistent damping force regardless of mounting orientation. This design eliminates the risk of cavitation, ensuring reliable, even performance in both vertical and horizontal applications.
   Common Uses: Non-cavitating dampers are versatile and used in applications such as automotive suspension systems, recreational vehicles, and machinery that require precise motion control in any position. They are especially valuable in situations where consistent damping is crucial, such as heavy-duty doors, lid systems, or adjustable furniture.
   Benefit: Non-cavitating dampers offer reliable performance in various orientations and provide precise, smooth motion control under various load conditions.

Summary of Key Differences
