Gas Piston Lift for misumi
Features: A gas spring with freely adjustable gas reaction force.
Gas Spring Type:Gas Reaction Force Configurable Type
Rod Material:Steel
Cylinder Material:Steel
Application:Industrial Equipment
Operating Condition:Indoors
Operating Temperature Range (°C):-20——80
Type:Gas Springs
| Part Number | Min. Length Lmin (mm) | Stroke S(mm) | Rod Dia. d(Ø) | Cylinder Dia. D (Ø) | Cylinder End Shape | Rod End Shape | Mounting Orientation | Max. Length Lmax (mm) | Reaction force (N) | Minimum order quantity |
| FGS-15-40-BB-100 | 77 | 40 | 6 | 15 | [No fitting] B type | [No metal fittings] Model B | - | 117 | 100 | 1 Piece(s) |
| FGS-15-50-BB-200 | 87 | 50 | 6 | 15 | [No fitting] B type | [No metal fittings] Model B | - | 137 | 200 | 1 Piece(s) |
| FGS-15-60-BB-60 | 97 | 60 | 6 | 15 | [No fitting] B type | [No metal fittings] Model B | - | 157 | 60 | 1 Piece(s) |
| FGS-15-80-BB-80 | 117 | 80 | 6 | 15 | [No fitting] B type | [No metal fittings] Model B | - | 197 | 80 | 1 Piece(s) |
| FGS-15-80-BB-180 | 117 | 80 | 6 | 15 | [No fitting] B type | [No metal fittings] Model B | - | 197 | 180 | 1 Piece(s) |
| FGS-15-100-BB-400 | 137 | 100 | 6 | 15 | [No fitting] B type | [No metal fittings] Model B | - | 237 | 400 | 1 Piece(s) |
| FGS-15-100-DD-250 | 167 | 100 | 6 | 15 | [Others] D type | [Others] Model D | All Directions 360° | 267 | 250 | 1 Piece(s) |
| FGS-15-120-BB-100 | 157 | 120 | 6 | 15 | [No fitting] B type | [No metal fittings] Model B | - | 277 | 100 | 1 Piece(s) |
| FGS-15-120-BB-140 | 157 | 120 | 6 | 15 | [No fitting] B type | [No metal fittings] Model B | - | 277 | 140 | 1 Piece(s) |
| FGS-15-120-BB-160 | 157 | 120 | 6 | 15 | [No fitting] B type | [No metal fittings] Model B | - | 277 | 160 | 1 Piece(s) |
| FGS-15-120-BB-300 | 157 | 120 | 6 | 15 | [No fitting] B type | [No metal fittings] Model B | - | 277 | 300 | 1 Piece(s) |
| FGS-15-150-BB-170 | 177 | 150 | 6 | 15 | [No fitting] B type | [No metal fittings] Model B | - | 327 | 170 | 1 Piece(s) |
| FGS-19-150-BB-250 | 231 | 150 | 8 | 19 | [No fitting] B type | [No metal fittings] Model B | - | 381 | 250 | 1 Piece(s) |
| FGS-19-250-BB-340 | 331 | 250 | 8 | 19 | [No fitting] B type | [No metal fittings] Model B | - | 581 | 340 | 1 Piece(s) |
| FGS-19-250-BB-370 | 331 | 250 | 8 | 19 | [No fitting] B type | [No metal fittings] Model B | - | 581 | 370 | 1 Piece(s) |
| FGS-19-300-BB-370 | 381 | 300 | 8 | 19 | [No fitting] B type | [No metal fittings] Model B | - | 681 | 370 | 1 Piece(s) |
| FGS-19-300-BB-400 | 381 | 300 | 8 | 19 | [No fitting] B type | [No metal fittings] Model B | - | 681 | 400 | 1 Piece(s) |
| FGS-19-300-BB-430 | 381 | 300 | 8 | 19 | [No fitting] B type | [No metal fittings] Model B | - | 681 | 430 | 1 Piece(s) |
| FGS-22-150-BB-830 | 231 | 150 | 10 | 22 | [No fitting] B type | [No metal fittings] Model B | - | 381 | 830 | 1 Piece(s) |
| FGS-22-200-BB-150 | 281 | 200 | 10 | 22 | [No fitting] B type | [No metal fittings] Model B | - | 481 | 150 | 1 Piece(s) |
| FGS-22-350-BB-1180 | 431 | 350 | 10 | 22 | [No fitting] B type | [No metal fittings] Model B | - | 781 | 1,180 | 1 Piece(s) |
The type (structure) of gas spring：Free Mounting Direction (Free Piston) Type
Rad Material：Steel
Material of cylinder：Steel
Rod Diameter d (Ø)：10
Cylinder Outer Diameter D (Ø)：22
Cylinder End Shape：Type C
Application：Industrial Equipment / OA equipment / Medical Equipment / Manufacturing machinery / General Furniture
Rod End Shape：Type C
Operating Environment：Indoors
Mounting Direction：All directions 360°
Operating Temperature Range (°C)：-20::80
Types：Gas Springs
Main Body Color：Black
Part number
| Part Number | Min. Length Lmin (mm) | Fa (N) | Fb (N) | Stroke S (mm) | Max. Length Lmax (mm) | Minimum order quantity |
| KMF50-20 | 196 | 196 | 265 | 50 | 246 | 1 Piece(s) |
| KMF50-30 | 196 | 294 | 396 | 50 | 246 | 1 Piece(s) |
| KMF50-40 | 196 | 392 | 528 | 50 | 246 | 1 Piece(s) |
| KMF70-20 | 246 | 196 | 253 | 70 | 316 | 1 Piece(s) |
| KMF70-30 | 246 | 294 | 379 | 70 | 316 | 1 Piece(s) |
| KMF70-40 | 246 | 392 | 503 | 70 | 316 | 1 Piece(s) |
| KMF80-20 | 250 | 196 | 273 | 80 | 330 | 1 Piece(s) |
| KMF80-40 | 250 | 392 | 542 | 80 | 330 | 1 Piece(s) |
| KMF90-20 | 270 | 196 | 266 | 90 | 360 | 1 Piece(s) |
| KMF90-30 | 270 | 294 | 397 | 90 | 360 | 1 Piece(s) |
| KMF90-40 | 270 | 392 | 529 | 90 | 360 | 1 Piece(s) |
| KMF100-20 | 286 | 196 | 275 | 100 | 386 | 1 Piece(s) |
| KMF100-30 | 286 | 294 | 411 | 100 | 386 | 1 Piece(s) |
| KMF100-40 | 286 | 392 | 546 | 100 | 386 | 1 Piece(s) |
| KMF120-20 | 320 | 196 | 271 | 120 | 440 | 1 Piece(s) |
| KMF120-30 | 320 | 294 | 405 | 120 | 440 | 1 Piece(s) |
| KMF120-40 | 320 | 392 | 538 | 120 | 440 | 1 Piece(s) |
| KMF130-20 | 340 | 196 | 270 | 130 | 470 | 1 Piece(s) |
| KMF130-30 | 340 | 294 | 403 | 130 | 470 | 1 Piece(s) |
| KMF130-40 | 340 | 392 | 536 | 130 | 470 | 1 Piece(s) |
| KMF150-20 | 376 | 196 | 269 | 150 | 526 | 1 Piece(s) |
| KMF150-30 | 376 | 294 | 402 | 150 | 526 | 1 Piece(s) |
| KMF150-40 | 376 | 392 | 534 | 150 | 526 | 1 Piece(s) |
| KMF180-30 | 430 | 294 | 405 | 180 | 610 | 1 Piece(s) |
| KMF180-40 | 430 | 392 | 539 | 180 | 610 | 1 Piece(s) |
| KMF200-20 | 466 | 196 | 268 | 200 | 666 | 1 Piece(s) |
| KMF200-30 | 466 | 294 | 401 | 200 | 666 | 1 Piece(s) |
| KMF200-40 | 466 | 392 | 533 | 200 | 666 | 1 Piece(s) |
| KMF250-20 | 500 | 196 | 302 | 250 | 750 | 1 Piece(s) |
| KMF250-30 | 500 | 294 | 451 | 250 | 750 | 1 Piece(s) |
| KMF250-40 | 500 | 392 | 600 | 250 | 750 | 1 Piece(s) |
| KMF300-20 | 550 | 196 | 326 | 300 | 850 | 1 Piece(s) |
| KMF300-30 | 550 | 294 | 486 | 300 | 850 | 1 Piece(s) |
| KMF350-30 | 600 | 294 | 522 | 350 | 950 | 1 Piece(s) |
Basic information
[Features]
・Resistance force is applied in the direction where the rod extends only.
・Operation is soft and smooth.
Min. Length Lmin (mm)：310 Stroke S (mm)：160
Rod Material：Carbon Steel Material for Mechanical Structure
Cylinder Material：Carbon Steel Pipe for Mechanical Structure
Rod Dia. d (Ø)：10 Cylinder Dia. D (Ø)：22
Cylinder End Shape：A Type
Application：Industrial Equipment
Rod End Shape：A Type Operating Condition：Indoors
Oil Damper Type：Extension Direction Damper
Mounting Orientation：60° Max. Length Lmax (mm)：470
Type：Oil Damper Bracket Mounting Hole (mm)：9
Soft And Smooth Operation

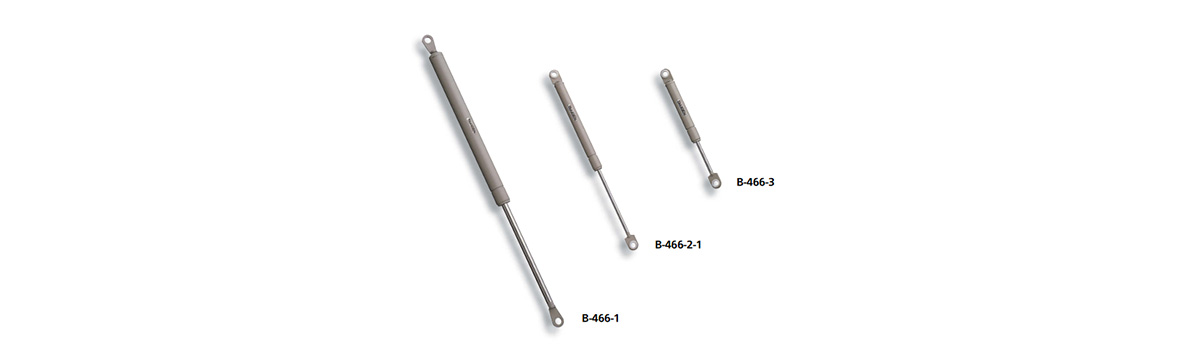

B-466-1, B-466-2-1, B-466-3 external appearance
| Product No. | L1 | L2 | Extended Load (N) | Drawn Back Load (N) | Rod Extending Speed (m/sec) | Damping Stroke Range | Product Mass (g) |
| B-466-1 | See above | 490 | 49 | 0.05 | Entire stroke range | 350 | |
| B-466-2-1 | 281 | 181 | 156 | 19 | 0.1 | 61 | 110 |
| B-466-2-2 | 281 | 181 | 1960 | 19 | 0.1 | 83 | 110 |
| B-466-3 | 181 | 131 | 1,960 | 19 | 0.1 | 38 | 80 |
Basic information
Standard product of all gas model (with cylinder external diameter of 22 mm, piston rod diameter of 10 mm).
The type (structure) of gas spring：Mounting Direction Fixed (All Gas) Type
Rad Material：Steel
Material of cylinder：Steel Rod Diameter d (Ø)：10
Cylinder Outer Diameter D (Ø)：22
Cylinder End Shape：Type C
Application：Industrial Equipment / OA equipment / Medical Equipment / Manufacturing machinery / General Furniture
Rod End Shape：Type C
Operating Environment：Indoors
Mounting Direction：60°
Operating Temperature Range (°C)：-20::80
Types：Gas Springs
Main Body Color：Black
Part Numbers
| Part Number | Min. Length Lmin (mm) | Fa (N) | Fb (N) | Stroke S (mm) | Max. Length Lmax (mm) | Minimum order quantity |
| KMG50-40 | 175 | 392 | 486 | 50 | 225 | 1 Piece(s) |
| KMG70-50 | 195 | 490 | 624 | 70 | 265 | 1 Piece(s) |
| KMG80-40 | 205 | 392 | 503 | 80 | 285 | 1 Piece(s) |
| KMG90-50 | 215 | 490 | 632 | 90 | 305 | 1 Piece(s) |
| KMG120-50 | 245 | 490 | 638 | 120 | 365 | 1 Piece(s) |
| KMG150-50 | 275 | 490 | 642 | 150 | 425 | 1 Piece(s) |
| KMG180-40 | 305 | 392 | 516 | 180 | 485 | 1 Piece(s) |
| KMG200-50 | 325 | 490 | 645 | 200 | 525 | 1 Piece(s) |
| KMG250-40 | 375 | 392 | 519 | 250 | 625 | 1 Piece(s) |
| KMG300-50 | 425 | 490 | 649 | 300 | 725 | 1 Piece(s) |
| KMG350-50 | 475 | 490 | 650 | 350 | 825 | 1 Piece(s) |
| KMG400-40 | 525 | 392 | 522 | 400 | 925 | 1 Piece(s) |
Basic information
Free piston standard with cylinder external diameter of 15 mm and piston rod diameter of 7 mm.
[Features]
Because the spring index of a KYB gas spring is smaller than that of a coil spring, almost constant resilience can be produced in a long compression stroke, making the product optimal for the opening and closing of doors.
· Moreover, this product features spring action as well as attenuation action so the opening and closing speed of doors can be controlled with certainty.
The type (structure) of gas spring:Free Mounting Direction (Free Piston) Type
Rad Material:Steel
Material of cylinder:Steel
Rod Diameter d (Ø):7
Cylinder Outer Diameter D (Ø):15
Cylinder End Shape:Type C
Application:Industrial Equipment / OA equipment / Medical Equipment / Manufacturing machinery / General Furniture
Rod End Shape:Type C
Operating Environment:Indoors
Mounting Direction:All directions 360°
Operating Temperature Range (°C):-20::80
Types:Gas Springs
Main Body Color:Black
Part Numbers
| Part Number | Min. Length Lmin (mm) | Fa (N) | Fb (N) | Stroke S (mm) | Max. Length Lmax (mm) | Minimum order quantity |
| KSF50-5 | 196 | 49 | 64 | 50 | 246 | 1 Piece(s) |
| KSF50-10 | 196 | 98 | 127 | 50 | 246 | 1 Piece(s) |
| KSF50-15 | 196 | 147 | 189 | 50 | 246 | 1 Piece(s) |
| KSF70-5 | 246 | 49 | 64 | 70 | 316 | 1 Piece(s) |
| KSF80-5 | 250 | 49 | 66 | 80 | 330 | 1 Piece(s) |
| KSF80-10 | 250 | 98 | 131 | 80 | 330 | 1 Piece(s) |
| KSF80-15 | 250 | 147 | 196 | 80 | 330 | 1 Piece(s) |
| KSF90-5 | 270 | 49 | 66 | 90 | 360 | 1 Piece(s) |
| KSF90-10 | 270 | 98 | 130 | 90 | 360 | 1 Piece(s) |
| KSF90-15 | 270 | 147 | 195 | 90 | 360 | 1 Piece(s) |
| KSF100-5 | 286 | 49 | 67 | 100 | 386 | 1 Piece(s) |
| KSF100-10 | 286 | 98 | 132 | 100 | 386 | 1 Piece(s) |
