Grainger Heavy Duty Gas Struts

Short Description:

Gas springs and shock absorbers open and close doors, hatches, access panels, and other objects at steady and controlled speeds. They contain pressurized gas or liquids that provide smoother movement and make them less prone to wear than coiled metal springs. Gas springs, also known as gas struts or shocks, supply pushing or pulling force for lifting, lowering, and supporting objects such as vehicle tailgates, trunks, and machinery hatches. Shock absorbers, also called dampers, slow the motion of doors or lids, so they close gently and quietly to avoid damage.


Product Detail

OUR ADVANTAGE

CERTIFICATE

CUSTOMER COOPERATION

Product Tags

Gas Springs

cabinet gas strut

Gas springs are mechanical devices that use the pressure from compressed gas and liquids to assist in opening or closing objects such as windows, seats, covers, and car hatchbacks or trunks. They consist of a rod and piston housed in a cylinder, and when the pressure inside the cylinder is released, the rod moves outward, moving the object it is attached to. Also called gas shocks or gas struts, gas springs should be installed with the rod facing down to prevent the liquid inside the cylinder from drying out.

Stainless Steel Cylinder-End Fittings Not Included

Force Compressed Length Extended Length Cylinder Diameter Rod Diameter Thread Size
6 lbf 4-19/64 in 6-19/64 in 0.59 in 0.23 in M6x1.0
6 lbf 6-19/64 in 6-19/64 in 0.59 in 0.23 in M6x1.0
9 lbf 4-11/16 in 6-11/16 in 0.7 in 0.31 in M6x1.0
9 lbf 6-11/16 in 6-11/16 in 0.7 in 0.31 in M6x1.0
15 lbf 8-19/64 in 12-19/64 in 0.59 in 0.23 in M6x1.0
15 lbf 12-9/32 in 12-19/64 in 0.59 in 0.23 in M6x1.0
15 lbf 12-19/64 in 18-19/64 in 0.59 in 0.23 in M6x1.0
15 lbf 18-19/64 in 18-19/64 in 0.59 in 0.23 in M6x1.0
18 lbf 16-19/64 in 24-19/64 in 0.59 in 0.23 in M6x1.0
18 lbf 24-19/64 in 24-19/64 in 0.59 in 0.23 in M6x1.0
21 lbf 8-11/16 in 12-11/16 in 0.7 in 0.31 in M6x1.0
21 lbf 12-43/64 in 12-11/16 in 0.7 in 0.31 in M6x1.0
21 lbf 20-19/64 in 30-19/64 in 0.59 in 0.23 in M6x1.0
21 lbf 24-19/64 in 36-19/64 in 0.59 in 0.23 in M6x1.0
21 lbf 30-17/64 in 30-19/64 in 0.59 in 0.23 in M6x1.0
21 lbf 36-19/64 in 36-19/64 in 0.59 in 0.23 in M6x1.0
24 lbf 4-11/16 in 6-11/16 in 0.86 in 0.39 in M8x1.25
24 lbf 6-11/16 in 6-11/16 in 0.86 in 0.39 in M8x1.25
27 lbf 12-11/16 in 18-11/16 in 0.7 in 0.31 in M6x1.0
27 lbf 16-11/16 in 24-11/16 in 0.7 in 0.31 in M6x1.0
27 lbf 18-45/64 in 18-11/16 in 0.7 in 0.31 in M6x1.0
27 lbf 20-11/16 in 30-11/16 in 0.7 in 0.31 in M6x1.0
27 lbf 24-11/16 in 24-11/16 in 0.7 in 0.31 in M6x1.0
27 lbf 30-45/64 in 30-11/16 in 0.7 in 0.31 in M6x1.0
30 lbf 4-13/16 in 6-13/16 in 1.1 in 0.55 in M10x1.5
30 lbf 6-13/16 in 6-13/16 in 1.1 in 0.55 in M10x1.5
30 lbf 24-11/16 in 36-11/16 in 0.7 in 0.31 in M6x1.0
30 lbf 36-11/16 in 36-11/16 in 0.7 in 0.31 in M6x1.0
45 lbf 8-11/16 in 12-11/16 in 0.86 in 0.39 in M8x1.25
45 lbf 12-43/64 in 12-11/16 in 0.86 in 0.39 in M8x1.25
51 lbf 12-11/16 in 18-11/16 in 0.86 in 0.39 in M8x1.25
51 lbf 18-21/32 in 18-11/16 in 0.86 in 0.39 in M8x1.25
57 lbf 16-11/16 in 24-11/16 in 0.86 in 0.39 in M8x1.25
57 lbf 24-11/16 in 24-11/16 in 0.86 in 0.39 in M8x1.25
60 lbf 20-11/16 in 30-11/16 in 0.86 in 0.39 in M8x1.25
60 lbf 30-21/32 in 30-11/16 in 0.86 in 0.39 in M8x1.25
63 lbf 24-11/16 in 36-11/16 in 0.86 in 0.39 in M8x1.25
63 lbf 36-11/16 in 36-11/16 in 0.86 in 0.39 in M8x1.25
75 lbf 8-13/16 in 12-13/16 in 1.1 in 0.55 in M10x1.5
75 lbf 12-53/64 in 12-13/16 in 1.1 in 0.55 in M10x1.5
90 lbf 8-13/16 in 12-13/16 in 1.1 in 0.55 in M10x1.5
90 lbf 12-13/16 in 18-13/16 in 1.1 in 0.55 in M10x1.5
90 lbf 12-53/64 in 12-13/16 in 1.1 in 0.55 in M10x1.5
90 lbf 18-13/16 in 18-13/16 in 1.1 in 0.55 in M10x1.5
96 lbf 16-13/16 in 24-13/16 in 1.1 in 0.55 in M10x1.5
96 lbf 24-51/64 in 24-13/16 in 1.1 in 0.55 in M10x1.5
105 lbf 20-13/16 in 30-13/16 in 1.1 in 0.55 in M10x1.5
105 lbf 24-13/16 in 36-13/16 in 1.1 in 0.55 in M10x1.5
105 lbf 30-13/16 in 30-13/16 in 1.1 in 0.55 in M10x1.5
105 lbf 36-13/16 in 36-13/16 in 1.1 in 0.55 in M10x1.5
119 lbf 12-13/16 in 18-13/16 in 1.1 in 0.55 in M10x1.5
119 lbf 18-13/16 in 18-13/16 in 1.1 in 0.55 in M10x1.5
182 lbf 18-13/16 in 18-13/16 in 1.1 in 0.55 in M10x1.5
212 lbf 18-13/16 in 18-13/16 in 1.1 in 0.55 in M10x1.5
278 lbf 30-13/16 in 30-13/16 in 1.1 in 0.55 in M10x1.5
338 lbf 24-51/64 in 24-13/16 in 1.1 in 0.55 in M10x1.5
372 lbf 24-51/64 in 24-13/16 in 1.1 in 0.55 in M10x1.5
390 lbf 30-13/16 in 30-13/16 in 1.1 in 0.55 in M10x1.5

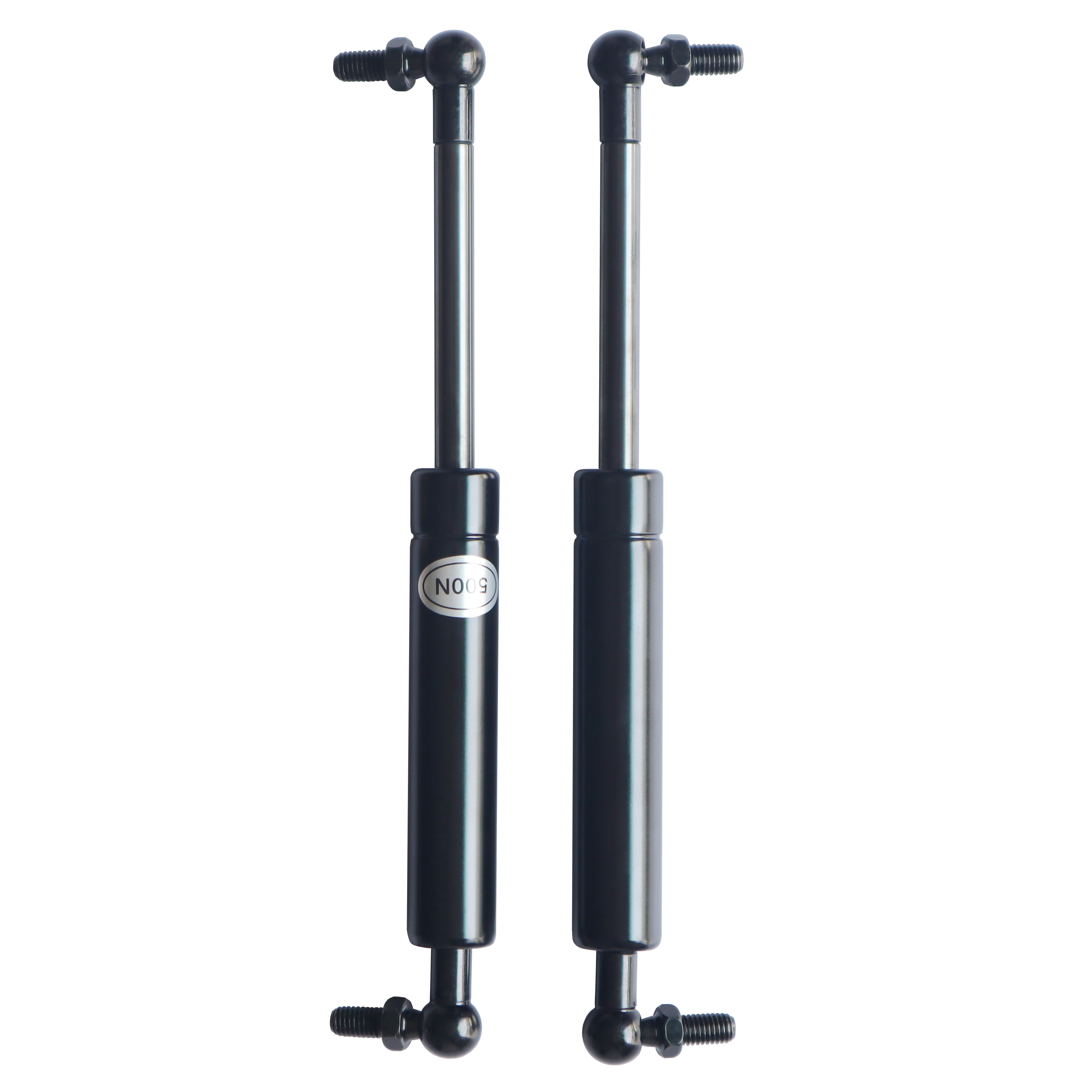

Steel Cylinder-Ball Socket End Fittings Included

Force Compressed Length Extended Length Cylinder Diameter Rod Diameter Thread Size
600 lbf 14-3/32 in 23-13/16 in 22 in 22 mm M8

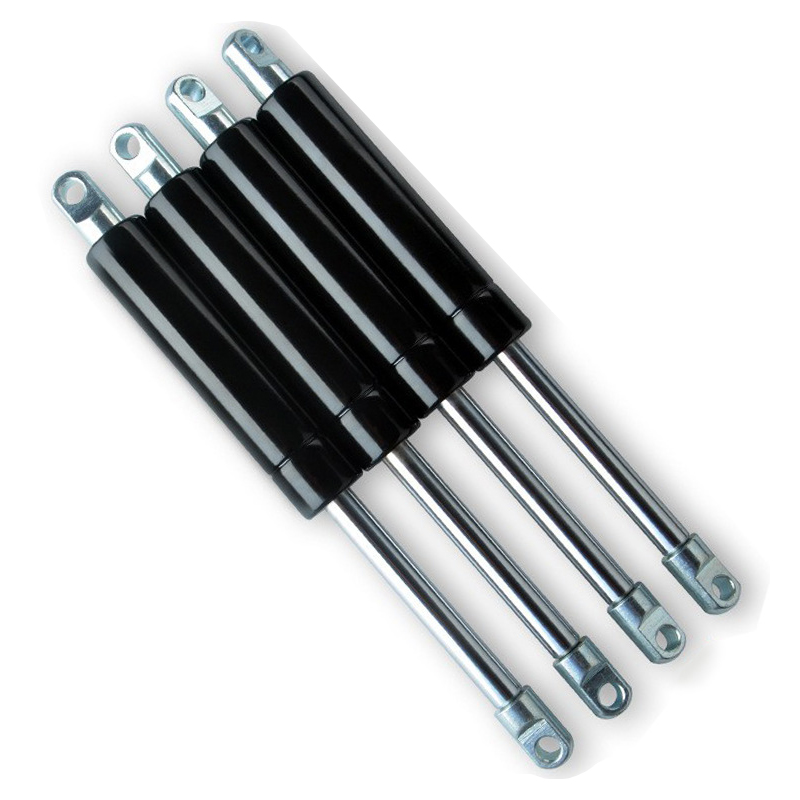

Hinge Eye End Fittings Included

Force Compressed Length Extended Length Cylinder Diameter Rod Diameter Thread Size
11.2 lbf 3-3/8 in 4-11/64 in 0.59 in 0.24 in ————
11.2 lbf 4-11/64 in 5-47/64 in 0.59 in 0.24 in ————
11.2 lbf 4-29/32 in 6-1/2 in 0.59 in 0.24 in ————
11.2 lbf 4-61/64 in 7-5/16 in 0.59 in 0.24 in ————
11.2 lbf 5-3/4 in 8-29/32 in 0.59 in 0.24 in ————
11.2 lbf 6-29/64 in 10-25/64 in 0.59 in 0.24 in ————
11.2 lbf 7-19/64 in 12-1/64 in 0.59 in 0.24 in ————
11.2 lbf 8-1/2 in 14-13/32 in 0.59 in 0.24 in ————
22.5 lbf 3-3/8 in 4-11/64 in 0.59 in 0.24 in ————
22.5 lbf 4-11/64 in 5-47/64 in 0.59 in 0.24 in ————
22.5 lbf 4-29/32 in 6-1/2 in 0.59 in 0.24 in ————
22.5 lbf 4-61/64 in 7-5/16 in 0.59 in 0.24 in ————
22.5 lbf 5-3/4 in 8-7/64 in 0.71 in 0.32 in ————
22.5 lbf 5-3/4 in 8-29/32 in 0.59 in 0.24 in ————
22.5 lbf 6-29/64 in 10-25/64 in 0.59 in 0.24 in ————
22.5 lbf 6-35/64 in 9-11/16 in 0.71 in 0.32 in ————
22.5 lbf 6-27/32 in 10 in 0.71 in 0.32 in ————
22.5 lbf 7-19/64 in 12-1/64 in 0.59 in 0.24 in ————
22.5 lbf 7-5/16 in 11-17/64 in 0.71 in 0.32 in ————
22.5 lbf 8-7/64 in 12-53/64 in 0.71 in 0.32 in ————
22.5 lbf 8-1/2 in 14-13/32 in 0.59 in 0.24 in ————
22.5 lbf 8-29/32 in 14-13/32 in 0.71 in 0.32 in ————
22.5 lbf 9-7/64 in 15 in 0.71 in 0.32 in ————
22.5 lbf 9-51/64 in 16-3/32 in 0.71 in 0.32 in ————
22.5 lbf 10-33/64 in 17-19/32 in 0.71 in 0.32 in ————
22.5 lbf 11-17/64 in 19-1/8 in 0.71 in 0.32 in ————
22.5 lbf 11-39/64 in 20 in 0.71 in 0.32 in ————
22.5 lbf 12-3/64 in 20-45/64 in 0.71 in 0.32 in ————
22.5 lbf 13-15/64 in 23-1/16 in 0.71 in 0.32 in ————
33.7 lbf 3-3/8 in 4-11/64 in 0.59 in 0.24 in ————
33.7 lbf 4-11/64 in 5-47/64 in 0.59 in 0.24 in ————
33.7 lbf 4-29/32 in 6-1/2 in 0.59 in 0.24 in ————
33.7 lbf 4-61/64 in 7-5/16 in 0.59 in 0.24 in ————
33.7 lbf 5-3/4 in 8-7/64 in 0.71 in 0.32 in ————
33.7 lbf 5-3/4 in 8-29/32 in 0.59 in 0.24 in ————
33.7 lbf 6-29/64 in 10-25/64 in 0.59 in 0.24 in ————
33.7 lbf 6-35/64 in 9-11/16 in 0.71 in 0.32 in ————
33.7 lbf 6-27/32 in 10 in 0.71 in 0.32 in ————
33.7 lbf 7-19/64 in 12-1/64 in 0.59 in 0.24 in ————
33.7 lbf 7-5/16 in 11-17/64 in 0.71 in 0.32 in ————
33.7 lbf 7-33/64 in 11-17/64 in 0.87 in 0.39 in ————
33.7 lbf 8-7/64 in 12-53/64 in 0.71 in 0.32 in ————
33.7 lbf 8-1/2 in 14-13/32 in 0.59 in 0.24 in ————
33.7 lbf 8-29/32 in 14-13/32 in 0.71 in 0.32 in ————
33.7 lbf 9-7/64 in 15 in 0.71 in 0.32 in ————
33.7 lbf 9-1/4 in 15-5/32 in 0.87 in 0.39 in ————
33.7 lbf 9-51/64 in 16-3/32 in 0.71 in 0.32 in ————
33.7 lbf 10-33/64 in 17-19/32 in 0.71 in 0.32 in ————
33.7 lbf 11-17/64 in 19-1/8 in 0.71 in 0.32 in ————
33.7 lbf 11-17/64 in 19-1/8 in 0.87 in 0.39 in ————
33.7 lbf 11-39/64 in 20 in 0.71 in 0.32 in ————
33.7 lbf 12-3/64 in 20-45/64 in 0.71 in 0.32 in ————
33.7 lbf 13-15/64 in 23-1/16 in 0.71 in 0.32 in ————
33.7 lbf 13-15/64 in 23-1/16 in 0.87 in 0.39 in ————
33.7 lbf 15-5/32 in 26-31/32 in 0.87 in 0.39 in ————
33.7 lbf 17-1/8 in 30-29/32 in 0.87 in 0.39 in ————
33.7 lbf 19-3/32 in 34-27/32 in 0.87 in 0.39 in ————
45 lbf 3-3/8 in 4-11/64 in 0.59 in 0.24 in ————
45 lbf 4-11/64 in 5-47/64 in 0.59 in 0.24 in ————
45 lbf 4-29/32 in 6-1/2 in 0.59 in 0.24 in ————
45 lbf 4-61/64 in 7-5/16 in 0.59 in 0.24 in ————
45 lbf 5-3/4 in 8-7/64 in 0.71 in 0.32 in ————
45 lbf 5-3/4 in 8-29/32 in 0.59 in 0.24 in ————
45 lbf 6-29/64 in 10-25/64 in 0.59 in 0.24 in ————
45 lbf 6-35/64 in 9-11/16 in 0.71 in 0.32 in ————
45 lbf 6-27/32 in 10 in 0.71 in 0.32 in ————
45 lbf 7-19/64 in 12-1/64 in 0.59 in 0.24 in ————
45 lbf 7-5/16 in 11-17/64 in 0.71 in 0.32 in ————
45 lbf 7-33/64 in 11-17/64 in 0.87 in 0.39 in ————
45 lbf 8-7/64 in 12-53/64 in 0.71 in 0.32 in ————
45 lbf 8-1/2 in 14-13/32 in 0.59 in 0.24 in ————
45 lbf 8-29/32 in 14-13/32 in 0.71 in 0.32 in ————
45 lbf 9-7/64 in 15 in 0.71 in 0.32 in ————
45 lbf 9-1/4 in 15-5/32 in 0.87 in 0.39 in ————
45 lbf 9-51/64 in 16-3/32 in 0.71 in 0.32 in ————
45 lbf 10-33/64 in 17-19/32 in 0.71 in 0.32 in ————
45 lbf 11-17/64 in 19-1/8 in 0.71 in 0.32 in ————
45 lbf 11-17/64 in 19-1/8 in 0.87 in 0.39 in ————
45 lbf 11-39/64 in 20 in 0.71 in 0.32 in ————
45 lbf 12-3/64 in 20-45/64 in 0.71 in 0.32 in ————
45 lbf 13-15/64 in 23-1/16 in 0.71 in 0.32 in ————
45 lbf 13-15/64 in 23-1/16 in 0.87 in 0.39 in ————
45 lbf 15-5/32 in 26-31/32 in 0.87 in 0.39 in ————
45 lbf 17-1/8 in 30-29/32 in 0.87 in 0.39 in ————
45 lbf 19-3/32 in 34-27/32 in 0.87 in 0.39 in ————
56.2 lbf 9-1/4 in 15-5/32 in 0.87 in 0.39 in ————
56.2 lbf 9-51/64 in 16-3/32 in 0.71 in 0.32 in ————
56.2 lbf 10-33/64 in 17-19/32 in 0.71 in 0.32 in ————
56.2 lbf 11-17/64 in 19-1/8 in 0.71 in 0.32 in ————
56.2 lbf 11-17/64 in 19-1/8 in 0.87 in 0.39 in ————
56.2 lbf 11-39/64 in 20 in 0.71 in 0.32 in ————
56.2 lbf 12-3/64 in 20-45/64 in 0.71 in 0.32 in ————
56.2 lbf 13-15/64 in 23-1/16 in 0.71 in 0.32 in ————
56.2 lbf 13-15/64 in 23-1/16 in 0.87 in 0.39 in ————
56.2 lbf 15-5/32 in 26-31/32 in 0.87 in 0.39 in ————
56.2 lbf 17-1/8 in 30-29/32 in 0.87 in 0.39 in ————
56.2 lbf 19-3/32 in 34-27/32 in 0.87 in 0.39 in ————
67.4 lbf 3-3/8 in 4-11/64 in 0.59 in 0.24 in ————
67.4 lbf 4-11/64 in 5-47/64 in 0.59 in 0.24 in ————
67.4 lbf 4-29/32 in 6-1/2 in 0.59 in 0.24 in ————
67.4 lbf 4-61/64 in 7-5/16 in 0.59 in 0.24 in ————
67.4 lbf 5-3/4 in 8-7/64 in 0.71 in 0.32 in ————
67.4 lbf 5-3/4 in 8-29/32 in 0.59 in 0.24 in ————
67.4 lbf 6-29/64 in 10-25/64 in 0.59 in 0.24 in ————
67.4 lbf 6-35/64 in 9-11/16 in 0.71 in 0.32 in ————
67.4 lbf 6-27/32 in 10 in 0.71 in 0.32 in ————
67.4 lbf 7-19/64 in 12-1/64 in 0.59 in 0.24 in ————
67.4 lbf 7-5/16 in 11-17/64 in 0.71 in 0.32 in ————
67.4 lbf 7-33/64 in 11-17/64 in 0.87 in 0.39 in ————
67.4 lbf 8-7/64 in 12-53/64 in 0.71 in 0.32 in ————
67.4 lbf 8-1/2 in 14-13/32 in 0.59 in 0.24 in ————
67.4 lbf 8-29/32 in 14-13/32 in 0.71 in 0.32 in ————
67.4 lbf 9-7/64 in 15 in 0.71 in 0.32 in ————
67.4 lbf 9-1/4 in 15-5/32 in 0.87 in 0.39 in ————
67.4 lbf 9-51/64 in 16-3/32 in 0.71 in 0.32 in ————
67.4 lbf 10-33/64 in 17-19/32 in 0.71 in 0.32 in ————
67.4 lbf 11-17/64 in 19-1/8 in 0.71 in 0.32 in ————
67.4 lbf 11-17/64 in 19-1/8 in 0.87 in 0.39 in ————
67.4 lbf 11-39/64 in 20 in 0.71 in 0.32 in ————
67.4 lbf 12-3/64 in 20-45/64 in 0.71 in 0.32 in ————
67.4 lbf 13-15/64 in 23-1/16 in 0.71 in 0.32 in ————
67.4 lbf 13-15/64 in 23-1/16 in 0.87 in 0.39 in ————
67.4 lbf 15-5/32 in 26-31/32 in 0.87 in 0.39 in ————
67.4 lbf 17-1/8 in 30-29/32 in 0.87 in 0.39 in ————
67.4 lbf 19-3/32 in 34-27/32 in 0.87 in 0.39 in ————
78.7 lbf 3-3/8 in 4-11/64 in 0.59 in 0.24 in ————
78.7 lbf 4-11/64 in 5-47/64 in 0.59 in 0.24 in ————
78.7 lbf 4-29/32 in 6-1/2 in 0.59 in 0.24 in ————
78.7 lbf 4-61/64 in 7-5/16 in 0.59 in 0.24 in ————
78.7 lbf 5-3/4 in 8-7/64 in 0.71 in 0.32 in ————
78.7 lbf 5-3/4 in 8-29/32 in 0.59 in 0.24 in ————
78.7 lbf 6-29/64 in 10-25/64 in 0.59 in 0.24 in ————
78.7 lbf 6-35/64 in 9-11/16 in 0.71 in 0.32 in ————
78.7 lbf 6-27/32 in 10 in 0.71 in 0.32 in ————
78.7 lbf 7-19/64 in 12-1/64 in 0.59 in 0.24 in ————
78.7 lbf 7-5/16 in 11-17/64 in 0.71 in 0.32 in ————
78.7 lbf 7-33/64 in 11-17/64 in 0.87 in 0.39 in ————
78.7 lbf 8-7/64 in 12-53/64 in 0.71 in 0.32 in ————
78.7 lbf 8-1/2 in 14-13/32 in 0.59 in 0.24 in ————
78.7 lbf 8-29/32 in 14-13/32 in 0.71 in 0.32 in ————
78.7 lbf 9-7/64 in 15 in 0.71 in 0.32 in ————
78.7 lbf 9-1/4 in 15-5/32 in 0.87 in 0.39 in ————
78.7 lbf 9-51/64 in 16-3/32 in 0.71 in 0.32 in ————
78.7 lbf 10-33/64 in 17-19/32 in 0.71 in 0.32 in ————
78.7 lbf 11-17/64 in 19-1/8 in 0.71 in 0.32 in ————
78.7 lbf 11-17/64 in 19-1/8 in 0.87 in 0.39 in ————
78.7 lbf 11-39/64 in 20 in 0.71 in 0.32 in ————
78.7 lbf 12-3/64 in 20-45/64 in 0.71 in 0.32 in ————
78.7 lbf 13-15/64 in 23-1/16 in 0.71 in 0.32 in ————
78.7 lbf 13-15/64 in 23-1/16 in 0.87 in 0.39 in ————
78.7 lbf 15-5/32 in 26-31/32 in 0.87 in 0.39 in ————
78.7 lbf 17-1/8 in 30-29/32 in 0.87 in 0.39 in ————
78.7 lbf 19-3/32 in 34-27/32 in 0.87 in 0.39 in ————
89.9 lbf 5-3/4 in 8-7/64 in 0.71 in 0.32 in ————
89.9 lbf 6-35/64 in 9-11/16 in 0.71 in 0.32 in ————
89.9 lbf 6-27/32 in 10 in 0.71 in 0.32 in ————
89.9 lbf 7-5/16 in 11-17/64 in 0.71 in 0.32 in ————
89.9 lbf 7-33/64 in 11-17/64 in 0.87 in 0.39 in ————
89.9 lbf 8-7/64 in 12-53/64 in 0.71 in 0.32 in ————
89.9 lbf 8-29/32 in 14-13/32 in 0.71 in 0.32 in ————
89.9 lbf 9-7/64 in 15 in 0.71 in 0.32 in ————
89.9 lbf 9-1/4 in 15-5/32 in 0.87 in 0.39 in ————
89.9 lbf 9-51/64 in 16-3/32 in 0.71 in 0.32 in ————
89.9 lbf 10-33/64 in 17-19/32 in 0.71 in 0.32 in ————
89.9 lbf 11-17/64 in 19-1/8 in 0.71 in 0.32 in ————
89.9 lbf 11-17/64 in 19-1/8 in 0.87 in 0.39 in ————
89.9 lbf 11-39/64 in 20 in 0.71 in 0.32 in ————
89.9 lbf 12-3/64 in 20-45/64 in 0.71 in 0.32 in ————
89.9 lbf 13-15/64 in 23-1/16 in 0.71 in 0.32 in ————
89.9 lbf 13-15/64 in 23-1/16 in 0.87 in 0.39 in ————
89.9 lbf 15-5/32 in 26-31/32 in 0.87 in 0.39 in ————
89.9 lbf 17-1/8 in 30-29/32 in 0.87 in 0.39 in ————
89.9 lbf 19-3/32 in 34-27/32 in 0.87 in 0.39 in ————
101.2 lbf 5-3/4 in 8-7/64 in 0.71 in 0.32 in ————
101.2 lbf 6-35/64 in 9-11/16 in 0.71 in 0.32 in ————
101.2 lbf 6-27/32 in 10 in 0.71 in 0.32 in ————
101.2 lbf 7-5/16 in 11-17/64 in 0.71 in 0.32 in ————
101.2 lbf 7-33/64 in 11-17/64 in 0.87 in 0.39 in ————
101.2 lbf 8-7/64 in 12-53/64 in 0.71 in 0.32 in ————
101.2 lbf 8-29/32 in 14-13/32 in 0.71 in 0.32 in ————
101.2 lbf 9-7/64 in 15 in 0.71 in 0.32 in ————
101.2 lbf 9-1/4 in 15-5/32 in 0.87 in 0.39 in ————
101.2 lbf 9-51/64 in 16-3/32 in 0.71 in 0.32 in ————
101.2 lbf 10-33/64 in 17-19/32 in 0.71 in 0.32 in ————
101.2 lbf 11-17/64 in 19-1/8 in 0.71 in 0.32 in ————
101.2 lbf 11-17/64 in 19-1/8 in 0.87 in 0.39 in ————
101.2 lbf 11-39/64 in 20 in 0.71 in 0.32 in ————
101.2 lbf 12-3/64 in 20-45/64 in 0.71 in 0.32 in ————
101.2 lbf 13-15/64 in 23-1/16 in 0.71 in 0.32 in ————
101.2 lbf 13-15/64 in 23-1/16 in 0.87 in 0.39 in ————
101.2 lbf 15-5/32 in 26-31/32 in 0.87 in 0.39 in ————
101.2 lbf 17-1/8 in 30-29/32 in 0.87 in 0.39 in ————
101.2 lbf 19-3/32 in 34-27/32 in 0.87 in 0.39 in ————
112.4 lbf 5-3/4 in 8-7/64 in 0.71 in 0.32 in ————
112.4 lbf 6-35/64 in 9-11/16 in 0.71 in 0.32 in ————
112.4 lbf 6-27/32 in 10 in 0.71 in 0.32 in ————
112.4 lbf 7-5/16 in 11-17/64 in 0.71 in 0.32 in ————
112.4 lbf 7-33/64 in 11-17/64 in 0.87 in 0.39 in ————
112.4 lbf 8-7/64 in 12-53/64 in 0.71 in 0.32 in ————
112.4 lbf 8-29/32 in 14-13/32 in 0.71 in 0.32 in ————
112.4 lbf 9-7/64 in 15 in 0.71 in 0.32 in ————
112.4 lbf 9-1/4 in 15-5/32 in 0.87 in 0.39 in ————
112.4 lbf 9-51/64 in 16-3/32 in 0.71 in 0.32 in ————
112.4 lbf 10-33/64 in 17-19/32 in 0.71 in 0.32 in ————
112.4 lbf 11-17/64 in 19-1/8 in 0.71 in 0.32 in ————
112.4 lbf 11-17/64 in 19-1/8 in 0.87 in 0.39 in ————
112.4 lbf 11-39/64 in 20 in 0.71 in 0.32 in ————
112.4 lbf 12-3/64 in 20-45/64 in 0.71 in 0.32 in ————
112.4 lbf 13-15/64 in 23-1/16 in 0.71 in 0.32 in ————
112.4 lbf 13-15/64 in 23-1/16 in 0.87 in 0.39 in ————
112.4 lbf 15-5/32 in 26-31/32 in 0.87 in 0.39 in ————
112.4 lbf 17-1/8 in 30-29/32 in 0.87 in 0.39 in ————
112.4 lbf 19-3/32 in 34-27/32 in 0.87 in 0.39 in ————
123.7 lbf 5-3/4 in 8-7/64 in 0.71 in 0.32 in ————
123.7 lbf 6-35/64 in 9-11/16 in 0.71 in 0.32 in ————
123.7 lbf 6-27/32 in 10 in 0.71 in 0.32 in ————
123.7 lbf 7-5/16 in 11-17/64 in 0.71 in 0.32 in ————
123.7 lbf 7-33/64 in 11-17/64 in 0.87 in 0.39 in ————
123.7 lbf 8-7/64 in 12-53/64 in 0.71 in 0.32 in ————
123.7 lbf 8-29/32 in 14-13/32 in 0.71 in 0.32 in ————
123.7 lbf 9-7/64 in 15 in 0.71 in 0.32 in ————
123.7 lbf 9-1/4 in 15-5/32 in 0.87 in 0.39 in ————
123.7 lbf 9-51/64 in 16-3/32 in 0.71 in 0.32 in ————
123.7 lbf 10-33/64 in 17-19/32 in 0.71 in 0.32 in ————
123.7 lbf 11-17/64 in 19-1/8 in 0.71 in 0.32 in ————
123.7 lbf 11-17/64 in 19-1/8 in 0.87 in 0.39 in ————
123.7 lbf 11-39/64 in 20 in 0.71 in 0.32 in ————
123.7 lbf 12-3/64 in 20-45/64 in 0.71 in 0.32 in ————
123.7 lbf 13-15/64 in 23-1/16 in 0.71 in 0.32 in ————
123.7 lbf 13-15/64 in 23-1/16 in 0.87 in 0.39 in ————
123.7 lbf 15-5/32 in 26-31/32 in 0.87 in 0.39 in ————
123.7 lbf 17-1/8 in 30-29/32 in 0.87 in 0.39 in ————
123.7 lbf 19-3/32 in 34-27/32 in 0.87 in 0.39 in ————
134.9 lbf 5-3/4 in 8-7/64 in 0.71 in 0.32 in ————
134.9 lbf 6-35/64 in 9-11/16 in 0.71 in 0.32 in ————
134.9 lbf 6-27/32 in 10 in 0.71 in 0.32 in ————
134.9 lbf 7-5/16 in 11-17/64 in 0.71 in 0.32 in ————
134.9 lbf 7-33/64 in 11-17/64 in 0.87 in 0.39 in ————
134.9 lbf 8-7/64 in 12-53/64 in 0.71 in 0.32 in ————
134.9 lbf 8-29/32 in 14-13/32 in 0.71 in 0.32 in ————
134.9 lbf 9-7/64 in 15 in 0.71 in 0.32 in ————
134.9 lbf 9-1/4 in 15-5/32 in 0.87 in 0.39 in ————
134.9 lbf 9-51/64 in 16-3/32 in 0.71 in 0.32 in ————
134.9 lbf 10-33/64 in 17-19/32 in 0.71 in 0.32 in ————
134.9 lbf 11-17/64 in 19-1/8 in 0.71 in 0.32 in ————
134.9 lbf 11-17/64 in 19-1/8 in 0.87 in 0.39 in ————
134.9 lbf 11-39/64 in 20 in 0.71 in 0.32 in ————
134.9 lbf 12-3/64 in 20-45/64 in 0.71 in 0.32 in ————
134.9 lbf 13-15/64 in 23-1/16 in 0.71 in 0.32 in ————
134.9 lbf 13-15/64 in 23-1/16 in 0.87 in 0.39 in ————
134.9 lbf 15-5/32 in 26-31/32 in 0.87 in 0.39 in ————
134.9 lbf 17-1/8 in 30-29/32 in 0.87 in 0.39 in ————
134.9 lbf 19-3/32 in 34-27/32 in 0.87 in 0.39 in ————
146.1 lbf 5-3/4 in 8-7/64 in 0.71 in 0.32 in ————
146.1 lbf 6-35/64 in 9-11/16 in 0.71 in 0.32 in ————
146.1 lbf 6-27/32 in 10 in 0.71 in 0.32 in ————
146.1 lbf 7-5/16 in 11-17/64 in 0.71 in 0.32 in ————
146.1 lbf 7-33/64 in 11-17/64 in 0.87 in 0.39 in ————
146.1 lbf 8-7/64 in 12-53/64 in 0.71 in 0.32 in ————
146.1 lbf 8-29/32 in 14-13/32 in 0.71 in 0.32 in ————
146.1 lbf 9-7/64 in 15 in 0.71 in 0.32 in ————
146.1 lbf 9-1/4 in 15-5/32 in 0.87 in 0.39 in ————
146.1 lbf 9-51/64 in 16-3/32 in 0.71 in 0.32 in ————
146.1 lbf 10-33/64 in 17-19/32 in 0.71 in 0.32 in ————
146.1 lbf 11-17/64 in 19-1/8 in 0.71 in 0.32 in ————
146.1 lbf 11-17/64 in 19-1/8 in 0.87 in 0.39 in ————
146.1 lbf 11-39/64 in 20 in 0.71 in 0.32 in ————
146.1 lbf 12-3/64 in 20-45/64 in 0.71 in 0.32 in ————
146.1 lbf 13-15/64 in 23-1/16 in 0.71 in 0.32 in ————
146.1 lbf 13-15/64 in 23-1/16 in 0.87 in 0.39 in ————
146.1 lbf 15-5/32 in 26-31/32 in 0.87 in 0.39 in ————
146.1 lbf 17-1/8 in 30-29/32 in 0.87 in 0.39 in ————
146.1 lbf 19-3/32 in 34-27/32 in 0.87 in 0.39 in ————
157.4 lbf 7-33/64 in 11-17/64 in 0.87 in 0.39 in ————
157.4 lbf 9-1/4 in 15-5/32 in 0.87 in 0.39 in ————
157.4 lbf 11-17/64 in 19-1/8 in 0.87 in 0.39 in ————
157.4 lbf 13-15/64 in 23-1/16 in 0.87 in 0.39 in ————
157.4 lbf 15-5/32 in 26-31/32 in 0.87 in 0.39 in ————
157.4 lbf 17-1/8 in 30-29/32 in 0.87 in 0.39 in ————
157.4 lbf 19-3/32 in 34-27/32 in 0.87 in 0.39 in ————
168.6 lbf 7-33/64 in 11-17/64 in 0.87 in 0.39 in ————
168.6 lbf 9-1/4 in 15-5/32 in 0.87 in 0.39 in ————
168.6 lbf 11-17/64 in 19-1/8 in 0.87 in 0.39 in ————
168.6 lbf 13-15/64 in 23-1/16 in 0.87 in 0.39 in ————
168.6 lbf 15-5/32 in 26-31/32 in 0.87 in 0.39 in ————
168.6 lbf 17-1/8 in 30-29/32 in 0.87 in 0.39 in ————
168.6 lbf 19-3/32 in 34-27/32 in 0.87 in 0.39 in ————
179.8 lbf 7-33/64 in 11-17/64 in 0.87 in 0.39 in ————
179.8 lbf 9-1/4 in 15-5/32 in 0.87 in 0.39 in ————
179.8 lbf 11-17/64 in 19-1/8 in 0.87 in 0.39 in ————
179.8 lbf 13-15/64 in 23-1/16 in 0.87 in 0.39 in ————
179.8 lbf 15-5/32 in 26-31/32 in 0.87 in 0.39 in ————
179.8 lbf 17-1/8 in 30-29/32 in 0.87 in 0.39 in ————
179.8 lbf 19-3/32 in 34-27/32 in 0.87 in 0.39 in ————

End Fittings Not Included

Force Compressed Length Extended Length Cylinder Diameter Rod Diameter Thread Size
6 lbf 4-19/64 in 6-19/64 in 0.59 in 0.23 in M6x1.0
6 lbf 6-19/64 in 6-19/64 in 0.59 in 0.23 in M6x1.0
9 lbf 4-11/16 in 6-11/16 in 0.7 in 0.31 in M6x1.0
9 lbf 6-11/16 in 6-11/16 in 0.7 in 0.31 in M6x1.0
15 lbf 8-19/64 in 12-19/64 in 0.59 in 0.23 in M6x1.0
15 lbf 12-9/32 in 12-19/64 in 0.59 in 0.23 in M6x1.0
15 lbf 12-19/64 in 18-19/64 in 0.59 in 0.23 in M6x1.0
15 lbf 18-19/64 in 18-19/64 in 0.59 in 0.23 in M6x1.0
18 lbf 16-19/64 in 24-19/64 in 0.59 in 0.23 in M6x1.0
18 lbf 24-19/64 in 24-19/64 in 0.59 in 0.23 in M6x1.0
20 lbf 55 mm 65 mm 16 mm 6 mm M16
20 lbf 55 mm 65 mm 16 mm 6 mm M16x2
20 lbf 65 mm 85 mm 16 mm 6 mm M16
20 lbf 65 mm 85 mm 16 mm 6 mm M16x2
20 lbf 75 mm 105 mm 16 mm 6 mm M16
20 lbf 75 mm 105 mm 16 mm 6 mm M16x2
20 lbf 85 mm 125 mm 16 mm 6 mm M16
20 lbf 85 mm 125 mm 16 mm 6 mm M16x2
20 lbf 95 mm 145 mm 16 mm 6 mm M16
20 lbf 95 mm 145 mm 16 mm 6 mm M16x2
20 lbf 105 mm 165 mm 16 mm 6 mm M16
20 lbf 105 mm 165 mm 16 mm 6 mm M16x2
20 lbf 115 mm 185 mm 16 mm 6 mm M16
20 lbf 115 mm 185 mm 16 mm 6 mm M16x2
20 lbf 125 mm 205 mm 16 mm 6 mm M16
20 lbf 125 mm 205 mm 16 mm 6 mm M16x2
20 lbf 145 mm 245 mm 16 mm 6 mm M16
20 lbf 145 mm 245 mm 16 mm 6 mm M16x2
20 lbf 170 mm 295 mm 16 mm 6 mm M16
20 lbf 170 mm 295 mm 16 mm 6 mm M16x2
21 lbf 8-11/16 in 12-11/16 in 0.7 in 0.31 in M6x1.0
21 lbf 12-43/64 in 12-11/16 in 0.7 in 0.31 in M6x1.0
21 lbf 20-19/64 in 30-19/64 in 0.59 in 0.23 in M6x1.0
21 lbf 24-19/64 in 36-19/64 in 0.59 in 0.23 in M6x1.0
21 lbf 30-17/64 in 30-19/64 in 0.59 in 0.23 in M6x1.0
21 lbf 36-19/64 in 36-19/64 in 0.59 in 0.23 in M6x1.0
24 lbf 4-11/16 in 6-11/16 in 0.86 in 0.39 in M8x1.25
24 lbf 6-11/16 in 6-11/16 in 0.86 in 0.39 in M8x1.25
27 lbf 12-11/16 in 18-11/16 in 0.7 in 0.31 in M6x1.0
27 lbf 16-11/16 in 24-11/16 in 0.7 in 0.31 in M6x1.0
27 lbf 18-45/64 in 18-11/16 in 0.7 in 0.31 in M6x1.0
27 lbf 20-11/16 in 30-11/16 in 0.7 in 0.31 in M6x1.0
27 lbf 24-11/16 in 24-11/16 in 0.7 in 0.31 in M6x1.0
27 lbf 30-45/64 in 30-11/16 in 0.7 in 0.31 in M6x1.0
30 lbf 4-13/16 in 6-13/16 in 1.1 in 0.55 in M10x1.5
30 lbf 6-13/16 in 6-13/16 in 1.1 in 0.55 in M10x1.5
30 lbf 24-11/16 in 36-11/16 in 0.7 in 0.31 in M6x1.0
30 lbf 36-11/16 in 36-11/16 in 0.7 in 0.31 in M6x1.0
40 lbf 55 mm 65 mm 16 mm 6 mm M16
40 lbf 55 mm 65 mm 16 mm 6 mm M16x2
40 lbf 65 mm 85 mm 16 mm 6 mm M16
40 lbf 65 mm 85 mm 16 mm 6 mm M16x2
40 lbf 75 mm 105 mm 16 mm 6 mm M16
40 lbf 75 mm 105 mm 16 mm 6 mm M16x2
40 lbf 85 mm 125 mm 16 mm 6 mm M16
40 lbf 85 mm 125 mm 16 mm 6 mm M16x2
40 lbf 95 mm 145 mm 16 mm 6 mm M16
40 lbf 95 mm 145 mm 16 mm 6 mm M16x2
40 lbf 105 mm 165 mm 16 mm 6 mm M16
40 lbf 105 mm 165 mm 16 mm 6 mm M16x2
40 lbf 115 mm 185 mm 16 mm 6 mm M16
40 lbf 115 mm 185 mm 16 mm 6 mm M16x2
40 lbf 125 mm 205 mm 16 mm 6 mm M16
40 lbf 125 mm 205 mm 16 mm 6 mm M16x2
40 lbf 145 mm 245 mm 16 mm 6 mm M16
40 lbf 145 mm 245 mm 16 mm 6 mm M16x2
40 lbf 170 mm 295 mm 16 mm 6 mm M16
40 lbf 170 mm 295 mm 16 mm 6 mm M16x2
45 lbf 8-11/16 in 12-11/16 in 0.86 in 0.39 in M8x1.25
45 lbf 12-43/64 in 12-11/16 in 0.86 in 0.39 in M8x1.25
51 lbf 12-11/16 in 18-11/16 in 0.86 in 0.39 in M8x1.25
51 lbf 18-21/32 in 18-11/16 in 0.86 in 0.39 in M8x1.25
57 lbf 16-11/16 in 24-11/16 in 0.86 in 0.39 in M8x1.25
57 lbf 24-11/16 in 24-11/16 in 0.86 in 0.39 in M8x1.25
60 lbf 20-11/16 in 30-11/16 in 0.86 in 0.39 in M8x1.25
60 lbf 30-21/32 in 30-11/16 in 0.86 in 0.39 in M8x1.25
63 lbf 24-11/16 in 36-11/16 in 0.86 in 0.39 in M8x1.25
63 lbf 36-11/16 in 36-11/16 in 0.86 in 0.39 in M8x1.25
75 lbf 8-13/16 in 12-13/16 in 1.1 in 0.55 in M10x1.5
75 lbf 12-53/64 in 12-13/16 in 1.1 in 0.55 in M10x1.5
90 lbf 2-9/64 in 2-17/32 in 24 mm 12 mm M24x1.5
90 lbf 2-9/64 in 2-17/32 in 24 mm 12 mm M24x1.5
90 lbf 2-3/8 in 3 in 24 mm 12 mm M24x1.5
90 lbf 2-17/32 in 3-5/16 in 24 mm 12 mm M24x1.5
90 lbf 2-17/32 in 3-5/16 in 24 mm 12 mm M24x1.5
90 lbf 2-47/64 in 3-45/64 in 24 mm 12 mm M24x1.5
90 lbf 2-59/64 in 4-3/32 in 24 mm 12 mm M24x1.5
90 lbf 2-59/64 in 4-3/32 in 24 mm 12 mm M24x1.5
90 lbf 3-15/64 in 4-45/64 in 24 mm 12 mm M24x1.5
90 lbf 3-5/16 in 4-7/8 in 24 mm 12 mm M24x1.5
90 lbf 3-5/16 in 4-7/8 in 24 mm 12 mm M24x1.5
90 lbf 3-45/64 in 5-21/32 in 24 mm 12 mm M24x1.5
90 lbf 3-45/64 in 5-21/32 in 24 mm 12 mm M24x1.5
90 lbf 4-3/32 in 6-7/16 in 24 mm 12 mm M24x1.5
90 lbf 4-3/32 in 6-7/16 in 24 mm 12 mm M24x1.5
90 lbf 4-31/64 in 7-13/64 in 24 mm 12 mm M24x1.5
90 lbf 4-31/64 in 7-13/64 in 24 mm 12 mm M24x1.5
90 lbf 4-7/8 in 7-63/64 in 24 mm 12 mm M24x1.5
90 lbf 4-7/8 in 7-63/64 in 24 mm 12 mm M24x1.5
90 lbf 5-21/32 in 9-35/64 in 24 mm 12 mm M24x1.5
90 lbf 5-21/32 in 9-35/64 in 24 mm 12 mm M24x1.5
90 lbf 6-5/8 in 11-1/2 in 24 mm 12 mm M24x1.5
90 lbf 6-5/8 in 11-1/2 in 24 mm 12 mm M24x1.5
90 lbf 8-13/16 in 12-13/16 in 1.1 in 0.55 in M10x1.5
90 lbf 12-13/16 in 18-13/16 in 1.1 in 0.55 in M10x1.5
90 lbf 12-53/64 in 12-13/16 in 1.1 in 0.55 in M10x1.5
90 lbf 18-13/16 in 18-13/16 in 1.1 in 0.55 in M10x1.5
96 lbf 16-13/16 in 24-13/16 in 1.1 in 0.55 in M10x1.5
96 lbf 24-51/64 in 24-13/16 in 1.1 in 0.55 in M10x1.5
100 lbf 55 mm 65 mm 16 mm 6 mm M16
100 lbf 55 mm 65 mm 16 mm 6 mm M16x2
100 lbf 65 mm 85 mm 16 mm 6 mm M16
100 lbf 65 mm 85 mm 16 mm 6 mm M16x2
100 lbf 75 mm 105 mm 16 mm 6 mm M16
100 lbf 75 mm 105 mm 16 mm 6 mm M16x2
100 lbf 85 mm 125 mm 16 mm 6 mm M16
100 lbf 85 mm 125 mm 16 mm 6 mm M16x2
100 lbf 95 mm 145 mm 16 mm 6 mm M16
100 lbf 95 mm 145 mm 16 mm 6 mm M16x2
100 lbf 105 mm 165 mm 16 mm 6 mm M16
100 lbf 105 mm 165 mm 16 mm 6 mm M16x2
100 lbf 115 mm 185 mm 16 mm 6 mm M16
100 lbf 115 mm 185 mm 16 mm 6 mm M16x2
100 lbf 125 mm 205 mm 16 mm 6 mm M16
100 lbf 125 mm 205 mm 16 mm 6 mm M16x2
100 lbf 145 mm 245 mm 16 mm 6 mm M16
100 lbf 145 mm 245 mm 16 mm 6 mm M16x2
100 lbf 170 mm 295 mm 16 mm 6 mm M16
100 lbf 170 mm 295 mm 16 mm 6 mm M16x2
105 lbf 20-13/16 in 30-13/16 in 1.1 in 0.55 in M10x1.5
105 lbf 24-13/16 in 36-13/16 in 1.1 in 0.55 in M10x1.5
105 lbf 30-13/16 in 30-13/16 in 1.1 in 0.55 in M10x1.5
105 lbf 36-13/16 in 36-13/16 in 1.1 in 0.55 in M10x1.5
119 lbf 12-13/16 in 18-13/16 in 1.1 in 0.55 in M10x1.5
119 lbf 18-13/16 in 18-13/16 in 1.1 in 0.55 in M10x1.5
150 lbf 55 mm 65 mm 16 mm 6 mm M16
150 lbf 55 mm 65 mm 16 mm 6 mm M16
150 lbf 55 mm 65 mm 16 mm 6 mm M16x2
150 lbf 55 mm 65 mm 16 mm 6 mm M16x2
150 lbf 65 mm 85 mm 16 mm 6 mm M16
150 lbf 65 mm 85 mm 16 mm 6 mm M16
150 lbf 65 mm 85 mm 16 mm 6 mm M16x2
150 lbf 65 mm 85 mm 16 mm 6 mm M16x2
150 lbf 75 mm 105 mm 16 mm 6 mm M16
150 lbf 75 mm 105 mm 16 mm 6 mm M16
150 lbf 75 mm 105 mm 16 mm 6 mm M16x2
150 lbf 75 mm 105 mm 16 mm 6 mm M16x2
150 lbf 85 mm 125 mm 16 mm 6 mm M16
150 lbf 85 mm 125 mm 16 mm 6 mm M16
150 lbf 85 mm 125 mm 16 mm 6 mm M16x2
150 lbf 85 mm 125 mm 16 mm 6 mm M16x2
150 lbf 95 mm 145 mm 16 mm 6 mm M16
150 lbf 95 mm 145 mm 16 mm 6 mm M16
150 lbf 95 mm 145 mm 16 mm 6 mm M16x2
150 lbf 95 mm 145 mm 16 mm 6 mm M16x2
150 lbf 105 mm 165 mm 16 mm 6 mm M16
150 lbf 105 mm 165 mm 16 mm 6 mm M16
150 lbf 105 mm 165 mm 16 mm 6 mm M16x2
150 lbf 105 mm 165 mm 16 mm 6 mm M16x2
150 lbf 115 mm 185 mm 16 mm 6 mm M16
150 lbf 115 mm 185 mm 16 mm 6 mm M16
150 lbf 115 mm 185 mm 16 mm 6 mm M16x2
150 lbf 115 mm 185 mm 16 mm 6 mm M16x2
150 lbf 125 mm 205 mm 16 mm 6 mm M16
150 lbf 125 mm 205 mm 16 mm 6 mm M16
150 lbf 125 mm 205 mm 16 mm 6 mm M16x2
150 lbf 125 mm 205 mm 16 mm 6 mm M16x2
150 lbf 145 mm 245 mm 16 mm 6 mm M16
150 lbf 145 mm 245 mm 16 mm 6 mm M16
150 lbf 145 mm 245 mm 16 mm 6 mm M16x2
150 lbf 145 mm 245 mm 16 mm 6 mm M16x2
150 lbf 170 mm 295 mm 16 mm 6 mm M16
150 lbf 170 mm 295 mm 16 mm 6 mm M16
150 lbf 170 mm 295 mm 16 mm 6 mm M16x2
150 lbf 170 mm 295 mm 16 mm 6 mm M16x2
171 lbf 4-15/64 in 6-45/64 in 24.9 mm 12 mm M6
171 lbf 5-21/32 in 9-35/64 in 24.9 mm 12 mm M6
171 lbf 6-5/8 in 11-1/2 in 24.9 mm 12 mm M6
173 lbf 2-1/64 in 2-13/32 in 24.9 mm 12 mm M6
173 lbf 2-1/8 in 2-5/8 in 24.9 mm 12 mm M6
173 lbf 2-17/64 in 2-7/8 in 24.9 mm 12 mm M6
180 lbf 2-9/64 in 2-17/32 in 24 mm 12 mm M24x1.5
180 lbf 2-9/64 in 2-17/32 in 24 mm 12 mm M24x1.5
180 lbf 2-3/8 in 3 in 24 mm 12 mm M24x1.5
180 lbf 2-17/32 in 3-5/16 in 24 mm 12 mm M24x1.5
180 lbf 2-17/32 in 3-5/16 in 24 mm 12 mm M24x1.5
180 lbf 2-47/64 in 3-45/64 in 24 mm 12 mm M24x1.5
180 lbf 2-59/64 in 4-3/32 in 24 mm 12 mm M24x1.5
180 lbf 2-59/64 in 4-3/32 in 24 mm 12 mm M24x1.5
180 lbf 3-15/64 in 4-45/64 in 24 mm 12 mm M24x1.5
180 lbf 3-5/16 in 4-7/8 in 24 mm 12 mm M24x1.5
180 lbf 3-5/16 in 4-7/8 in 24 mm 12 mm M24x1.5
180 lbf 3-45/64 in 5-21/32 in 24 mm 12 mm M24x1.5
180 lbf 3-45/64 in 5-21/32 in 24 mm 12 mm M24x1.5
180 lbf 4-3/32 in 6-7/16 in 24 mm 12 mm M24x1.5
180 lbf 4-3/32 in 6-7/16 in 24 mm 12 mm M24x1.5
180 lbf 4-31/64 in 7-13/64 in 24 mm 12 mm M24x1.5
180 lbf 4-31/64 in 7-13/64 in 24 mm 12 mm M24x1.5
180 lbf 4-7/8 in 7-63/64 in 24 mm 12 mm M24x1.5
180 lbf 4-7/8 in 7-63/64 in 24 mm 12 mm M24x1.5
180 lbf 5-21/32 in 9-35/64 in 24 mm 12 mm M24x1.5
180 lbf 5-21/32 in 9-35/64 in 24 mm 12 mm M24x1.5
180 lbf 6-5/8 in 11-1/2 in 24 mm 12 mm M24x1.5
180 lbf 170 mm 295 mm 24 mm 12 mm M24x1.5
182 lbf 18-13/16 in 18-13/16 in 1.1 in 0.55 in M10x1.5
212 lbf 18-13/16 in 18-13/16 in 1.1 in 0.55 in M10x1.5
225 lbf 170 mm 295 mm 24.9 mm 12 mm M6
278 lbf 30-13/16 in 30-13/16 in 1.1 in 0.55 in M10x1.5
338 lbf 24-51/64 in 24-13/16 in 1.1 in 0.55 in M10x1.5
340 lbf 2-9/64 in 2-17/32 in 24 mm 12 mm M24x1.5
340 lbf 2-9/64 in 2-17/32 in 24 mm 12 mm M24x1.5
340 lbf 2-3/8 in 3 in 24 mm 12 mm M24x1.5
340 lbf 2-17/32 in 3-5/16 in 24 mm 12 mm M24x1.5
340 lbf 2-17/32 in 3-5/16 in 24 mm 12 mm M24x1.5
340 lbf 2-47/64 in 3-45/64 in 24 mm 12 mm M24x1.5
340 lbf 2-59/64 in 4-3/32 in 24 mm 12 mm M24x1.5
340 lbf 2-59/64 in 4-3/32 in 24 mm 12 mm M24x1.5
340 lbf 3-15/64 in 4-45/64 in 24 mm 12 mm M24x1.5
340 lbf 3-5/16 in 4-7/8 in 24 mm 12 mm M24x1.5
340 lbf 3-5/16 in 4-7/8 in 24 mm 12 mm M24x1.5
340 lbf 3-45/64 in 5-21/32 in 24 mm 12 mm M24x1.5
340 lbf 3-45/64 in 5-21/32 in 24 mm 12 mm M24x1.5
340 lbf 4-3/32 in 6-7/16 in 24 mm 12 mm M24x1.5
340 lbf 4-3/32 in 6-7/16 in 24 mm 12 mm M24x1.5
340 lbf 4-31/64 in 7-13/64 in 24 mm 12 mm M24x1.5
340 lbf 4-31/64 in 7-13/64 in 24 mm 12 mm M24x1.5
340 lbf 4-7/8 in 7-63/64 in 24 mm 12 mm M24x1.5
340 lbf 4-7/8 in 7-63/64 in 24 mm 12 mm M24x1.5
340 lbf 5-21/32 in 9-35/64 in 24 mm 12 mm M24x1.5
340 lbf 5-21/32 in 9-35/64 in 24 mm 12 mm M24x1.5
340 lbf 6-5/8 in 11-1/2 in 24 mm 12 mm M24x1.5
340 lbf 6-5/8 in 11-1/2 in 24 mm 12 mm M24x1.5
342 lbf 4-15/64 in 6-45/64 in 24.9 mm 12 mm M6
342 lbf 5-21/32 in 9-35/64 in 24.9 mm 12 mm M6
344 lbf 2-1/64 in 2-13/32 in 24.9 mm 12 mm M6
344 lbf 2-1/8 in 2-5/8 in 24.9 mm 12 mm M6
346 lbf 2-17/64 in 2-7/8 in 24.9 mm 12 mm M6
372 lbf 24-51/64 in 24-13/16 in 1.1 in 0.55 in M10x1.5
390 lbf 30-13/16 in 30-13/16 in 1.1 in 0.55 in M10x1.5
450 lbf 52 mm 62 mm 24.9 mm 12 mm M6
450 lbf 2-1/8 in 2-21/32 in 24.9 mm 12 mm M6
450 lbf 170 mm 295 mm 24.9 mm 12 mm M6
630 lbf 4-19/64 in 7-13/64 in 19 mm 11 mm M6
630 lbf 4-31/64 in 7-19/32 in 19 mm 11 mm M6
630 lbf 5-17/64 in 9-5/32 in 19 mm 11 mm M6
630 lbf 6-15/64 in 11-7/64 in 19 mm 11 mm M6
650 lbf 2-9/64 in 2-17/32 in 24 mm 12 mm M24x1.5
650 lbf 2-9/64 in 2-17/32 in 24 mm 12 mm M24x1.5
650 lbf 2-9/64 in 2-17/32 in 24 mm 12 mm M24x1.5
650 lbf 2-9/64 in 2-17/32 in 24 mm 12 mm M24x1.5
650 lbf 2-3/8 in 3 in 24 mm 12 mm M24x1.5
650 lbf 2-3/8 in 3 in 24 mm 12 mm M24x1.5
650 lbf 2-17/32 in 3-5/16 in 24 mm 12 mm M24x1.5
650 lbf 2-17/32 in 3-5/16 in 24 mm 12 mm M24x1.5
650 lbf 2-17/32 in 3-5/16 in 24 mm 12 mm M24x1.5
650 lbf 2-17/32 in 3-5/16 in 24 mm 12 mm M24x1.5
650 lbf 2-47/64 in 3-45/64 in 24 mm 12 mm M24x1.5
650 lbf 2-47/64 in 3-45/64 in 24 mm 12 mm M24x1.5
650 lbf 2-59/64 in 4-3/32 in 24 mm 12 mm M24x1.5
650 lbf 2-59/64 in 4-3/32 in 24 mm 12 mm M24x1.5
650 lbf 2-59/64 in 4-3/32 in 24 mm 12 mm M24x1.5
650 lbf 2-59/64 in 4-3/32 in 24 mm 12 mm M24x1.5
650 lbf 3-15/64 in 4-45/64 in 24 mm 12 mm M24x1.5
650 lbf 3-15/64 in 4-45/64 in 24 mm 12 mm M24x1.5
650 lbf 3-5/16 in 4-7/8 in 24 mm 12 mm M24x1.5
650 lbf 3-5/16 in 4-7/8 in 24 mm 12 mm M24x1.5
650 lbf 3-5/16 in 4-7/8 in 24 mm 12 mm M24x1.5
650 lbf 3-5/16 in 4-7/8 in 24 mm 12 mm M24x1.5
650 lbf 3-45/64 in 5-21/32 in 24 mm 12 mm M24x1.5
650 lbf 3-45/64 in 5-21/32 in 24 mm 12 mm M24x1.5
650 lbf 3-45/64 in 5-21/32 in 24 mm 12 mm M24x1.5
650 lbf 3-45/64 in 5-21/32 in 24 mm 12 mm M24x1.5
650 lbf 4-3/32 in 6-7/16 in 24 mm 12 mm M24x1.5
650 lbf 4-3/32 in 6-7/16 in 24 mm 12 mm M24x1.5
650 lbf 4-3/32 in 6-7/16 in 24 mm 12 mm M24x1.5
650 lbf 4-3/32 in 6-7/16 in 24 mm 12 mm M24x1.5
650 lbf 4-31/64 in 7-13/64 in 24 mm 12 mm M24x1.5
650 lbf 4-31/64 in 7-13/64 in 24 mm 12 mm M24x1.5
650 lbf 4-31/64 in 7-13/64 in 24 mm 12 mm M24x1.5
650 lbf 4-31/64 in 7-13/64 in 24 mm 12 mm M24x1.5
650 lbf 4-7/8 in 7-63/64 in 24 mm 12 mm M24x1.5
650 lbf 4-7/8 in 7-63/64 in 24 mm 12 mm M24x1.5
650 lbf 4-7/8 in 7-63/64 in 24 mm 12 mm M24x1.5
650 lbf 4-7/8 in 7-63/64 in 24 mm 12 mm M24x1.5
650 lbf 5-21/32 in 9-35/64 in 24 mm 12 mm M24x1.5
650 lbf 5-21/32 in 9-35/64 in 24 mm 12 mm M24x1.5
650 lbf 5-21/32 in 9-35/64 in 24 mm 12 mm M24x1.5
650 lbf 5-21/32 in 9-35/64 in 24 mm 12 mm M24x1.5
650 lbf 6-5/8 in 11-1/2 in 24 mm 12 mm M24x1.5
650 lbf 6-5/8 in 11-1/2 in 24 mm 12 mm M24x1.5
650 lbf 6-5/8 in 11-1/2 in 24 mm 12 mm M24x1.5
650 lbf 6-5/8 in 11-1/2 in 24 mm 12 mm M24x1.5
679 lbf 4-15/64 in 6-45/64 in 24.9 mm 12 mm M6
679 lbf 4-15/64 in 6-45/64 in 24.9 mm 12 mm M6
679 lbf 4-15/64 in 6-45/64 in 24.9 mm 12 mm M6
686 lbf 5-21/32 in 9-35/64 in 24.9 mm 12 mm M6
686 lbf 5-21/32 in 9-35/64 in 24.9 mm 12 mm M6
686 lbf 5-21/32 in 9-35/64 in 24.9 mm 12 mm M6
689 lbf 2-1/64 in 2-13/32 in 24.9 mm 12 mm M6

End Fittings Type: Unspecified

Force Compressed Length Extended Length Cylinder Diameter Rod Diameter Thread Size
56.2 lbf 6-19/64 in 7-5/16 in 0.59 in 0.23 in ————

Shock Absorbers

Shock absorbers are mechanical devices that consist of a rod and piston housed in a cylinder. They use pressure inside the cylinder to slow the motion or position of objects like lids or doors. Also called dampers, they are available in two types: compression and extension. Compression dampers absorb shocks and vibration and prevent objects from slamming shut, whereas extension dampers slow the opening of an object or parts in a system.

Compression Only Damper Type

Maximum Rated Capacity Extended Length Cylinder Diameter Rod Diameter Material
180 lb 5.28 in 0.59 in 0.24 in Steel
180 lb 7.24 in 0.59 in 0.24 in Steel
180 lb 9.21 in 0.59 in 0.24 in Steel
405 lb 8.27 in 0.87 in 0.31 in Steel
405 lb 12.2 in 0.87 in 0.31 in Steel
405 lb 16.14 in 0.87 in 0.31 in Steel
674 lb 12.6 in 1.1 in 0.39 in Steel
674 lb 16.54 in 1.1 in 0.39 in Steel
674 lb 20.47 in 1.1 in 0.39 in Steel
674 lb 24.41 in 1.1 in 0.39 in Steel
674 lb 28.35 in 1.1 in 0.39 in Steel
2,248 lb 22.24 in 1.57 in 0.55 in Steel
2,248 lb 30.12 in 1.57 in 0.55 in Steel

Extension Only Damper Type

Maximum Rated Capacity Extended Length Cylinder Diameter Rod Diameter Material
180 lb 5.28 in 0.59 in 0.24 in Steel
180 lb 7.24 in 0.59 in 0.24 in Steel
180 lb 9.21 in 0.59 in 0.24 in Steel
405 lb 8.27 in 0.87 in 0.31 in Steel
405 lb 12.2 in 0.87 in 0.31 in Steel
405 lb 16.14 in 0.87 in 0.31 in Steel
674 lb 12.6 in 1.1 in 0.39 in Steel
674 lb 16.54 in 1.1 in 0.39 in Steel
674 lb 20.47 in 1.1 in 0.39 in Steel
674 lb 24.41 in 1.1 in 0.39 in Steel
674 lb 28.35 in 1.1 in 0.39 in Steel
2,248 lb 22.24 in 1.57 in 0.55 in Steel
2,248 lb 30.12 in 1.57 in 0.55 in Steel

Both Directions Damper Type

Maximum Rated Capacity Extended Length Cylinder Diameter Rod Diameter Material
180 lb 5.28 in 0.59 in 0.24 in Steel
180 lb 7.24 in 0.59 in 0.24 in Steel
180 lb 9.21 in 0.59 in 0.24 in Steel
405 lb 8.27 in 0.87 in 0.31 in Steel
405 lb 12.2 in 0.87 in 0.31 in Steel
405 lb 16.14 in 0.87 in 0.31 in Steel
674 lb 12.6 in 1.1 in 0.39 in Steel
674 lb 16.54 in 1.1 in 0.39 in Steel
674 lb 20.47 in 1.1 in 0.39 in Steel
674 lb 24.41 in 1.1 in 0.39 in Steel
674 lb 28.35 in 1.1 in 0.39 in Steel
2,248 lb 22.24 in 1.57 in 0.55 in Steel
2,248 lb 30.12 in 1.57 in 0.55 in Steel

Hinge Damper Type

Maximum Rated Capacity Extended Length Cylinder Diameter Rod Diameter Material
44 lb 55 mm 14 mm 4 mm Steel
88 lb 55 mm 16 mm 5 mm Steel

Damper Type: Unspecified

Maximum Rated Capacity Extended Length Cylinder Diameter Rod Diameter Material
1.1 lb 49 mm 10 mm 2.4 mm Resin
1.1 lb 49 mm 10 mm 2.4 mm Resin
1.1 lb 49 mm 10 mm 2.4 mm Resin
3.3 lb 70 mm 16 mm 3 mm Resin
5.5 lb 48 mm 10 mm 3 mm Steel
5.5 lb 55 mm 10 mm 3 mm Steel
5.5 lb 55 mm 16 mm 3 mm Steel
5.5 lb 58.9 mm 10 mm 2.4 mm Steel
5.5 lb 65.2 mm 10 mm 2.4 mm Steel
6.6 lb 28.6 mm 4 mm 1.2 mm Steel
6.6 lb 29 mm 6 mm 1.8 mm Steel
6.6 lb 32 mm 8 mm 2 mm Steel
6.6 lb 32.6 mm 4 mm 1.2 mm Steel
6.6 lb 33 mm 6 mm 1.8 mm Steel
6.6 lb 37 mm 8 mm 2 mm Steel
6.6 lb 70 mm 16 mm 3 mm Resin
8.8 lb 76 mm 12 mm 3.5 mm Steel
8.8 lb 84 mm 12 mm 3.5 mm Steel
9.9 lb 80 mm 14 mm 3.5 mm Steel
9.9 lb 88 mm 14 mm 3.5 mm Steel
11 lb 32 mm 8 mm 2 mm Steel
11 lb 32 mm 10 mm 3 mm Steel
11 lb 37 mm 8 mm 2 mm Steel
11 lb 39 mm 10 mm 3 mm Steel
11 lb 43 mm 12 mm 6 mm Steel
13 lb 63 mm 12 mm 3.5 mm Steel
13 lb 71 mm 12 mm 3.5 mm Steel
15.4 lb 46 mm 10 mm 3 mm Steel
15.4 lb 53 mm 10 mm 3 mm Steel
17.6 lb 32 mm 10 mm 3 mm Steel
17.6 lb 39 mm 10 mm 3 mm Steel
17.6 lb 70 mm 14 mm 3.5 mm Steel
17.6 lb 78 mm 14 mm 3.5 mm Steel
17.6 lb 97 mm 14 mm 4 mm Steel
17.6 lb 107 mm 14 mm 4 mm Steel
22 lb 46 mm 10 mm 3 mm Steel
22 lb 53 mm 10 mm 3 mm Steel
22 lb 58.9 mm 10 mm 2.4 mm Steel
22 lb 58.9 mm 10 mm 2.4 mm Steel
22 lb 65.2 mm 10 mm 2.4 mm Steel
22 lb 65.2 mm 10 mm 2.4 mm Steel
22 lb 78 mm 10 mm 4.5 mm Steel
22 lb 102 mm 14 mm 5 mm Steel
22 lb 102 mm 16 mm 5 mm Steel
22 lb 103.1 mm 10 mm 2.5 mm Resin
22 lb 103.1 mm 10 mm 2.5 mm Resin
22 lb 103.1 mm 10 mm 2.5 mm Resin
22 lb 103.1 mm 10 mm 2.5 mm Resin
22 lb 103.1 mm 10 mm 2.5 mm Resin
22 lb 103.1 mm 10 mm 2.5 mm Resin
22 lb 106.1 mm 10 mm 2.5 mm Resin
22 lb 106.1 mm 10 mm 2.5 mm Resin
22 lb 106.1 mm 10 mm 2.5 mm Resin
22 lb 106.1 mm 10 mm 2.5 mm Resin
22 lb 106.1 mm 10 mm 2.5 mm Resin
22 lb 106.1 mm 10 mm 2.5 mm Resin
22 lb 117 mm 14 mm 5 mm Steel
22 lb 117 mm 16 mm 5 mm Steel
22 lb 153 mm 10 mm 2.5 mm Resin
22 lb 153 mm 10 mm 2.5 mm Resin
22 lb 153 mm 10 mm 2.5 mm Resin
22 lb 156 mm 10 mm 2.5 mm Resin
22 lb 156 mm 10 mm 2.5 mm Resin
22 lb 156 mm 10 mm 2.5 mm Resin
22 lb 173 mm 10 mm 2.5 mm Resin
22 lb 173 mm 10 mm 2.5 mm Resin
22 lb 173 mm 10 mm 2.5 mm Resin
22 lb 176 mm 10 mm 2.5 mm Resin
22 lb 176 mm 10 mm 2.5 mm Resin
22 lb 176 mm 10 mm 2.5 mm Resin
22 lb 186 mm 10 mm 2.5 mm Resin
29 lb 75 mm 16 mm 5 mm Steel
29 lb 90 mm 16 mm 5 mm Steel
33 lb 53 mm 8 mm 2.5 mm Steel
33 lb 58 mm 8 mm 2.5 mm Steel
33 lb 60 mm 12 mm 3.5 mm Steel
33 lb 68 mm 12 mm 3.5 mm Steel
33 lb 78 mm 10 mm 4.5 mm Steel
33 lb 112 mm 20 mm 6 mm Steel
33 lb 153 mm 10 mm 2.5 mm Resin
33 lb 153 mm 10 mm 2.5 mm Resin
33 lb 153 mm 10 mm 2.5 mm Resin
33 lb 156 mm 10 mm 2.5 mm Resin
33 lb 156 mm 10 mm 2.5 mm Resin
33 lb 156 mm 10 mm 2.5 mm Resin
33 lb 183 mm 10 mm 2.5 mm Resin
33 lb 183 mm 10 mm 2.5 mm Resin
33 lb 183 mm 10 mm 2.5 mm Resin
33 lb 186 mm 10 mm 2.5 mm Resin
33 lb 186 mm 10 mm 2.5 mm Resin
44 lb 56 mm 14 mm 6 mm Steel
44 lb 70 mm 14 mm 3.5 mm Steel
44 lb 78 mm 10 mm 4.5 mm Steel
44 lb 78 mm 14 mm 3.5 mm Steel
44 lb 97 mm 14 mm 4 mm Steel
44 lb 107 mm 14 mm 4 mm Steel
55 lb 108 mm 20 mm 6 mm Steel
66 lb 60 mm 12 mm 3.5 mm Steel
66 lb 68 mm 12 mm 3.5 mm Steel
66 lb 75 mm 16 mm 5 mm Steel
66 lb 76 mm 12 mm 3.5 mm Steel
66 lb 76 mm 12 mm 3.5 mm Steel
66 lb 76 mm 12 mm 3.5 mm Steel
66 lb 80 mm 14 mm 3.5 mm Steel
66 lb 84 mm 12 mm 3.5 mm Steel
66 lb 84 mm 12 mm 3.5 mm Steel
66 lb 84 mm 12 mm 3.5 mm Steel
66 lb 84 mm 12 mm 3.5 mm Steel
66 lb 88 mm 14 mm 3.5 mm Steel
66 lb 90 mm 16 mm 5 mm Steel
66 lb 90 mm 16 mm 5 mm Steel
66 lb 92 mm 12 mm 3.5 mm Steel
66 lb 103 mm 25 mm 7 mm Steel
66 lb 112 mm 20 mm 6 mm Steel
66 lb 134 mm 16 mm 5 mm Steel
66 lb 164 mm 16 mm 5 mm Steel
66 lb 185.5 mm 25 mm 8 mm Steel
66 lb 223.5 mm 20 mm 6 mm Steel
66 lb 228 mm 25 mm 8 mm Steel
77 lb 80 mm 14 mm 3.5 mm Steel
77 lb 80 mm 14 mm 3.5 mm Steel
77 lb 88 mm 14 mm 3.5 mm Steel
77 lb 88 mm 14 mm 3.5 mm Steel
77 lb 88 mm 14 mm 3.5 mm Steel
77 lb 93 mm 20 mm 6 mm Steel
77 lb 110 mm 20 mm 6 mm Steel
88 lb 103 mm 25 mm 7 mm Steel
104 lb 117.5 mm 27 mm 8 mm Steel
104 lb 137.5 mm 27 mm 8 mm Steel
110 lb 74 mm 16 mm 8 mm Steel
110 lb 102 mm 16 mm 5 mm Steel
110 lb 102 mm 16 mm 5 mm Steel
110 lb 105 mm 14 mm 4 mm Steel
110 lb 115 mm 14 mm 4 mm Steel
110 lb 117 mm 16 mm 5 mm Steel
110 lb 117 mm 16 mm 5 mm Steel
110 lb 228 mm 25 mm 8 mm Steel
132 lb 55 mm 20 mm 6 mm Steel
132 lb 93 mm 20 mm 6 mm Steel
132 lb 110 mm 20 mm 6 mm Steel
132 lb 128 mm 16 mm 5 mm Steel
132 lb 143 mm 16 mm 5 mm Steel
154 lb 55 mm 20 mm 6 mm Steel
161 lb 112 mm 20 mm 6 mm Steel
165 lb 70 mm 14 mm 3.5 mm Steel
165 lb 78 mm 14 mm 3.5 mm Steel
165 lb 140 mm 25 mm 8 mm Steel
176 lb 46 mm 14 mm 4 mm Steel
192 lb 170 mm 20 mm 6 mm Steel
192 lb 204 mm 20 mm 6 mm Steel
198 lb 55 mm 25 mm 8 mm Steel
220 lb 228 mm 25 mm 8 mm Steel
231 lb 117.5 mm 27 mm 8 mm Steel
231 lb 137.5 mm 27 mm 8 mm Steel
243 lb 55 mm 25 mm 8 mm Steel
243 lb 75 mm 16 mm 5 mm Steel
243 lb 90 mm 16 mm 5 mm Steel
243 lb 97 mm 14 mm 4 mm Steel
243 lb 107 mm 14 mm 4 mm Steel
258 lb 185.5 mm 25 mm 8 mm Steel
265 lb 46 mm 16 mm 5 mm Steel
265 lb 55 mm 27 mm 8 mm Steel
265 lb 110 mm 20 mm 6 mm Steel
265 lb 110 mm 20 mm 6 mm Steel
265 lb 127 mm 20 mm 6 mm Steel
265 lb 127 mm 20 mm 6 mm Steel
309 lb 205 mm 25 mm 8 mm Steel
309 lb 241 mm 25 mm 8 mm Steel
331 lb 55 mm 27 mm 8 mm Steel
331 lb 150 mm 36 mm 12 mm Steel
331 lb 155 mm 25 mm 8 mm Steel
331 lb 173 mm 25 mm 8 mm Steel
381 lb 171.5 mm 30 mm 10 mm Steel
381 lb 190 mm 30 mm 10 mm Steel
386 lb 140 mm 25 mm 8 mm Steel
441 lb 105 mm 20 mm 6 mm Steel
441 lb 110 mm 20 mm 6 mm Steel
441 lb 110 mm 20 mm 6 mm Steel
441 lb 122 mm 20 mm 6 mm Steel
441 lb 127 mm 20 mm 6 mm Steel
441 lb 127 mm 20 mm 6 mm Steel
441 lb 127 mm 20 mm 6 mm Steel
441 lb 137 mm 20 mm 6 mm Steel
441 lb 200.5 mm 25 mm 8 mm Steel

Lid Supports

Lid supports assist in opening lids and caps and holding them open at different angles. They adjust and can be locked to stay in place for extended periods.

304 Stainless Steel

Max. Support Angle Overall Height Overall Width
70 ° 1-49/64 in 1-29/64 in
70 ° 1-49/64 in 1-29/64 in
70 ° 1-13/16 in 1-29/64 in
70 ° 1-13/16 in 1-29/64 in
70 ° 1-31/32 in 1-7/16 in
70 ° 1-31/32 in 1-7/16 in
75 ° 9-7/32 in 1-3/64 in
80 ° 5-1/8 in 11/32 in
80 ° 15-15/32 in 1-9/32 in
90 ° 1-57/64 in 1-3/64 in
90 ° 5-1/8 in 11/32 in
90 ° 6-11/16 in 1-3/64 in
90 ° 8-5/32 in 1-3/64 in
90 ° 9-7/32 in 1-3/64 in
90 ° 14-35/64 in 1-49/64 in
90 ° 14-35/64 in 1-49/64 in
90 ° 15-53/64 in 1-49/64 in
———— 15/16 in 10-59/64 in
———— 15/16 in 10-59/64 in
———— 1-37/64 in 1-3/16 in
———— 1-37/64 in 1-3/16 in
———— 1-37/64 in 1-3/16 in
———— 1-49/64 in 1-3/4 in

Steel

Max. Support Angle Overall Height Overall Width
90 ° 3/4 in 7-1/2 in
90 ° 1-7/64 in 41/64 in
90 ° 1-7/64 in 41/64 in
90 ° 9-9/64 in 49/64 in
90 ° 9-9/64 in 49/64 in

Aluminum

Max. Support Angle Overall Height Overall Width
60 ° 10-5/8 in 1-1/64 in
60 ° 10-5/8 in 1-1/64 in
60 ° 10-5/8 in 1-1/64 in
  • Previous:
  • Next:

    • gas spring advantage

    gas spring advantage

    factory production

    gas spring cutting

    gas spring production 2

    gas spring production 3

    gas spring production 4



    Tieying certificate 1

    gas spring certificate 1

    gas spring certificate 2

    证书墙2

    gas spring cooperation

    gas spring client 2

    gas spring client1

    exnhibition site

    展会现场1

    展会现场2

    • Write your message here and send it to us

    Products categories
