ACE gas spring lift

Short Description:

Custom control of Hand Forces
TIEYING products in this segment enhance the quality of any type of movement. Anyone who wants to raise or lower loads, regulate the feed of an object to the precise millimeter or gently decelerate rotating or linear movements will find the right solution here.

TIEYING delivers industry leading quality. Our innovative solutions correspond with stringent requirements for ergonomics and individuality, including custom pressurized gas springs.

Send email to us

Product Detail

OUR ADVANTAGE

CERTIFICATE

CUSTOMER COOPERATION

Product Tags

Industrial Gas Springs – Push Type

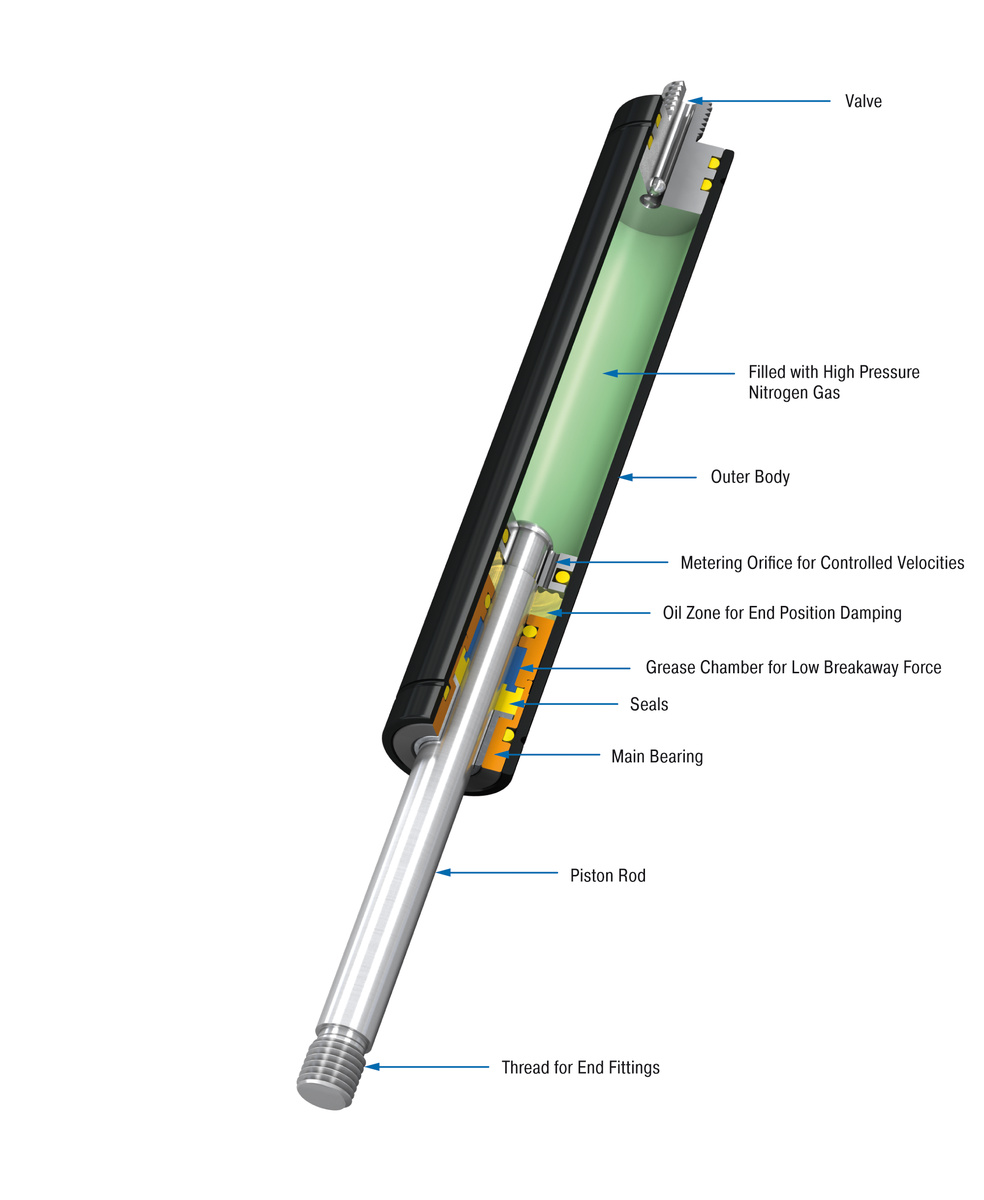

WHAT IS PUSH TYPE OF GAS SPRING?

The smart way to lift and lower
Anyone who wants to lift or lower loads with control and without excessive strength relies on the industrial gas springs from TIEYING. These maintenance-free, ready-to-install machine elements, which are available from stock, support sheer muscle power, reliably open and hold.

Available with body diameters of 0.31 inch to 2.76 inch (8 to 70 mm) and forces from 2 to 2,925 lbs. (10 to 13,000 N), TIEYING push type gas springs offer a huge variety and maximum service life. The first is achieved thanks to the number of available connections and fittings for simple attachment and the latter with high quality design and materials. Whether they are made of steel or stainless steel, these components make any work easier and are also visually appealing.

TYPES	Strokeinch	Extendedinch	Extension force max. lbs
GS-8-20	0.79	2.83	22
GS-8-30	1.18	3.62	22
GS-8-40	1.57	4.41	22
GS-8-50	1.97	5.20	22
GS-8-60	2.36	5.98	22
GS-8-80	3.14	7.56	22

Industrial Gas Springs – Push Type
GS-8
Individual stroke length and extension forces
Valve Technology
Extension force 2 lbs to 22 lbs (compressed up to 30 lbs)
Stroke 0.79 inch to 3.14 inch
Universal and tailor made: TIEYING industrial gas springs offer perfect support of muscle power with forces from 2 to 2,923 lbs. (10 to 13,000 N) with body diameter of 0.31““ to 2.76““ (8 to 70 mm). These durable and sealed systems are ready for installation, maintenance-free and filled with pressurized nitrogen gas.

They are filled according to individual customer pressure requirements and may be adjusted later by use of a built-in valve. TIEYING provides free calculation support and designs the gas springs with mounting points specifically for the particular application. A variety of accessories makes assembly even easier and allows universal application of the gas springs.

TIEYING industrial gas push type springs are used on covers, lids, or other components. They are used in industrial applications, automation and machine building, medical technology as well as in the electronics, automobile and furniture industries.

Industrial Gas Springs – Pull Type

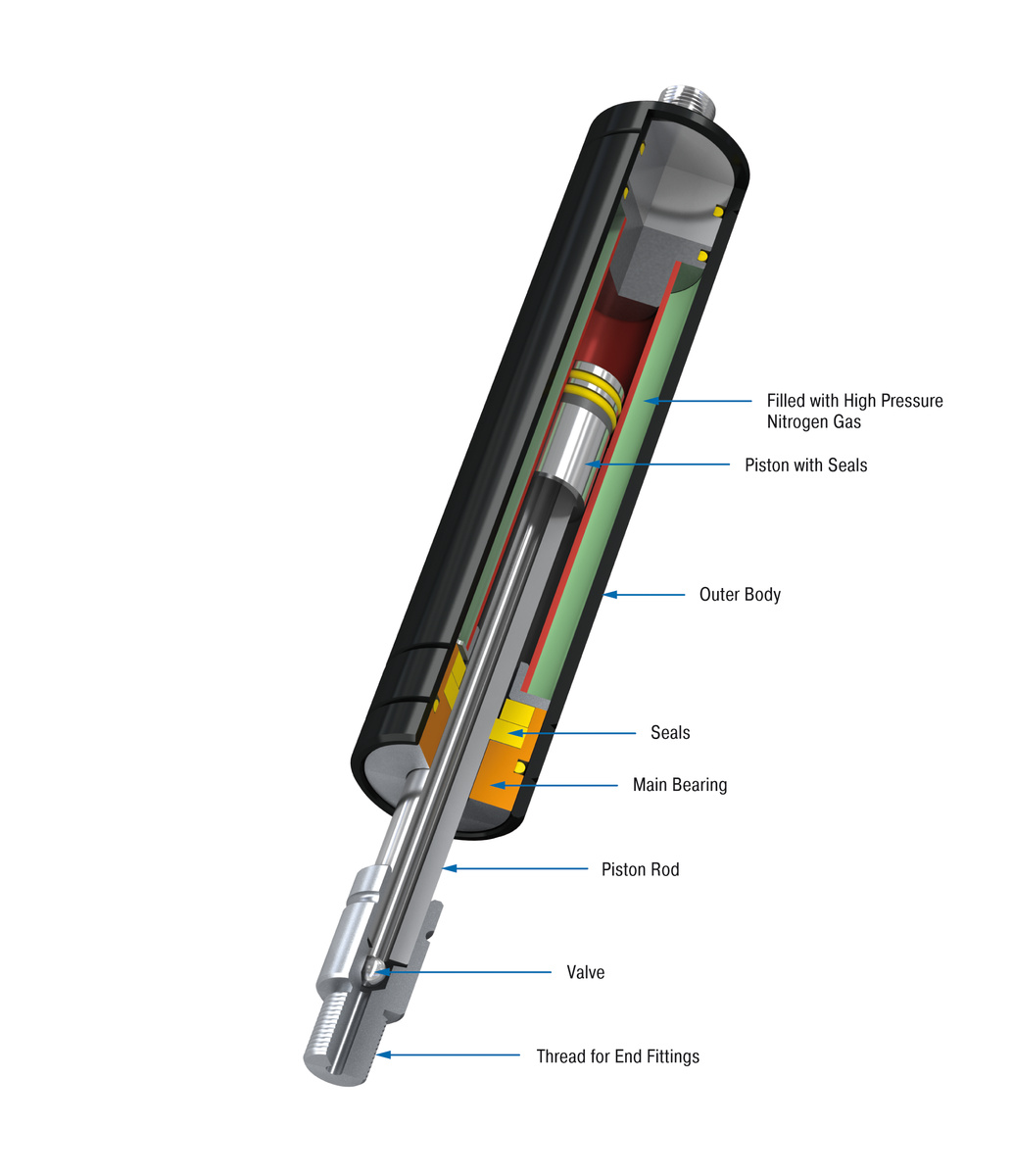

Pull Type Of Industrial Gas Springs

Alternatives for tight spaces and mounting requirements

If gas push type springs cannot be used due to a lack of space,TIEYING's industrial gas pull type springs come into their own. These compact assistants with body diameters of 0.59 inch to 1.57 inch (15 to 40 mm) are effective in the direction of traction and work in the opposite way to the principle of gas push type springs.

This means that the gas pressure in the cylinder draws the piston rod in and, when closing a flap for example, supports the manual force required for a controlled motion. TIEYING's gas pull type springs are also self-contained, maintenance-free machine elements and equipped with a standard valve to individually regulate the gas pressure, whereby they cover forces between 7 to 1125 lb (30 and 5,000 N). The ability to mount in any orientation and position along with an extensive range of DIN standardized accessories enable universal use.

Very low progression rate

TYPES	Strokeinch	retractedinch	Traction force max.lbs
GZ-15-20	0.79	3.43	34
GZ-15-40	1.57	4.21	34
GZ-15-50	1.97	4.61	34
GZ-15-60	2.36	5.00	34
GZ-15-80	3.15	5.79	34
GZ-15-100	3.94	6.57	34
GZ-15-120	4.72	7.36	34
GZ-15-150	5.91	8.54	34

Industrial Gas Springs – Pull Type
GZ-15
Very low progression rate
Valve Technology

Traction force 11 lbs to 34 lbs (extended up to 41 lbs)

Stroke 0.79 inch to 5.91 inch

The solution to a lack of space: If standard push type gas springs cannot be used due to a lack of space, TIEYING's industrial pull type gas springs are the solution. They work in the opposite way of standard push type gas springs. The piston rod is retracted when the cylinder is unloaded. The gas pressure in the cylinder draws the piston rod in.

TIEYING pull type gas springs offer the maximum service life thanks to the solid chrome-plated piston rod and an integrated sliding bearing. The maintenance-free and ready-to-install products are available in body diameters of 0.59 inch to 1.57 inch (15 to 40 mm) as well as forces from 8.99 lbs to 1,124 lbs. (40 to 5,000 N) and are available from stock with valve and a large selection of accessories. The traction force can be fine-tuned using the adjustment valve.

Gas traction springs from TIEYING are used in industrial applications, automation and machine building, especially in test equipment and in medical technology as well as in the electronics and furniture industries.

Hydraulic Dampers

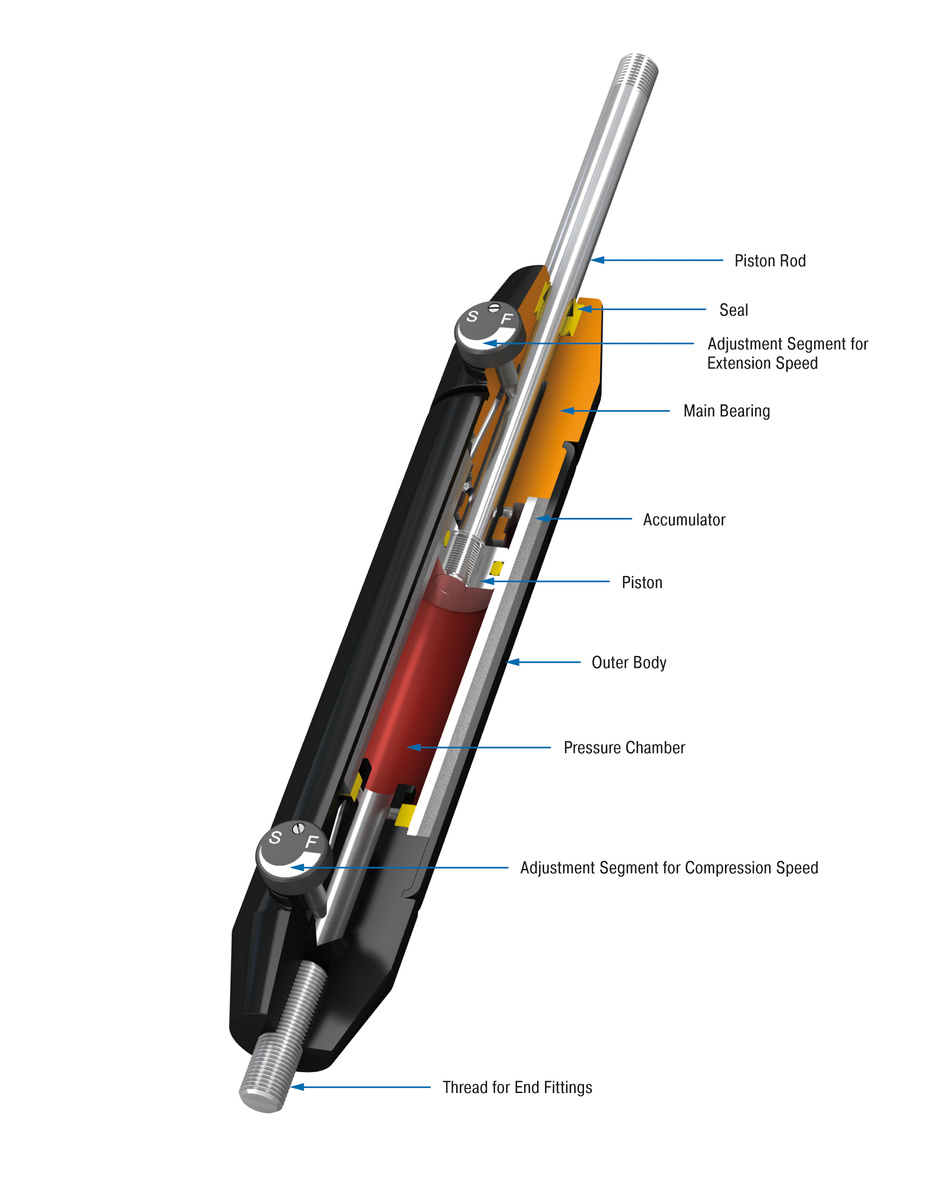

What Is Hydraulic Gas Dampers?

Multi-talent in speed control
The TIEYING hydraulic dampers are similar in appearance to our industrial gas springs but are adjusted in the end position and work differently to the DVC family with individual speed adjusters for the push and pull direction. This provides users with the maximum flexibility.

Whether used as drive compensation or safety element, the retraction and extension speed of these TIEYING solutions can always be precisely set. This means that the speed of movement can be controlled, synchronization regulated in both directions and pivoting loads can be compensated. Depending on the model, the push and pull forces are between 6.75 lb to 2,023 lb (30 N and 40,000 N). These maintenance-free, ready-to-install products are available in body diameters of 0.47 inch to 2.75 inch (12 mm to 70 mm) and in stroke lengths up to 31.50 in (800 mm).

TYPES	Stroke inch	extended inch	Compression force min. lbs	Compression force max. lbs
DVC-32-50	2.00	9.45	9.5	300
DVC-32-100	4.00	13.39	9.5	350
DVC-32-150	6.00	17.32	9.5	450

Hydraulic Dampers

DVC-32
Multi-directional speed adjustment
Adjustable, Without Free Travel
Compression and extension force 9.44 lbs to 450 lbs
Stroke 2.00 inch to 6.00 inch
Separately regulated in any stroke position: The hydraulic dampers of the product family DVC-32 and DVC-2 to DVC-6 are the first dampers to provide precise, independent, external adjustment of in-and-out speeds. With their individual adjustments for the push and pull direction as well as the bi-directional action, these are suitable as safety or control elements.

The great number of mounting accessories makes assembly of these TIEYING hydraulic dampers easier and allows these maintenance-free, ready-to-install and self-contained systems universally applicable. Qualitatively high grade, and at the same time simple to use; one of their uses is to absorb swinging loads.

These velocity controllers are used in the automotive sector, automation and machine building as well as in the electronics industry.
