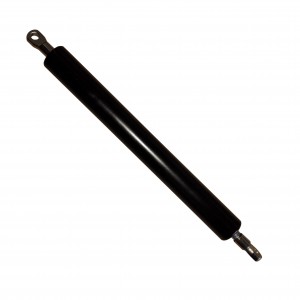

CARBON STEEL GAS SPRINGS

Our standard line of gas springs feature a double seal system, epoxy painted tubes and feature and chrome plated or nitrate treated shafts. Each spring is set up and tested to meet the requirements of your order.

All our gas springs feature a double seal system.
Force limits apply to long stroke springs — max force not available in all springs.

6×15 CARBON STEEL GAS SPRINGS

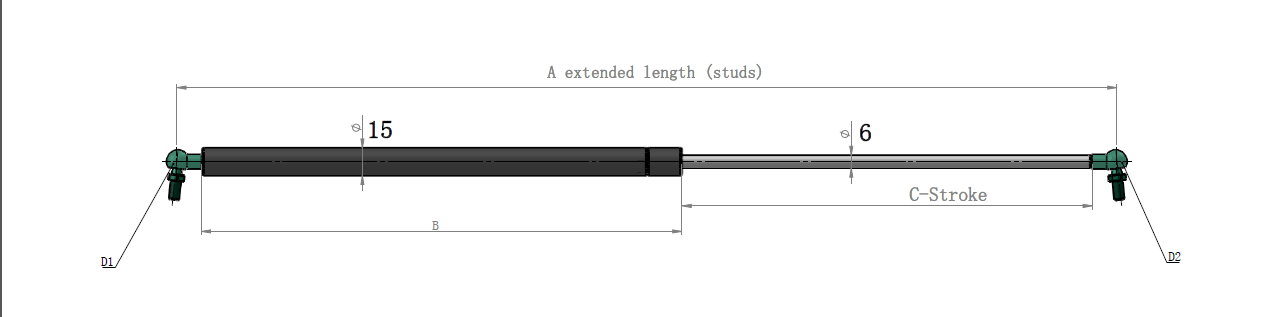

Our 6×15 series gas springs are great for applications with limited space requiring low output forces. Most common force settings are from 10 to 60 lbs.

·Fixed Force – We set force to your specification at time of order.
·Thread Size: M6x1.0
·Rod Diameter: Cylinder Diameter: 0.236 in (6 mm)
·Cylinder Diameter:.590 in (15 mm)
·Optional end fittings available upon request

6/15 Series	Extended Length [A]		Stroke [S]		Compressed Length [C]		Shoulder Length [B]
STOCK No.	mm	Inches	mm	Inches	mm	Inches	mm	Inches
GSK15-165	165	6.5	48	1.9	117	4.6	129	5.1
GSK15-170	170	6.7	50	2	120	4.7	134	5.3
GSK15-190	190	7.5	58	2.3	132	5.2	154	6.1
GSK15-196	196	7.7	60	2.4	136	5.4	160	6.3
GSK15-215	215	8.5	72	2.8	143	5.6	179	7
GSK15-225	225	8.9	76	3	149	5.9	113	4.5
GSK15-235	235	9.3	82	3.2	153	6	199	7.8
GSK15-245	245	9.6	90	3.5	155	6.1	209	8.2
GSK15-246	246	9.7	90	3.5	156	6.1	210	8.3
GSK15-255	255	10	91	3.6	164	6.5	219	8.6
GSK15-275	275	10.8	104	4.1	171	6.7	239	9.4
GSK15-286	286	11.3	85	3.3	201	7.9	250	9.8
GSK15-295	295	11.6	115	4.5	180	7.1	259	10.2
GSK15-305	305	12	112	4.4	193	7.6	269	10.6
GSK15-315	315	12.4	121	4.8	194	7.6	279	11
GSK15-330	330	13	130	5.1	200	7.9	294	11.6
GSK15-355	355	14	135	5.3	220	8.7	319	12.6
GSK15-366	366	14.4	147	5.8	219	8.6	330	13
GSK15-375	375	14.8	150	5.9	225	8.9	339	13.3
GSK15-380	380	15	150	5.9	230	9.1	344	13.5
GSK15-395	395	15.6	155	6.1	240	9.4	359	14.1
GSK15-410	410	16.1	170	6.7	240	9.4	374	14.7
GSK15-430	430	16.9	175	6.9	255	10	394	15.5
GSK15-435	435	17.1	177	7	258	10.2	399	15.7
GSK15-455	455	17.9	192	7.6	263	10.4	419	16.5
GSK15-475	475	18.7	190	7.5	285	11.2	439	17.3
GSK15-490	490	19.3	200	7.9	290	11.4	454	17.9
GSK15-501	501	19.7	215	8.5	286	11.3	465	18.3
GSK15-508	508	20	203	8	305	12	472	18.6
GSK15-515	515	20.3	230	9.1	285	11.2	479	18.9
GSK15-530	530	20.9	220	8.7	310	12.2	494	19.4
GSK15-575	575	22.6	250	9.8	325	12.8	539	21

FORCE RANGE | 50 – 400N (10 – 90 LB)
Extended length is the centre-centre length measured with standard 18mm end fittings. A variety of end fittings are available. Certain end fittings will alter the overall length. We can manufacture any size gas spring in 6×15 up to a maximum stroke of 250mm.

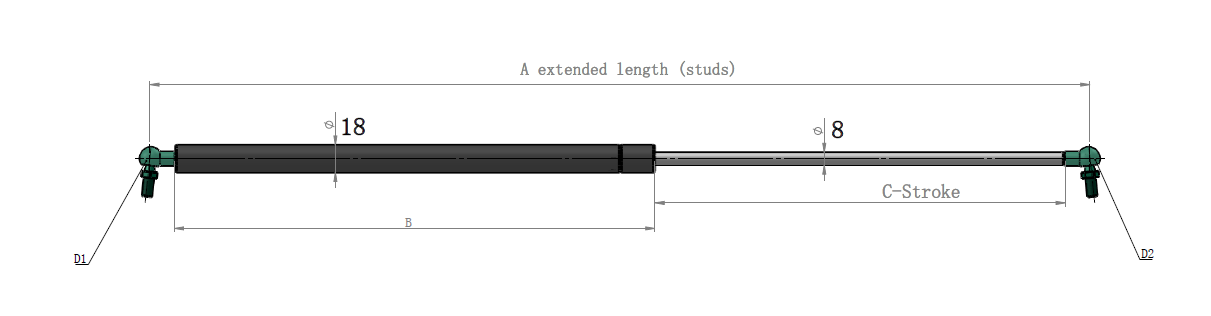

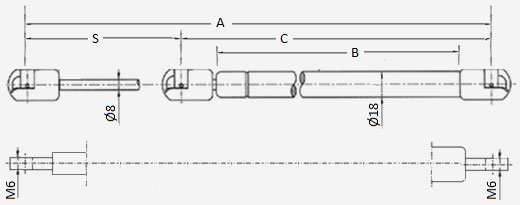

8×18 CARBON STEEL GAS SPRINGS

8/18 SERIES	Extended Length [A]		Stroke [S]		Compressed Length [C]		Shoulder Length [B]
STOCK No.	mm	Inches	mm	Inches	mm	Inches	mm	inches
GSK18-175	175	6.9	50	2	125	4.9	139	5.5
GSK18-178	178	7	50	2	128	5	142	5.6
GSK18-182	182	7.2	50	2	132	5.2	146	5.7
GSK18-190	190	7.5	58	2.3	132	5.2	154	6.1
GSK18-205	205	8.1	60	2.4	145	5.7	169	6.7
GSK18-210	210	8.3	70	2.8	140	5.5	174	6.9
GSK18-215	215	8.5	75	3	140	5.5	179	7
GSK18-230	230	9.1	72	2.8	158	6.2	194	7.6
GSK18-240	240	9.4	80	3.1	160	6.3	204	8
GSK18-245	245	9.6	80	3.1	165	6.5	209	8.2
GSK18-250	250	9.8	85	3.3	165	6.5	214	8.4
GSK18-255	255	10	90	3.5	165	6.5	219	8.6
GSK18-260	260	10.2	94	3.7	166	6.5	224	8.8
GSK18-265	265	10.4	94	3.7	171	6.7	229	9
GSK18-275	275	10.8	100	3.9	175	6.9	239	9.4
GSK18-280	280	11	104	4.1	176	6.9	244	9.6
GSK18-285	285	11.2	105	4.1	180	7.1	249	9.8
GSK18-290	290	11.4	108	4.3	182	7.2	254	10
GSK18-295	295	11.6	108	4.3	187	7.4	259	10.2
GSK18-299	299	11.7	104	4.1	195	7.7	263	10.35
GSK18-303	303	11.92	115	4.5	188	7.4	267	10.5
GSK18-310	310	12.2	118	4.6	192	7.6	274	10.8
GSK18-315	315	12.4	122	4.8	193	7.6	279	11
GSK18-319	319	12.6	125	4.9	194	7.6	283	11.1
GSK18-325	325	12.8	125	4.9	200	7.9	289	11.4
GSK18-330	330	13	130	5.1	200	7.9	294	11.6
GSK18-340	340	13.4	134	5.3	206	8.1	304	12
GSK18-345	345	13.6	129	5.1	216	8.5	309	12.2
GSK18-348	348	13.7	136	5.4	212	8.3	312	12.3
GSK18-355	355	14	135	5.3	220	8.7	319	12.6
GSK18-360	360	14.2	145	5.7	215	8.5	324	12.8
GSK18-375	375	14.8	150	5.9	225	8.9	339	13.3
GSK18-382	382	15	154	6.1	228	9	346	13.6
GSK18-387	387	15.2	154	6.1	233	9.2	351	13.8
GSK18-390	390	15.4	160	6.3	230	9.1	354	13.9
GSK18-395	395	15.6	160	6.3	235	9.3	359	14.1
GSK18-400	400	15.7	165	6.5	235	9.3	364	14.3
GSK18-405	405	15.9	167	6.6	238	9.4	369	14.5
GSK18-410	410	16.1	170	6.7	240	9.4	374	14.7
GSK18-430	430	16.9	175	6.9	255	10	394	15.5
GSK18-437	437	17.2	180	7.1	257	10.1	401	15.8
GSK18-450	450	17.7	182	7.2	268	10.6	414	16.3
GSK18-458	458	18	190	7.5	268	10.6	422	16.6
GSK18-470	470	18.5	192	7.6	278	10.9	434	17.1
GSK18-485	485	19.1	205	8.1	280	11	449	17.7
GSK18-490	490	19.3	200	7.9	290	11.4	454	17.9
GSK18-500	500	19.7	210	8.3	290	11.4	464	18.3
GSK18-500 M8	500	19.7	200	7.9	300	11.8	464	18.3
GSK18-505	505	19.9	205	8.1	300	11.8	469	18.5
GSK18-510	510	20.1	210	8.3	300	11.8	474	18.7
GSK18-520	520	20.5	215	8.5	305	12	484	19.1
GSK18-525	525	20.7	220	8.7	305	12	489	19.3
GSK18-530	530	20.9	220	8.7	310	12.2	494	19.4
GSK18-550	550	21.7	240	9.4	310	12.2	514	20.2
GSK18-560	560	22	220	8.7	340	13.4	524	20.6
GSK18-575	575	22.6	250	9.8	325	12.8	539	21.2
GSK18-585	585	23	250	9.8	335	13.2	549	21.6
GSK18-600	600	23.6	260	10.2	340	13.4	564	22.2
GSK18-610	610	24	270	10.6	340	13.4	574	22.6
GSK18-620	620	24.4	270	10.6	350	13.8	584	23
GSK18-630	630	24.8	280	11	350	13.8	594	23.4
GSK18-640	640	25.2	280	11	360	14.2	604	23.8
GSK18-657	657	25.9	290	11.4	367	14.4	621	24.4
GSK18-668	668	26.3	298	11.7	370	14.6	632	24.9
GSK18-680	680	26.8	302	11.9	378	14.9	644	25.4
GSK18-690	690	27.2	310	12.2	380	15	654	25.7
GSK18-710	710	28	305	12	405	15.9	674	26.5
GSK18-725	725	28.5	315	12.4	410	16.1	689	27.1
GSK18-735	735	28.9	325	12.8	410	16.1	699	27.5
GSK18-750	750	29.5	335	13.2	415	16.3	714	28.1
GSK18-777	777	30.6	340	13.4	437	17.2	741	29.2
GSK18-785	785	30.9	350	13.8	435	17.1	749	29.5
GSK18-805	805	31.7	340	13.4	465	18.3	769	30.3

FORCE RANGE | 50 – 750N (10 – 170 LB)
Extended length is the centre-centre length measured with standard 18mm end fittings. Using other end fittings may alter the overall length. We can manufacture any size gas spring in 8×18 up to a maximum stroke of 385mm.

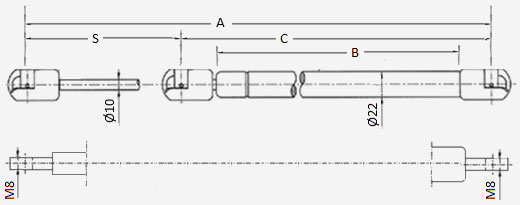

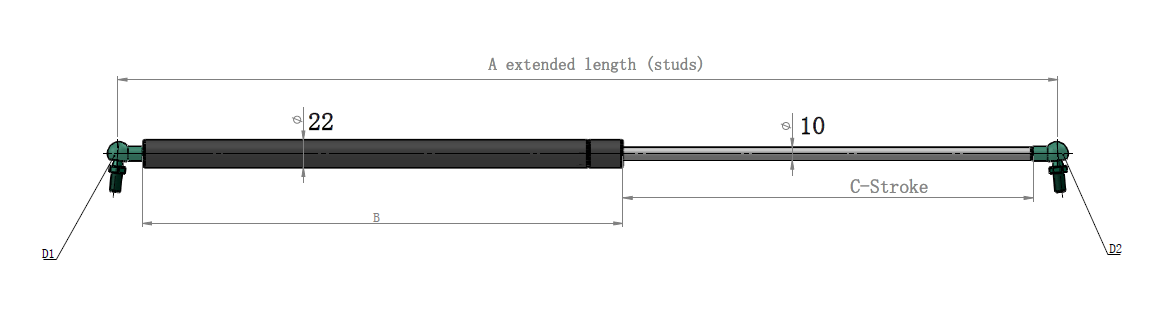

10×22 CARBON STEEL GAS SPRINGS

10/22 SERIES	Extended Length [A]		Stroke [S]		Compressed Length [C]		Extended Shoulder Length – No End Fittings [B]
STOCK No.	mm	Inches	mm	Inches	mm	Inches	mm	inches
GSK22-1030	1030	40.6	475	18.7	555	21.9	990	39
GSK22-1040	1040	40.9	485	19.1	555	21.9	1000	39.4
GSK22-1100	1100	43.3	500	19.7	600	23.6	1060	41.7
GSK22-1237	1237	48.7	500	19.7	737	29	1197	47.1
GSK22-182	182	7.2	52	2	130	5.1	142	5.6
GSK22-190	190	7.5	58	2.3	132	5.2	150	5.9
GSK22-240	240	9.4	85	3.3	155	6.3	200	7.9
GSK22-275	275	10.8	100	3.9	175	6.9	235	9.3
GSK22-305	305	12	115	4.5	190	7.5	265	10.4
GSK22-312	312	12.3	100	3.9	212	8.3	272	10.7
GSK22-315	315	12.4	120	4.7	195	7.7	275	10.8
GSK22-336	336	13.2	130	5.1	206	8.1	296	11.7
GSK22-344	344	13.5	118	4.6	226	8.9	304	12
GSK22-350	350	13.8	137	5.4	213	8.4	310	12.2
GSK22-375	375	14.8	150	5.9	225	8.9	335	13.2
GSK22-690	690	27.2	300	11.8	390	15.4	650	25.6
GSK22-685	685	27	305	12	380	15	645	25.4
GSK22-668	668	26.3	298	11.7	370	14.6	628	24.7
GSK22-665	665	26.2	205	8.1	460	18.1	625	24.6
GSK22-650	650	25.6	285	11.2	365	14.4	610	24
GSK22-640	640	25.2	283	11.1	357	14.1	600	23.6
GSK22-630	630	24.8	275	10.8	355	14	590	23.2
GSK22-610	610	24	270	10.6	340	13.4	570	22.4
GSK22-595	595	23.4	260	10.2	335	13.2	555	21.9
GSK22-585	585	23	255	10	330	13	545	21.5
GSK22-580	580	22.8	180	7.1	400	15.7	540	21.3
GSK22-575 (180)	575	22.6	180	7.1	395	15.6	535	21.1
GSK22-575	575	22.6	250	9.8	325	12.8	535	21.1
GSK22-560 (190)	560	22	190	7.5	370	14.6	520	20.5
GSK22-560	560	22	245	9.6	315	12.4	520	20.5
GSK22-550	550	21.7	235	9.3	315	12.4	510	20.1
GSK22-540	540	21.3	230	9.1	310	12.2	500	19.7
GSK22-530	530	20.9	230	9.1	300	11.8	490	19.3
GSK22-525	525	20.7	225	8.9	300	11.8	485	19.1
GSK22-510	510	20.1	220	8.7	290	11.4	470	18.5
GSK22-505	505	19.9	210	8.3	295	11.6	465	18.3
GSK22-502	502	19.8	200	7.9	302	11.9	462	18.2
GSK22-490	490	19.3	207	8.1	283	11.1	450	17.7
GSK22-485	485	19.1	200	7.9	285	11.2	445	17.5
GSK22-470	470	18.5	197	7.8	273	10.7	430	16.9
GSK22-460	460	18.1	190	7.5	270	10.6	420	16.5
GSK22-450	450	17.7	187	7.4	263	10.4	410	16.1
GSK22-437	437	17.2	155	6.1	282	11.1	397	15.6
GSK22-430	430	16.9	177	7	253	10	390	15.4
GSK22-424 M6	424	16.7	164	6.5	260	10.2	384	15.1
GSK22-422	422	16.6	160	6.3	262	10.3	382	15
GSK22-405	405	15.9	165	6.5	240	9.4	365	14.4
GSK22-395	395	15.6	159	6.3	236	9.3	355	14
GSK22-390	390	15.4	155	6.1	235	9.3	350	13.8
GSK22-375	375	14.8	150	5.9	225	8.9	335	13.2
GSK22-350	350	13.8	137	5.4	213	8.4	310	12.2
GSK22-344	344	13.5	118	4.6	226	8.9	304	12
GSK22-336	336	13.2	130	5.1	206	8.1	296	11.7
GSK22-315	315	12.4	120	4.7	195	7.7	275	10.8
GSK22-312	312	12.3	100	3.9	212	8.3	272	10.7
GSK22-305	305	12	115	4.5	190	7.5	265	10.4
GSK22-275	275	10.8	100	3.9	175	6.9	235	9.3
GSK22-240	240	9.4	85	3.3	155	6.3	200	7.9
GSK22-190	190	7.5	58	2.3	132	5.2	150	5.9
GSK22-182	182	7.2	52	2	130	5.1	142	5.6
GSK22-1237	1237	48.7	500	19.7	737	29	1197	47.1
GSK22-1100	1100	43.3	500	19.7	600	23.6	1060	41.7
GSK22-1040	1040	40.9	485	19.1	555	21.9	1000	39.4
GSK22-1030	1030	40.6	475	18.7	555	21.9	990	39

FORCE RANGE | 90 – 1200N (20 – 270 LB)
Extended length is the centre-centre length measured with standard 20mm end fittings. Using other end fittings may alter the overall length. We can manufacture any size gas spring in 10×22 up to a maximum stroke of 500mm. Please specify force setting requirement when ordering.

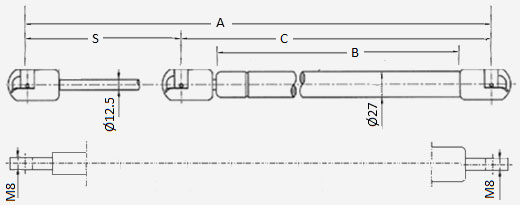

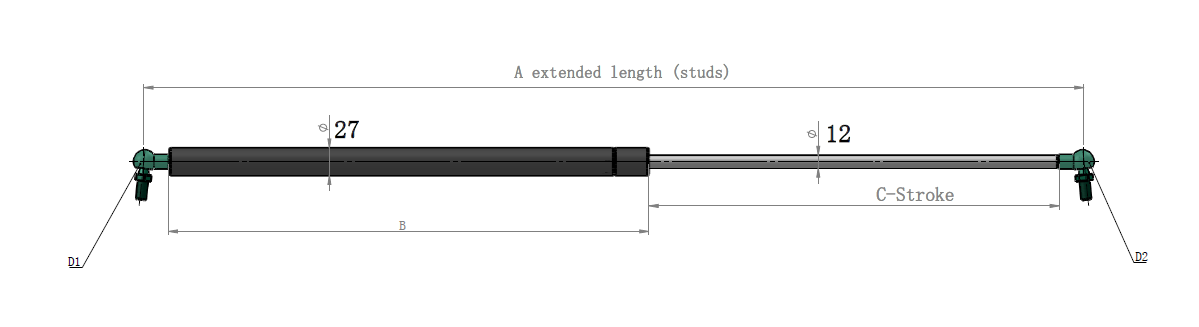

12×27 CARBON STEEL GAS SPRINGS

12.5/27 SERIES	Extended Length [A]		Stroke [S]		Compressed Length [C]		No Ends – Ext Length [B]
STOCK No.	mm	Inches	mm	Inches	mm	Inches	mm	inches
GSK27-1030	1030	40.6	475	18.7	555	21.9	990	39
GSK27-1104	1100	43.3	500	19.7	600	23.6	1060	41.7
GSK27-1104	1104	43.5	500	19.7	604	23.8	1064	41.9
GSK27-1237	1237	48.7	500	19.7	737	29	1197	47.1
GSK27-1300	1300	51.2	610	24	690	27.2	1260	49.6
GSK27-182	182	7.2	52	2	130	5.1	142	5.6
GSK27-305	305	12	115	4.5	190	7.5	265	10.4
GSK27-330	330	13	80	3.1	250	9.8	290	11.4
GSK27-390	390	15.4	155	6.1	235	9.3	350	13.8
GSK27-400	400	15.7	162	6.4	238	9.4	360	14.2
GSK27-430	430	16.9	177	7	253	10	390	15.4
GSK27-490	490	19.3	206	8.1	284	11.2	450	17.7
GSK27-500	500	19.7	200	7.9	300	11.8	460	18.1
GSK27-505	505	19.9	210	8.3	295	11.6	465	18.3
GSK27-525	525	20.7	220	8.7	305	12	485	19.1
GSK27-550	550	21.7	235	9.3	315	12.4	510	20.1
GSK27-585	585	23	255	10	330	13	545	21.5
GSK27-610	610	24	265	10.4	345	13.6	570	22.4
GSK27-650	650	25.6	285	11.2	365	14.4	610	24
GSK27-668	668	26.3	292	11.5	376	14.8	628	24.7
GSK27-688	688	27.1	306	12	382	15	648	25.5
GSK27-700	700	27.6	310	12.2	390	15.4	660	26
GSK27-730	730	28.7	320	12.6	410	16.1	690	27.2
GSK27-830	830	32.7	375	14.8	455	17.9	790	31.1
GSK27-900	900	35.4	410	16.1	490	19.3	860	33.9
GSK27-940	940	37	430	16.9	510	20.1	900	35.4
GSK27/10-620	620	24.4	270	10.6	350	13.8	580	22.8
GSK27/10-650	650	25.6	260	14.2	390	15.35	610	24
GSK27/10-730	730	28.7	200	7.9	530	20.9	690	27.2

FORCE RANGE | 100 – 1700N (20 – 380 LB)
Extended length is the centre-centre length measured with standard 20mm end fittings. Using other end fittings may alter the overall length. We can manufacture any size gas spring in 12.5×27 up to a maximum stroke of 500mm. Please specify force requirement when ordering.

14×28 CARBON STEEL GAS SPRINGS

14/28 SERIES	Extended Length [A]		Stroke [S]		Compressed Length [C]		No Ends – Ext Length [B]
STOCK No.	mm	Inches	mm	Inches	mm	Inches	mm	inches
GSK28-1030	1030	40.6	475	18.7	555	21.9	990	39
GSK28-1100	1100	43.3	500	19.7	600	23.6	1060	41.7
GSK28-1125	1125	44.3	510	20.1	615	24.2	1085	42.7
GSK28-1150	1150	45.3	532		618	24.3	1110	43.7
GSK28-1215	1215	47.8	535	21	680	26.8	1175	46.2
GSK28-1300	1300	51.2	610	24	690	27.2	1260	49.6
GSK28-305	305	12	110	4.3	195	7.7	265	10.4
GSK28-349	349	13.7	125	4.9	224	8.8	309	12.2
GSK28-390	390	15.4	155	6.1	235	9.25	350	13.8
GSK28-405	405	15.9	150	5.9	255	10	365	14.4
GSK28-430	430	16.9	177	7	253	10	390	15.4
GSK28-443	443	17.4	167	6.6	276	10.9	403	15.9
GSK28-500	500	19.7	200	7.9	300	11.8	460	18.1
GSK28-514	514	20.2	194	7.6	320	12.6	474	18.7
GSK28-520	520	20.5	210	8.3	310	12.2	480	18.9
GSK28-533	533	21	220	8.7	313	12.3	493	19.4
GSK28-590	590	23.2	250	9.8	340	13.4	550	21.7
GSK28-700	700	27.6	310	12.2	390	15.4	660	26
GSK28-705	705	27.75	305	12	400	15.75	665	26.2
GSK28-730	730	28.7	320	12.6	410	16.1	690	27.2
GSK28-750	750	29.5	335	13.2	415	16.3	710	28
GSK28-785	785	30.9	350	13.8	435	17.1	745	29.3
GSK28-830	830	32.7	375	14.8	455	17.9	790	31.1
GSK28-900	900	35.4	410	16.1	490	19.3	860	33.9
GSK28-920	920	36.2	400	15.7	520	20.5	880	34.6
GSK28-965	965	38	445	17.5	520	20.5	925	36.4
GSK28-975	975	38.4	445	17.5	530	20.9	935	36.8

FORCE RANGE | 100 – 2500N (20 – 500 LB)
Extended length is the center – center alter the overall length. We can manufacture any size gas spring in 14×28 up to a maximum stroke of 739mm. Please specify force requirement when ordering.

STAINLESS STEEL GAS SPRINGS

We stock some of the finest quality 316 stainless gas springs available.
Stainless steel gas springs are a good options for use in harsh environments, marine, and food processing environments.
We can manufacture stainless springs with food grade internal lubricant.

Force limits apply to long stroke springs — max force is not available in all springs

6×15 STAINLESS STEEL GAS SPRINGS

6/15 Series	Extended Length [A]		Stroke [S]		Compressed Length [C]		Shoulder Length [A-36mm]
STOCK No.	mm	Inches	mm	Inches	mm	Inches	mm	Inches
GSSK15170	170	6.7	50	2	120	4.7	134	5.3
GSSK15178	178	7	48	1.9	130	5.1	142	5.6
GSSK15190	190	7.5	60	2.4	130	5.1	154	6.1
GSSK15195	195	7.7	60	2.4	135	5.3	159	6.3
GSSK15234	234	9.2	82	3.2	152	6	198	7.8
GSSK15255	255	10	90	3.5	165	6.5	219	8.6
GSSK15260	260	10.2	94	3.7	166	6.53	224	8.8
GSSK15275	275	10.8	100	3.9	175	6.9	239	9.4
GSSK15295	295	11.6	115	4.5	180	7.1	259	10.2
GSSK15305	305	12	110	4.3	195	7.7	269	10.6
GSSK15315	315	12.4	122	4.8	193	7.6	279	11
GSSK15375	375	14.8	150	5.9	225	8.9	339	13.3
GSSK15381	381	15	152	6	229	9	345	13.6
GSSK15390	390	15.4	160	6.3	230	9.1	354	13.9
GSSK15435	435	17.1	180	7.1	255	10	399	15.7
GSSK15455	455	17.9	192	7.6	263	10.4	419	16.5
GSSK15465	465	18.3	200	7.9	265	10.4	429	16.9
GSSK15510	510	20.1	220	8.7	290	11.4	474	18.7

FORCE RANGE | 50 – 400N (10 – 90 LB)
Extended length is the centre-centre length measured with standard 18mm end fittings. Using other end fittings may alter the overall length. We can manufacture any size gas spring in 6×15 up to a maximum stroke of 220mm.

8×18 STAINLESS STEEL GAS SPRINGS

8/18 SERIES	Extended Length [A]		Stroke [S]		Compressed Length [C]		Shoulder Length [B]
STOCK No.	mm	Inches	mm	Inches	mm	Inches	mm	inches
GSSK18175	175	6.9	50	1.96	125	4.9	89	3.5
GSSK18190	190	7.5	58	2.3	132	5.2	154	6.1
GSSK18245	245	9.6	80	3.1	165	6.5	209	8.2
GSSK18255	255	10	90	3.5	165	6.5	219	8.6
GSSK18285	285	11.2	105	4.1	180	7.1	249	9.8
GSSK18305	305	12	110	4.3	195	7.7	269	10.6
GSSK18310	310	12.2	119	4.7	191	7.5	274	10.8
GSSK18315	315	12.4	122	4.8	193	7.6	279	11
GSSK18360	360	14.2	145	5.7	215	8.5	179	7
GSSK18375	375	14.8	150	5.9	225	8.9	339	13.3
GSSK18379	379	14.9	154	6.1	225	8.9	343	13.5
GSSK18384	384	15.1	155	6.1	229	9	348	13.7
GSSK18390	390	15.4	160	6.3	230	9.1	354	13.9
GSSK18410	410	16.1	170	6.7	240	9.4	374	14.7
GSSK18430	430	16.9	179	7	251	9.9	394	15.5
GSSK18437	437	17.2	178	7	259	10.2	401	15.8
GSSK18455	455	17.9	192	7.6	263	10.4	419	16.5
GSSK18510	510	20.1	210	8.3	300	11.8	474	18.7
GSSK18525	525	20.7	220	8.7	305	12	489	19.3
GSSK18560	560	22	245	9.6	315	12.4	524	20.6
GSSK18585	585	23	256	10.1	329	13	549	21.6
GSSK18610	610	24	260	10.2	350	13.8	574	22.6
GSSK18640	640	25.2	275	10.8	365	14.4	604	23.8
GSSK18710	710	28	305	12	405	15.9	674	26.5
GSSK18735	735	28.9	325	12.8	410	16.1	699	27.5

FORCE RANGE | 50 – 750N (10 – 170 LB)
Extended length is the centre-centre length measured with standard 18mm end fittings. Using other end fittings may alter the overall length. We can manufacture any size gas spring in 8×18 up to a maximum stroke of 325mm.

10×22 STAINLESS STEEL GAS SPRING

10/22 SERIES	Extended Length [A]		Stroke [S]		Compressed Length [C]		Shoulder Length
10/22 SERIES	Extended Length [A]		Stroke [S]		Compressed Length [C]		End to end no fittings
STOCK No.	mm	Inches	mm	Inches	mm	Inches	mm	inches
GSSK221100	1100	43.3	500	19.7	600	23.6	1060	41.7
GSSK22182	182	7.2	52	2	130	5.1	142	5.6
GSSK22305	305	12	115	4.5	190	7.5	265	10.4
GSSK22350	350	13.8	135	5.3	215	8.5	310	12.2
GSSK22390	390	15.3	155	6	235	9.2	347	13.7
GSSK22410	410	16.1	168	6.6	242	9.5	370	14.6
GSSK22422	422	16.6	160	6.3	262	10.3	382	15
GSSK22437	437	17.2	180	7.1	257	10.1	397	15.6
GSSK22450	450	17.7	160	6.3	290	11.4	410	16.1
GSSK22485	485	19.1	200	7.9	285	11.2	445	17.5
GSSK22502	502	19.8	200	7.9	302	11.9	462	18.2
GSSK22510	510	20.1	220	8.7	290	11.4	470	18.5
GSSK22550	550	21.7	235	9.3	315	12.4	510	20.1
GSSK22575	575	22.6	250	9.8	325	12.8	535	21.1
GSSK22610	610	24	265	10.4	345	13.6	570	22.4
GSSK22660	660	26	290	11.4	370	14.6	620	24.4
GSSK22685	685	27	305	12	380	15	645	25.4
GSSK22710	710	28	305	12	405	15.9	670	26.4
GSSK22750	750	29.5	330	13	420	16.5	710	28
GSSK22785	785	30.9	350	13.8	435	17.1	745	29.3
GSSK22820	820	32.3	360	14.2	460	18.1	780	30.7
GSSK22900	900	35.4	412	16.2	488	19.2	860	33.9

FORCE RANGE | 90 – 1200N (20 – 270 LB)
Extended length is the centre-centre length measured with standard 20mm end fittings. Using other end fittings may alter the overall length. We can manufacture any size gas spring in 10×22 up to a maximum stroke of 412mm.

12×27 STAINLESS STEEL GAS SPRINGS

12.5/27 SERIES	Extended Length [A]		Stroke [S]		Compressed Length [C]		Shoulder Length [B]
STOCK No.	mm	Inches	mm	Inches	mm	Inches	mm	inches
GSSK27/10-181	181	7.1	52	2	129	5.1	141	5.6
GSSK271100	1100	43.3	500	19.7	600	23.6	1060	41.7
GSSK271588	1588	62.5	697	27.4	891	35.1	1548	60.9
GSSK27181-14	181	7.1	52	2	129	5.1	141	5.6
GSSK27182	182	7.2	52	2	130	5.1	142	5.6
GSSK27183	183	7.2	52	2	131	5.2	143	5.6
GSSK27238	238	9.4	86	3.4	152	6	198	7.8
GSSK27500	500	19.7	200	7.9	300	11.8	460	18.1
GSSK27505	505	19.9	210	8.3	295	11.6	465	18.3
GSSK27525	525	20.7	220	8.7	305	12	485	19.1
GSSK27830	830	32.7	375	14.8	455	17.9	790	31.1
GSSK27900	900	35.4	410	16.1	490	19.3	860	33.9
GSSK27992	992	39.1	450	17.7	542	21.3	952	37.5

FORCE RANGE | 100 – 1700N (20 – 380 LB)
Extended length is the centre-centre length measured with standard 20mm end fittings. Using other end fittings may alter the overall length. We can manufacture any size gas spring in 12.5×27 up to a maximum stroke of 737mm.

TENSION GAS SPRINGS

FORCE RANGE | 90 – 900N (20 – 200 LB)
Tension gas springs act in the opposite form as a regular gas spring, by always having a tension ( tendency to shorten) force. Please see end fitting section to view available end fittings. Compressed length is the center – center length measured with standard 20mm end fittings. Using other end fittings may alter the overall length. Other sizes are available. We can custom manufacture other sizes of tension gas springs. May also be available in stainless steel. Tension gas springs DO NOT have end of stroke damping.

WELDED EYELET GAS SPRINGS

All our gas springs feature a double seal system.
Force limits appy to long stroke springs — max force not available in all springs.

6×15 WELDED EYELET GAS SPRINGS

6/15 SERIES	EXTENDED LENGTH [A]		STROKE [S]		COMPRESSED LENGTH [C]		EYELET DIAMETER [D]		EYELET THICKNESS [T]		EYELET OFFSET
STOCK No.	mm	Inches	mm	Inches	mm	Inches	mm	Inches	mm	Inches	mm	Inches
GSK15108A	108	4.3	26	1	82	3.2	6	0.24	3	0.12	0	0
GSK15145A	145	5.7	40	1.6	105	4.1	6	0.24	3	0.12	0	0
GSK15146A	146	5.7	46	1.8	100	3.9	6	0.24	3	0.12	0	0
GSK15166A	166	6.5	47	1.9	119	4.7	6	0.24	3	0.12	0	0
GSK15168A	168	6.6	50	2	118	4.6	10	0.39	3	0.12	0	0
GSK15185A	185	7.3	65	2.6	120	4.7	6	0.24	3	0.12	0	0
GSK15196A	196	7.7	65	2.6	131	5.2	6	0.24	3	0.12	0	0
GSK15220A	220	8.7	72	2.8	148	5.8	8	0.31	3	0.12	0	0
GSK15225A	225	8.9	75	3	150	5.9	6	0.24	3	0.12	0	0
GSK15227A	227	8.9	83	3.3	144	5.7	6	0.24	3	0.12	0	0
GSK15230A	230	9.1	76	3	154	6.1	8	0.31	3	0.12	0	0
GSK15267A	267	10.5	110	4.3	157	6.2	6	0.24	3	0.12	0	0
GSK15270A	270	10.6	90	3.5	180	7.1	6	0.24	3	0.12	0	0
GSK15272A	272	10.7	100	3.9	172	6.8	6	0.24	3	0.12	0	0
GSK15286A	286	11.3	105	4.1	181	7.1	6	0.24	3	0.12	0	0
GSK15305A	305	12	120	4.7	185	7.3	6	0.24	3	0.12	0	0
GSK15359A	359	14.1	135	5.3	224	8.8	9	0.35	3	0.12	2	0.08
GSK15368A	368	14.5	155	6.1	213	8.4	6	0.24	5	0.2	0	0
GSK15430A	430	16.9	190	7.5	240	9.4	6	0.24	3	0.12	0	0

FORCE RANGE | 50 – 400N (10 – 90 LB)
A welded eyelet end is often used to maximize the amount of stroke one can achieve given a specified extended length. Other sizes are available.

8×18 WELDED EYELET GAS SPRINGS

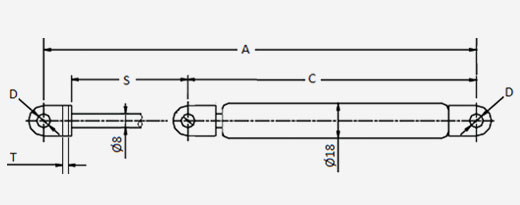

8/18 SERIES	EXTENDED LENGTH [A]		STROKE [S]		COMPRESSED LENGTH [C]		EYELET DIAMETER [D]		EYELET THICKNESS [T]		EYELET OFFSET
STOCK No.	mm	Inches	mm	Inches	mm	Inches	mm	Inches	mm	Inches	mm	Inches
GSK18166A	166	6.5	50	2	116	4.6	10	0.39	3	0.12	0	0
GSK18177A	177	7	52	2	125	4.9	6	0.24	3	0.12	0	0
GSK18205A	205	8.1	67	2.6	138	5.4	8	0.31	5	0.2	0	0
GSK18215A	215	8.5	75	3	140	5.5	8	0.31	5	0.2	0	0
GSK18223A	223	8.8	66	2.6	157	6.2	8	0.31	5	0.2	0	0
GSK18250A	250	9.8	85	3.3	165	6.5	10	0.39	3	0.12	0	0
GSK18252A	252	9.9	80	3.1	172	6.8	10	0.39	3	0.12	0	0
GSK18255A	255	10	90	3.5	165	6.5	8	0.31	5	0.2	0	0
GSK18255A – 3T10H	255	10	90	3.5	165	6.5	10	0.39	3	0.12	0	0
GSK18285A	285	11.2	105	4.1	180	7.1	8	0.31	5	0.2	0	0
GSK18315A	315	12.4	122	4.8	193	7.6	8	0.31	5	0.2	0	0

FORCE RANGE | 50 – 750N (10 – 170 LB)
A welded eyelet end is often used to maximize the amount of stroke one can achieve given a specified extended length. Please call us as other sizes are available upon request.

10×22 WELDED EYELET GAS SPRINGS

10/22 SERIES	EXTENDED LENGTH [A]		STROKE [S]		COMPRESSED LENGTH [C]		EYELET DIAMETER [D]		EYELET THICKNESS [T]		EYELET OFFSET
STOCK No.	mm	Inches	mm	Inches	mm	Inches	mm	Inches	mm	Inches	mm	Inches
GSK22247A	247	9.7	88	3.5	159	6.3	8	0.31	5	0.2	0	0
GSK22365A	365	14.4	125	4.9	240	9.4	10	0.39	5	0.2	5	0.2

FORCE RANGE | 90 – 1200N (20 – 270 LB)
A welded eyelet end is often used to maximize the amount of stroke one can achieve given a specified extended length. Custom sizes are available, give us a call !
